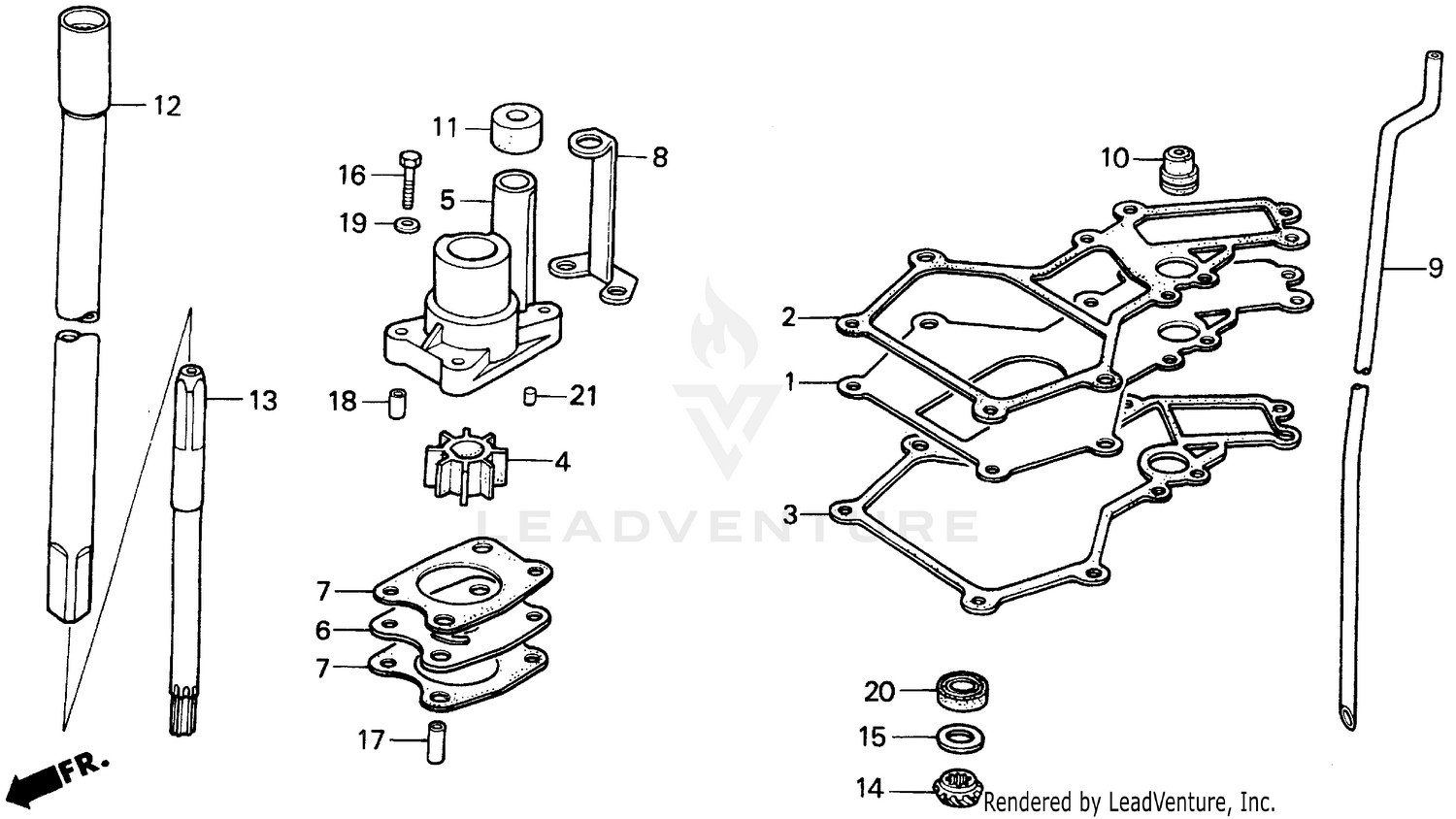

| Ref | Part Number | Description |
|---|
| 1 |
12515-ZV1-010 |
PLATE, EX. CHAMBER Price: $56.76 |
| 2 |
12516-ZV1-850 |
SEE PART DETAILS - PRI; GASKET, EX. CHAMBER (UPPER) Price: $45.28 |
| 3 |
12517-ZV1-850 |
GASKET, EX. CHAMBER (LOWER) Price: $14.76 |
| 4 |
19210-881-A02 |
SEE PART DETAILS - PRI; IMPELLER, PUMP Price: $33.34 |
| 5 |
19220-ZV1-A00 |
SEE PART DETAILS - PRI; HOUSING, IMPELLER Price: $148.90 |
| 6 |
19231-ZV1-000 |
COVER, IMPELLER (NOT AVAILABLE) Price: $8.06 |
| 7 |
19232-ZV1-850 |
SEE PART DETAILS - PRI; GASKET, IMPELLER This part replaces 19232-ZV1-306. Price: $2.90 |
| 9 |
19251-ZV1-701 |
TUBE, WATER (L) Price: $59.20 |
| 10 |
19252-ZVD-000 |
GROMMET, WATER TUBE Price: $5.84 |
| 11 |
19253-ZVD-000 |
RING, WATER TUBE SEAL Price: $3.56 |
| 12 |
41110-ZV1-701 |
SHAFT, VERTICAL (L) Price: $205.22 |
| 13 |
41121-ZVD-000 |
SEE PART DETAILS - PRI; SHAFT, PINION Price: $114.54 |
| 14 |
06400-ZVD-000 |
KIT, GEAR This part replaces 41131-ZV1-000. Price: $180.68 |
| 15 |
41135-ZV1-000 |
WASHER A (1.00MM) Price: $6.34 |
| 15 |
41136-ZV1-000 |
WASHER B (1.05MM) Price: $6.30 |
| 16 |
90108-881-000 |
BOLT, HEX. (6X28) Price: $5.12 |
| 18 |
90112-881-000 |
COLLAR B, DISTANCE Price: $6.80 |
| 19 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
