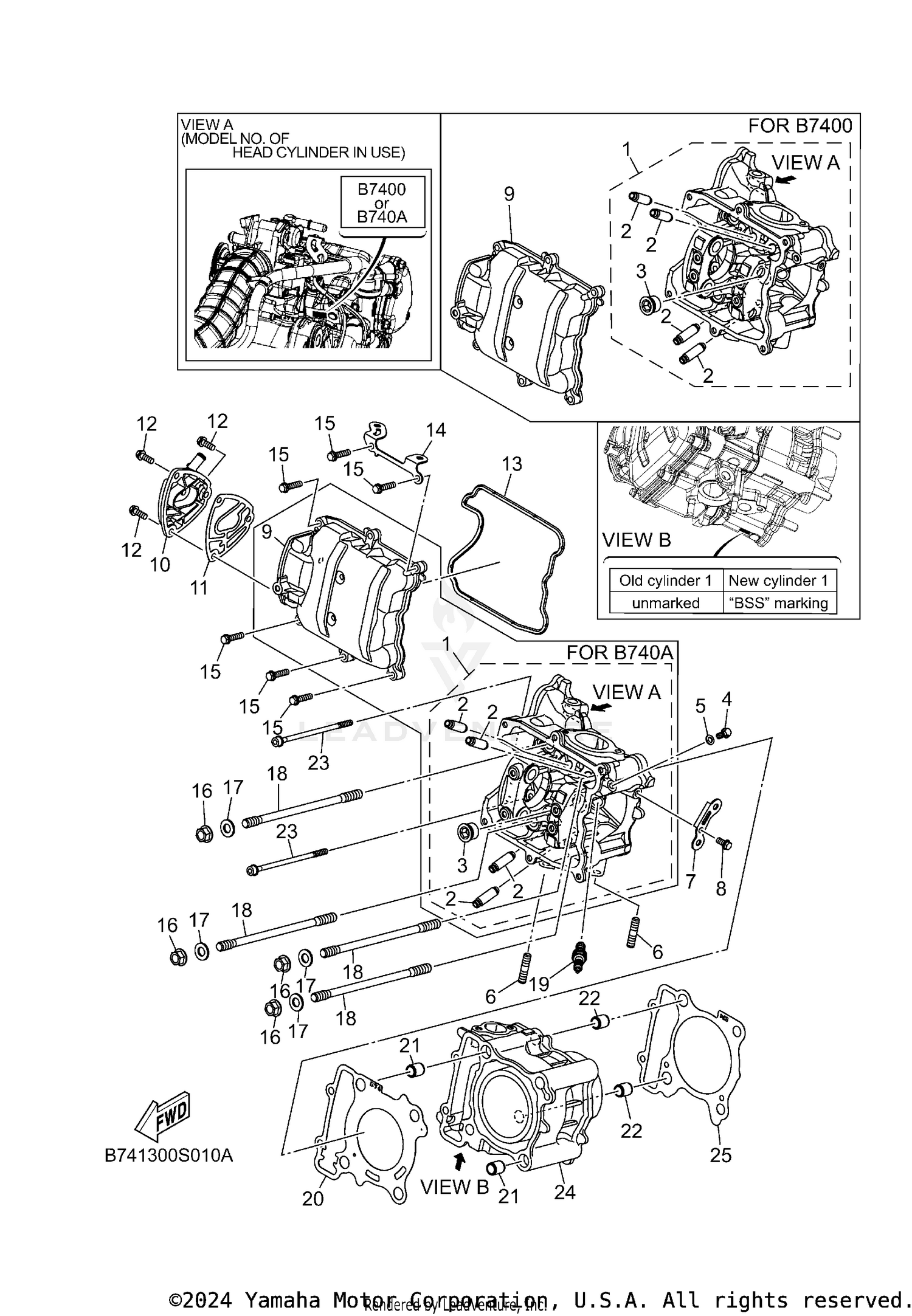

| Ref | Part Number | Description |
|---|
| 2 |
B74-E1133-10-00 |
GUIDE, VALVE 1 Price: $75.99 |
| 3 |
90340-18002-00 |
PLUG, STRAIGHT SCREW Price: $11.49 |
| 4 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 5 |
90430-06014-00 |
GASKET Price: $8.60 |
| 6 |
95612-08620-00 |
BOLT, STUD Price: $8.49 |
| 7 |
B74-E1998-00-00 |
BRACKET 1 Price: $10.49 |
| 8 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 10 |
B74-E1185-00-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $15.99 |
| 11 |
B74-E1169-00-00 |
GASKET, BREATHER COVER Price: $10.49 |
| 12 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 13 |
B74-E1193-00-00 |
GASKET, HEAD COVER 1 Price: $19.49 |
| 14 |
B74-E1999-00-00 |
BRACKET 2 Price: $3.55 |
| 15 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 16 |
90179-10818-00 |
NUT Price: $0.85 |
| 17 |
90201-10849-00 |
WASHER, PLATE Price: $2.35 |
| 18 |
B74-11391-00-00 |
BOLT, STUD 1 Price: $13.49 |
| 19 |
LMA-R8A9S-00-00 |
PLUG, SPARK (NGK LMAR8A-9) Price: $14.99 |
| 20 |
B74-E1181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $22.99 |
| 21 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 22 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 23 |
90110-06868-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.55 |
| 24 |
B74-WE13E-00-00 |
CYLINDER & PISTON RING SET This part replaces B74-E1311-00-00. Price: $121.99 |
