Parts Catalog

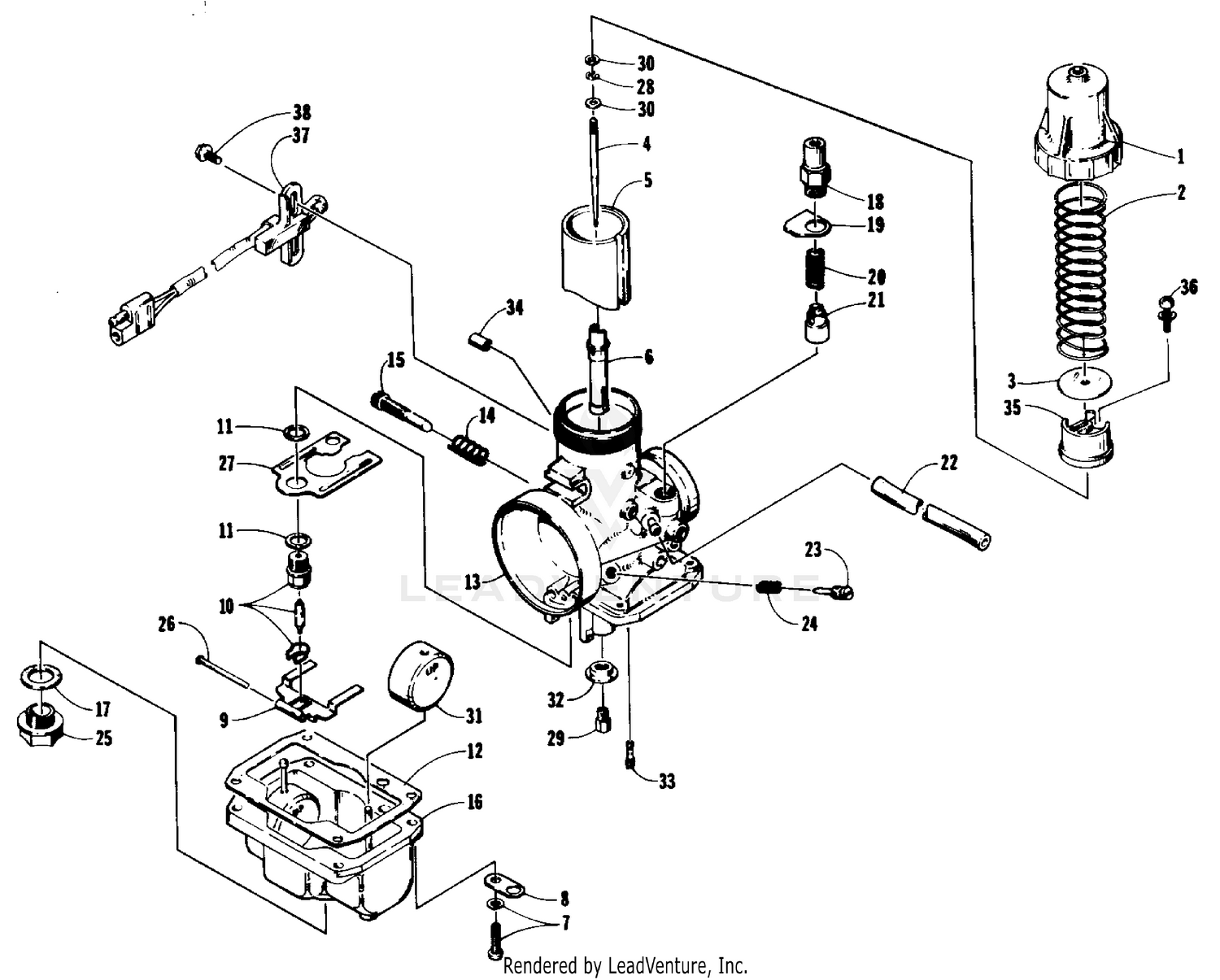

CARBURETOR [60987]

Parts (37)

Ref	Part Number	Description
1	6505-577	Top, Mixing Chamber Price: $51.95
2	6505-091	Spring, Valve Throttle Price: $22.65
3	6505-576	Plate Price: $3.79
4	6505-549	Jet Needle, 7DJ2-3 Price: $35.95
5	6505-575	Piston Valve Assembly (VM-Style) - Slide: 3.5; Carburetor Size (MM): 40 Price: $109.95
6	6505-541	Needle Jet (VM-Style) - Z-5 (224) Price: $22.95
6	6505-604	Needle Jet (VM-Style) - AA-3 (224) Price: $27.95
6	6505-618	Needle Jet (VM-Style) - Z-9 (224) Price: $27.95
7	6505-195	Screw w/Spring Washer Price: $2.17
8	6505-094	Plate, Hose Price: $13.28
10	6505-551	Needle Valve Assembly 1.5 Price: $58.95
11	6505-102	Washer, Valve Seat Price: $1.20
12	6505-197	Gasket, Float Chamber Price: $15.71
14	6505-021	Spring, Throttle Stop Screw Price: $3.75
15	6505-101	Screw, Throttle Stop Price: $8.43
16	6505-553	Chamber, Float Price: $66.95
17	6505-106	Washer, Plug Price: $2.17
18	6505-547	Cap, Starter Plunger Price: $16.92
19	6505-193	Washer Price: $3.38
20	6505-033	Spring, Starter Plunger Price: $19.35
21	6505-035	Plunger, Starter Price: $19.35
22	6505-280	Tube, Air Vent Price: $8.43
23	6505-019	Screw, Pilot Air Price: $13.28
24	6505-020	Spring, Pilot Air Screw Price: $3.75
25	6505-105	Plug, Drain Price: $8.95
26	6505-153	Pin Price: $3.38
27	6505-202	Plate, Baffle Price: $2.49
28	6505-628	E-Clip Price: $4.11
29	6505-124	Main Jet 400 Price: $8.43
30	6505-552	Washer Price: $1.32
31	6505-049	Float Price: $35.95
32	6505-098	Ring, Main Jet Price: $24.20
33	6505-262	Pilot Jet 50 Price: $4.48
34	6505-569	Cap Price: $18.13
35	0770-043	Block, Magnet Price: $36.95
36	6505-559	Screw, Machine Price: $0.49
37	0630-008	Switch, Magnetic Carburetor - Assembly Price: $52.95
