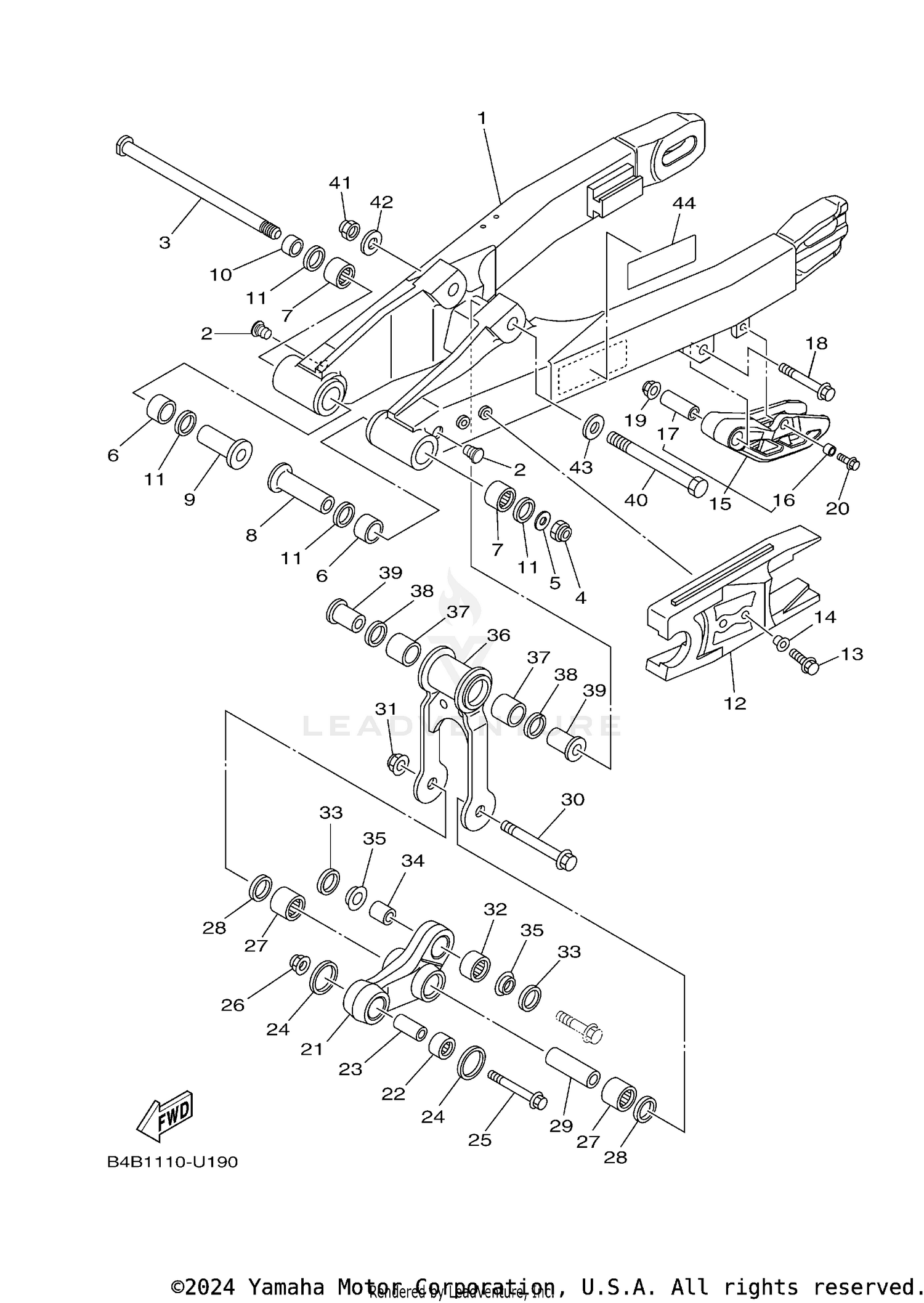

| Ref | Part Number | Description |
|---|
| 1 |
B4B-22110-00-00 |
REAR ARM COMP. Price: $817.99 |
| 2 |
90338-10150-00 |
PLUG Price: $8.49 |
| 3 |
BR8-22141-00-00 |
SHAFT, PIVOT Price: $28.99 |
| 4 |
95612-12100-00 |
NUT, U Price: $6.49 |
| 5 |
90201-12032-00 |
WASHER, PLATE Price: $8.49 |
| 6 |
90385-17042-00 |
BUSH Price: $23.99 |
| 7 |
93317-21746-00 |
BEARING Price: $37.99 |
| 8 |
90387-127J8-00 |
COLLAR Price: $38.99 |
| 9 |
90387-127J7-00 |
COLLAR Price: $33.99 |
| 10 |
90387-1200U-00 |
COLLAR Price: $19.49 |
| 11 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 12 |
5PA-22151-00-00 |
SEAL, GUARD Price: $102.99 |
| 13 |
95E32-06014-00 |
BOLT, FLANGE DEEP RE Price: $0.45 |
| 14 |
90387-06180-00 |
COLLAR Price: $6.49 |
| 15 |
BR8-22199-00-00 |
SUPPORT, CHAIN Price: $60.99 |
| 16 |
90387-06207-00 |
COLLAR Price: $8.49 |
| 17 |
90387-09002-00 |
COLLAR Price: $5.49 |
| 18 |
95E32-08055-00 |
BOLT, FLANGE DEEP RECESS Price: $1.75 |
| 19 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 20 |
95D02-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 21 |
B4B-2217A-00-00 |
ARM, RELAY Price: $152.99 |
| 22 |
93315-31759-00 |
BEARING Price: $42.99 |
| 23 |
90387-10116-00 |
COLLAR Price: $16.49 |
| 24 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 25 |
90105-10582-00 |
BOLT, FLANGE Price: $22.99 |
| 26 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 27 |
93317-31771-00 |
BEARING Price: $39.99 |
| 28 |
93101-17062-00 |
OIL SEAL Price: $16.49 |
| 29 |
90380-12219-00 |
BUSH, SOLID Price: $31.99 |
| 30 |
90109-12015-00 |
BOLT Price: $10.49 |
| 31 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 32 |
5PA-22176-00-00 |
BEARING Price: $37.99 |
| 33 |
5PA-22475-00-00 |
SEAL, DUST Price: $14.49 |
| 34 |
5PA-22184-00-00 |
BUSH Price: $15.49 |
| 35 |
5PA-22253-00-00 |
COLLAR, DISTANCE Price: $10.99 |
| 36 |
4ES-2217F-00-00 |
ROD, CONNECTING 1 Price: $120.99 |
| 37 |
93317-31771-00 |
BEARING Price: $39.99 |
| 38 |
93101-17062-00 |
OIL SEAL Price: $16.49 |
| 39 |
90381-12091-00 |
BUSH, SOLID Price: $24.99 |
| 40 |
90101-12755-00 |
BOLT Price: $17.49 |
| 41 |
90185-12011-00 |
NUT, SELF-LOCKING Price: $10.49 |
| 42 |
90201-12047-00 |
WASHER, PLATE Price: $9.49 |
| 43 |
90201-12049-00 |
WASHER, PLATE Price: $6.49 |
