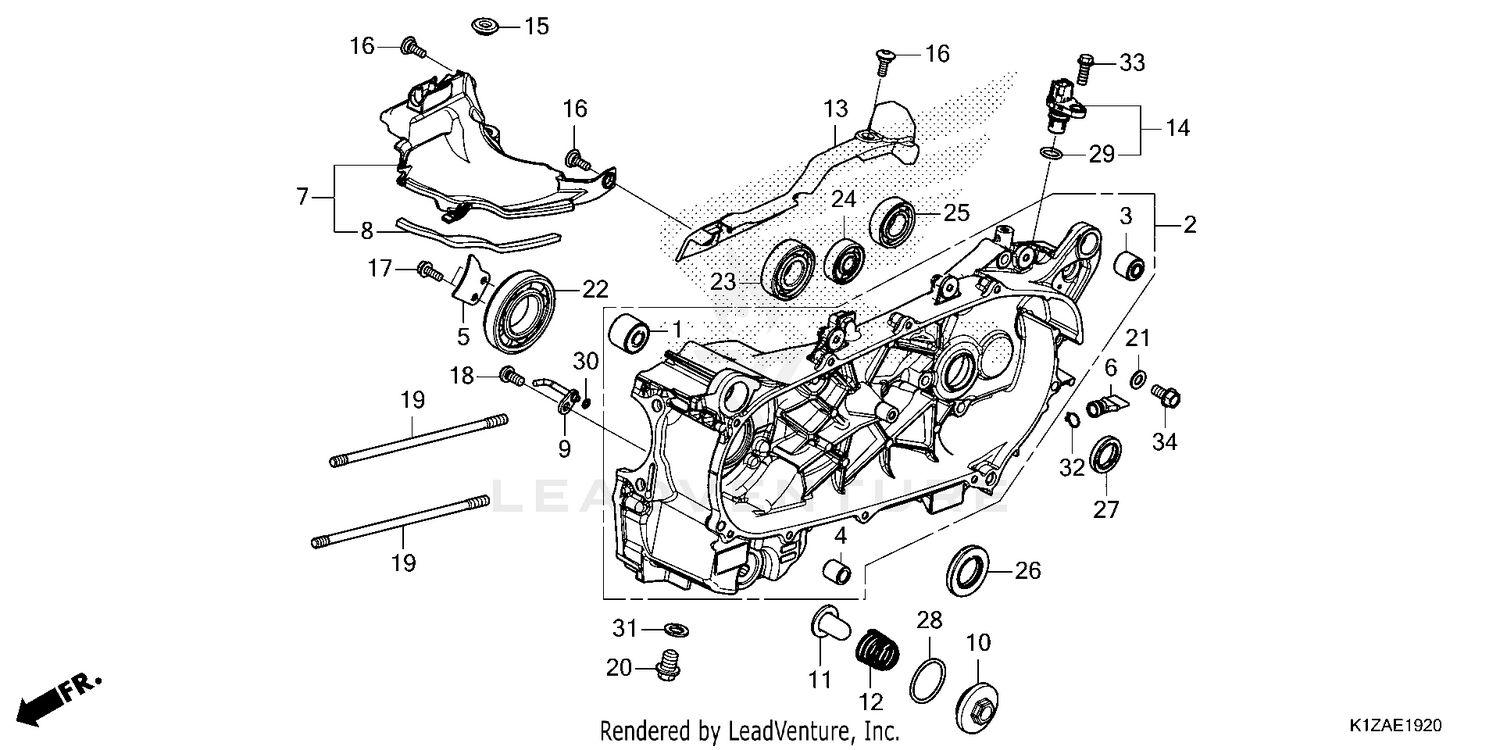

| Ref | Part Number | Description |
|---|
| 1 |
11103-K0J-N00 |
BUSH, ENGINE HANGER RUBBER Price: $9.45 |
| 2 |
11200-K2S-N00 |
CRANKCASE COMP, L. Price: $108.75 |
| 3 |
11203-K35-J00 |
BUSH, RR. CUSHION RUBBER (LOWER) Price: $2.67 |
| 4 |
11205-GBC-300 |
BUSH, MAIN STAND Price: $1.33 |
| 5 |
11208-K40-F00 |
PLATE, L. CRANKSHAFT BEARING SETTING Price: $0.96 |
| 6 |
11343-KVG-900 |
TUBE, DRAIN Price: $1.60 |
| 7 |
11410-K1N-V00 |
COVER ASSY., ENGINE TOP Price: $3.02 |
| 8 |
11412-K1N-V00 |
SEAL, ENGINE TOP COVER Price: $1.05 |
| 9 |
15201-K0R-V00 |
JET, PISTON Price: $6.40 |
| 10 |
15411-K0R-V00 |
COVER, OIL FILTER Price: $2.18 |
| 11 |
15421-K0R-V00 |
SCREEN, OIL FILTER Price: $1.00 |
| 12 |
15426-K0R-V00 |
SPRING, OIL FILTER SCREEN Price: $0.51 |
| 13 |
32112-K1N-V00 |
PROTECTOR, SPEED SENSOR Price: $1.51 |
| 14 |
37700-K0J-N01 |
SENSOR ASSY., SPEED (NIPPON SEIKI) Price: $6.71 |
| 15 |
83551-376-000 |
GROMMET, SIDE COVER Price: $3.62 |
| 16 |
90001-KWR-000 |
BOLT, SOCKET (6X18) Price: $0.65 |
| 17 |
95701-06016-08 |
BOLT, FLANGE (6X16) This part replaces 90003-883-000. Price: $1.52 |
| 18 |
90003-K0J-N00 |
BOLT, SPECIAL (6X12) Price: $0.25 |
| 19 |
90032-K0R-V00 |
BOLT B, STUD (8X213.2) Price: $1.56 |
| 20 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 21 |
90495-MN5-000 |
WASHER, SEALING (8MM) Price: $4.47 |
| 22 |
91002-K1N-V01 |
BEARING, RADIAL BALL (35X72X15) Price: $22.64 |
| 23 |
91003-KZR-602 |
BEARING, RADIAL BALL (6204) (FUJIKOSHI) Price: $11.96 |
| 24 |
91005-K2S-N01 |
BRG (6301) Price: $3.76 |
| 25 |
91016-K1Z-J11 |
BEARING, RADIAL BALL (6004) (NTN) Price: $5.84 |
| 26 |
91202-K97-T01 |
OIL, SEAL (26X45X6) Price: $2.78 |
| 27 |
91203-K50-T01 |
OIL SEAL (20X32X6) Price: $1.67 |
| 28 |
91303-K0R-V01 |
O-RING (31.2X2.4) Price: $0.25 |
| 29 |
91303-K0J-N01 |
O-RING (11.4X2.1) Price: $4.20 |
| 30 |
91305-K0J-N00 |
O-RING (3.8X1.4) Price: $0.25 |
| 31 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 32 |
95002-80000 |
CLIP, TUBE (C12) Price: $0.53 |
| 33 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
