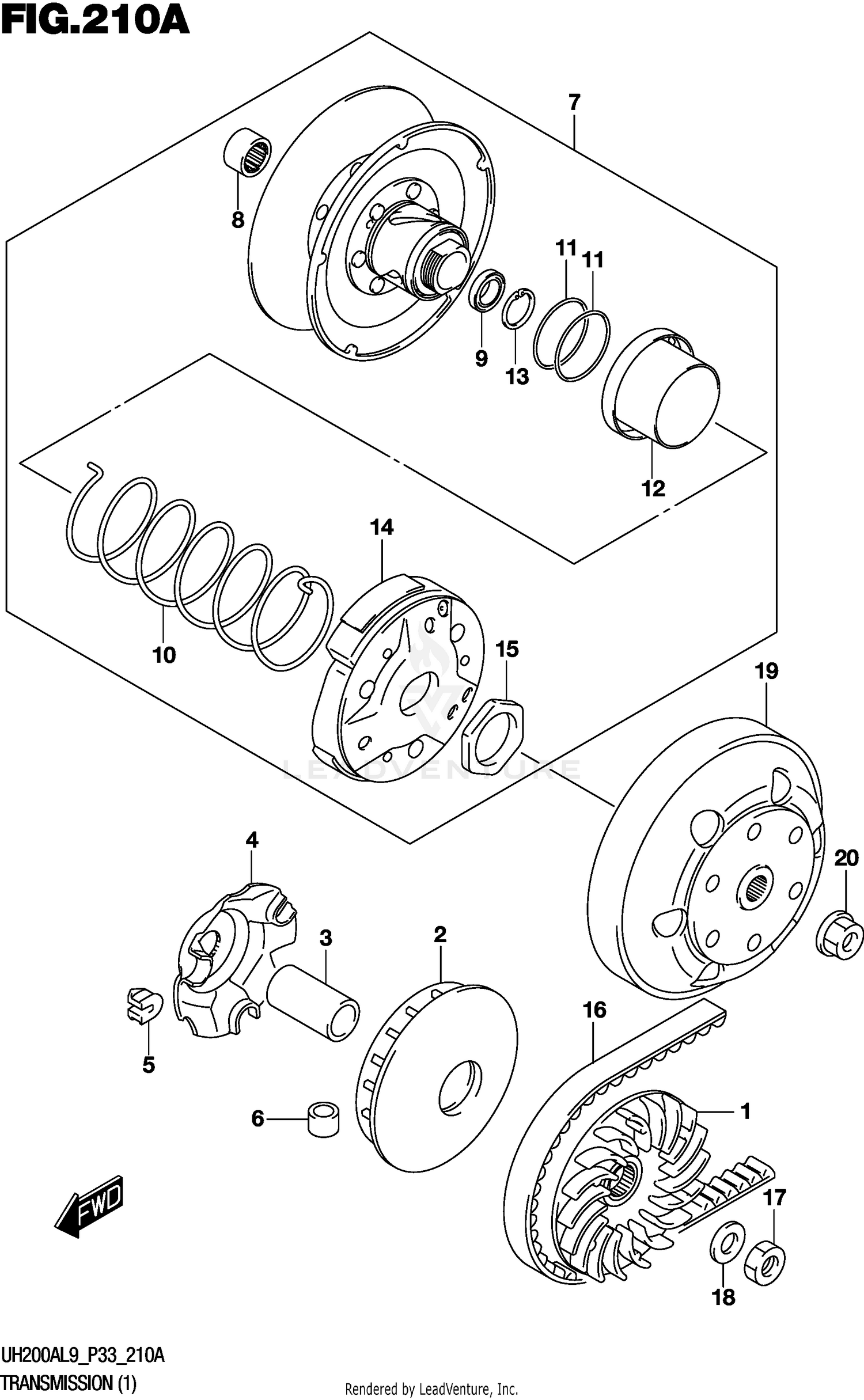

TRANSMISSION (1)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 21110-03H00 | FACE, FIXED DRIVE Price: $87.90 |
| 2 | 21120-03H20 | FACE, MOVABLE DRIVE Price: $108.74 |
| 3 | 21125-03H00 | SPACER, MOVABLE DRIVE Price: $22.23 |
| 4 | 21431-03H00 | PLATE, MOVABLE DRIVE Price: $19.56 |
| 5 | 21481-03H00 | DAMPER, MOVABLE DRIVE PLATE Price: $7.08 |
| 6 | 21650-03H60 | ROLLER, MOVABLE DRIVE Price: $15.11 |
| 7 | 21200-03H50 | FACE, FIXED DRIVEN Price: $520.18 |
| 9 | 09262-15063 | BEARING This part replaces 09262-15053. Price: $34.67 |
| 16 | 27601-03H60 | V BELT Price: $198.35 |
| 17 | 09140-16005 | NUT This part replaces 09140-16001. Price: $3.95 |
| 18 | 09164-16005 | WASHER Price: $2.58 |
| 19 | 21220-03H51 | HOUSING,CLUTCH Price: $121.96 |
