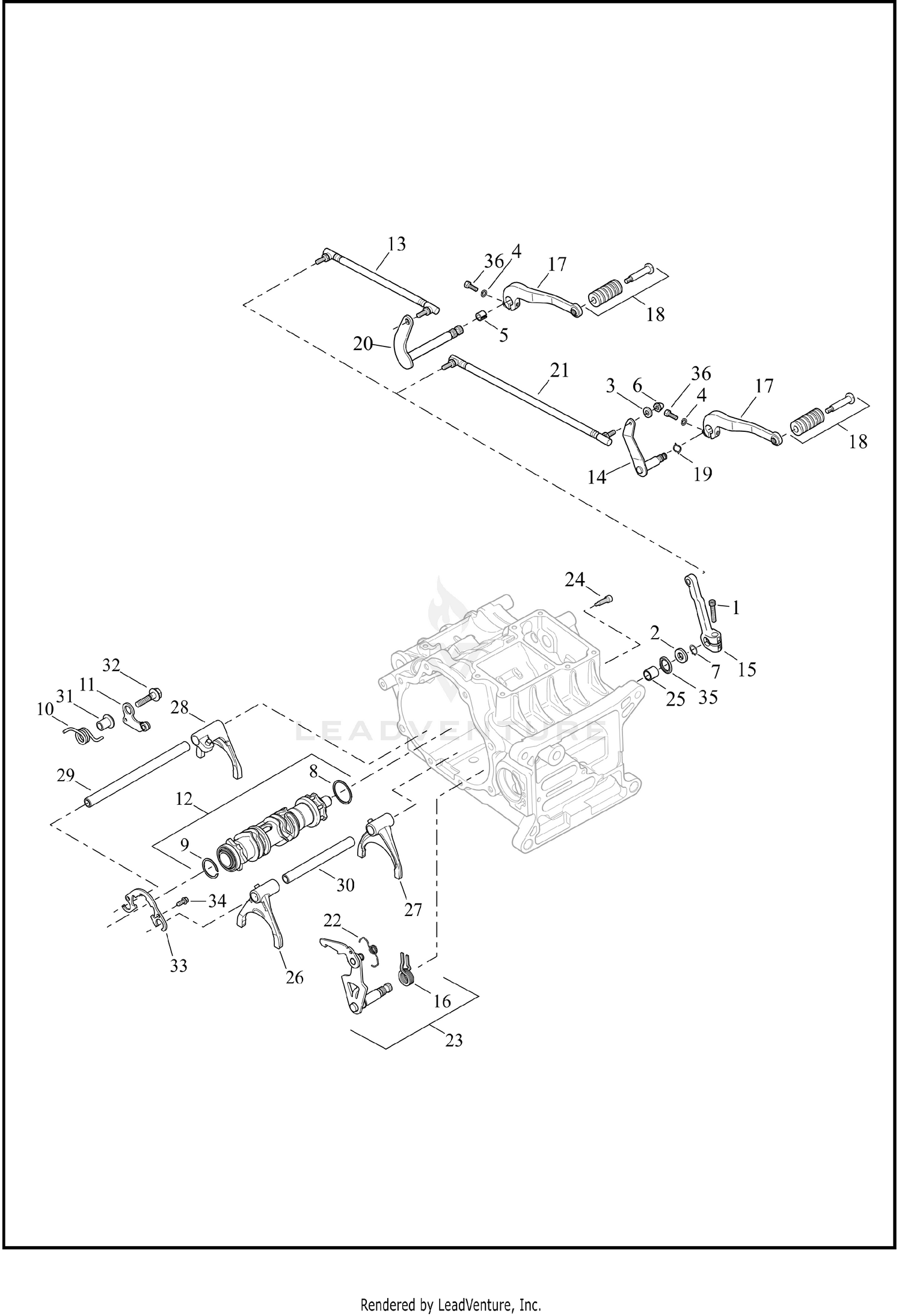

| Ref | Part Number | Description |
|---|
| 1 |
856A |
SCREW,HEX SCKT HD CAP Price: $1.22 |
| 2 |
6497HW |
WASHER,FERROUS,HEAT TREATED Price: $1.82 |
| 4 |
7041 |
LOCKWASHER,REGULAR Price: $0.59 |
| 7 |
11150 |
RING,RETG,EXTERNAL Price: $0.59 |
| 18 |
34611-65A |
KIT-SHIFTER PEG Price: $12.00 |
| 25 |
35186-06A |
INT SHFTR MECH CMPNT,SLEEVE,PIVOT SHAFT This part replaces 35186-06. Price: $2.43 |
| 31 |
35243-06 |
SLEEVE,DETENT ARM Not Available Price: |
| 32 |
35244-06 |
SCREW,HEX FLANGE,SPECIAL Price: $1.22 |
| 34 |
35259-06 |
SCREW,HEX FLANGE Price: $1.22 |
| 35 |
11000101A |
SEAL,RDL SHFT,SHAFT This part replaces 11000101. Price: $6.11 |
