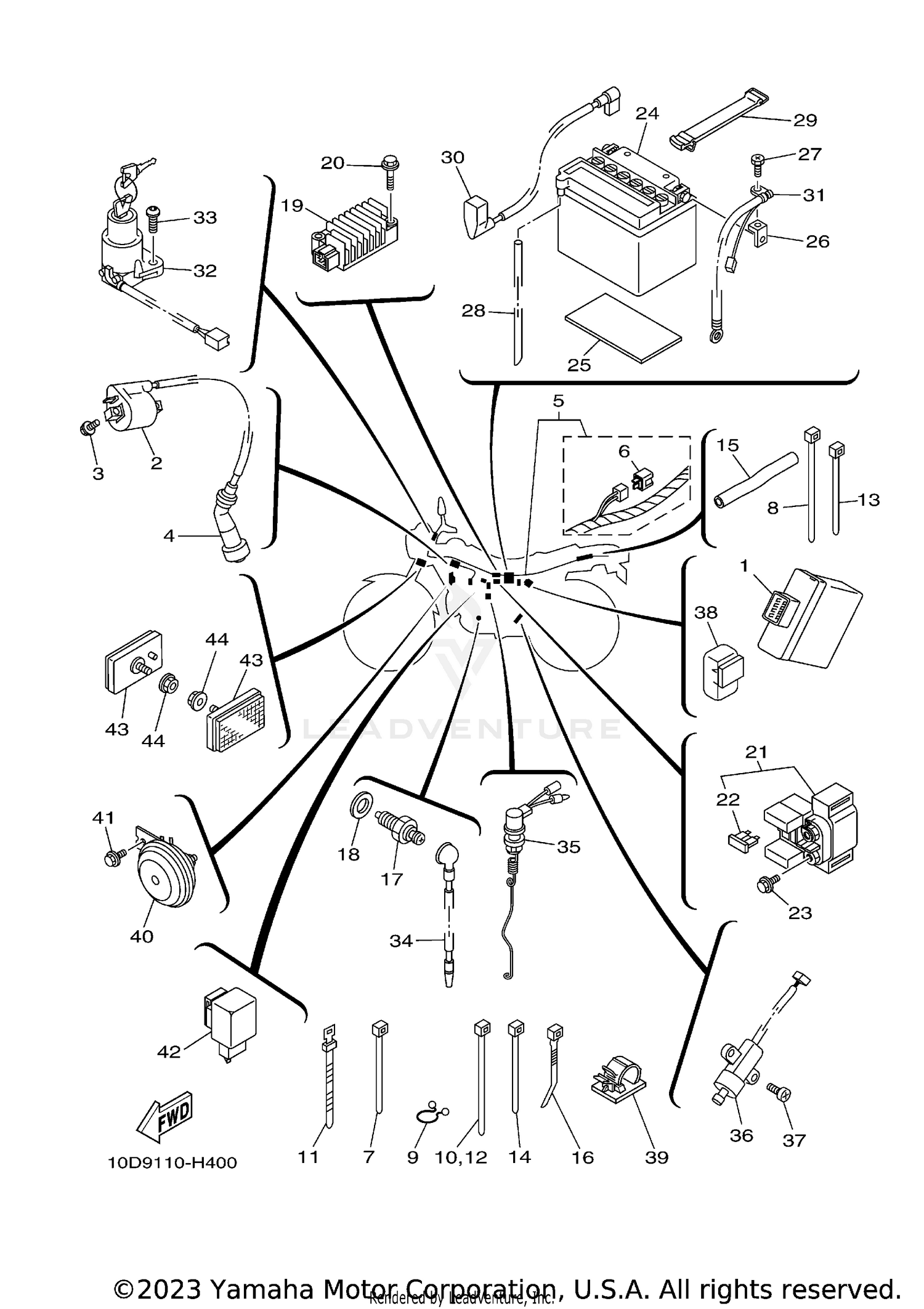

| Ref | Part Number | Description |
|---|
| 1 |
5LB-85540-03-00 |
C.D.I. UNIT ASSY This part replaces 5LB-85540-02-00. Price: $201.99 |
| 2 |
3RW-82310-11-00 |
IGNITION COIL ASSY Price: $44.99 |
| 3 |
90105-06696-00 |
BOLT, FLANGE This part replaces 95027-06016-00. Price: $10.49 |
| 4 |
3NS-82370-00-00 |
PLUG CAP ASSY This part replaces 1UY-82370-20-00. Price: $41.99 |
| 5 |
5FY-82590-20-00 |
WIRE HARNESS ASSY Price: $264.99 |
| 6 |
3WP-81980-00-00 |
DIODE ASSY Price: $24.99 |
| 7 |
5Y9-12491-00-00 |
CLAMP 1 Price: $7.49 |
| 8 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 9 |
90464-25267-00 |
CLAMP This part replaces 341-82594-00-00. Price: $8.49 |
| 10 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 11 |
25G-83936-01-00 |
BAND, SWITCH CORD Price: $5.49 |
| 12 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 13 |
5Y9-12491-00-00 |
CLAMP 1 Price: $7.49 |
| 14 |
5Y9-12491-00-00 |
CLAMP 1 Price: $7.49 |
| 15 |
90446-15381-00 |
HOSE(4CS) This part replaces 90446-15377-00. Price: $2.25 |
| 16 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 17 |
4GY-82540-10-00 |
NEUTRAL SWITCH ASSY Price: $41.99 |
| 18 |
90430-10148-00 |
GASKET Price: $5.99 |
| 19 |
3TJ-81960-02-00 |
RECTIFIER & REGULATOR ASSY Price: $184.99 |
| 20 |
95027-06025-00 |
BOLT, FLANGE Price: $4.16 |
| 21 |
5EK-81940-02-00 |
STARTER RELAY ASSY (RC19-022) Price: $128.99 |
| 22 |
2GV-82151-00-00 |
FUSE (20A-BL) This part replaces 2GH-82151-00-00. Price: $5.99 |
| 23 |
95027-06008-00 |
BOLT, FLANGE Price: $7.99 |
| 24 |
YB7-CA000-00-00 |
YB7CA YUASA BATTERY This part replaces B75-82110-00-00. Price: $92.99 |
| 25 |
51Y-82122-00-00 |
SEAT, BATTERY Price: $8.49 |
| 26 |
5LB-8215C-00-00 |
TERMINAL Price: $14.49 |
| 27 |
90153-06001-00 |
SCREW, HEXAGON Price: $9.49 |
| 28 |
90445-084J0-00 |
PIPE This part replaces 90445-082F3-00. Price: $20.99 |
| 29 |
7H3-82131-00-00 |
BAND, BATTERY This part replaces 18G-82131-00-00. Price: $18.99 |
| 30 |
5LB-82115-00-00 |
WIRE, PLUS LEAD Price: $47.99 |
| 31 |
5EK-82116-02-00 |
WIRE, MINUS LEAD Price: $24.99 |
| 32 |
5LB-82501-01-00 |
MAIN SWITCH STEERING LOCK Price: $194.99 |
| 33 |
90149-06228-00 |
SCREW Price: $10.49 |
| 34 |
5VC-82541-10-00 |
WIRE, LEAD Price: $17.99 |
| 35 |
5VC-82530-01-00 |
STOP SWITCH ASSY This part replaces 5VC-82530-00-00. Price: $30.99 |
| 36 |
3LD-82566-61-00 |
SWITCH, SIDE STAND This part replaces 3LD-82566-60-00. Price: $56.99 |
| 37 |
98507-05016-00 |
SCREW, PAN HEAD This part replaces 90157-05008-00. Price: $1.80 |
| 38 |
29U-81950-93-00 |
RELAY ASSY (ACA12115-1) Price: $84.99 |
| 39 |
90464-13004-00 |
CLAMP Price: $6.49 |
| 40 |
5LB-83371-11-00 |
HORN Price: $49.99 |
| 41 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95807-06012-00. Price: $1.95 |
| 42 |
4MY-83350-03-00 |
FLASHER RELAY ASSY This part replaces 4MY-83350-02-00. Price: $56.99 |
| 43 |
23V-85110-00-00 |
REFLECTOR ASSY This part replaces 20G-85110-00-00. Price: $30.99 |
