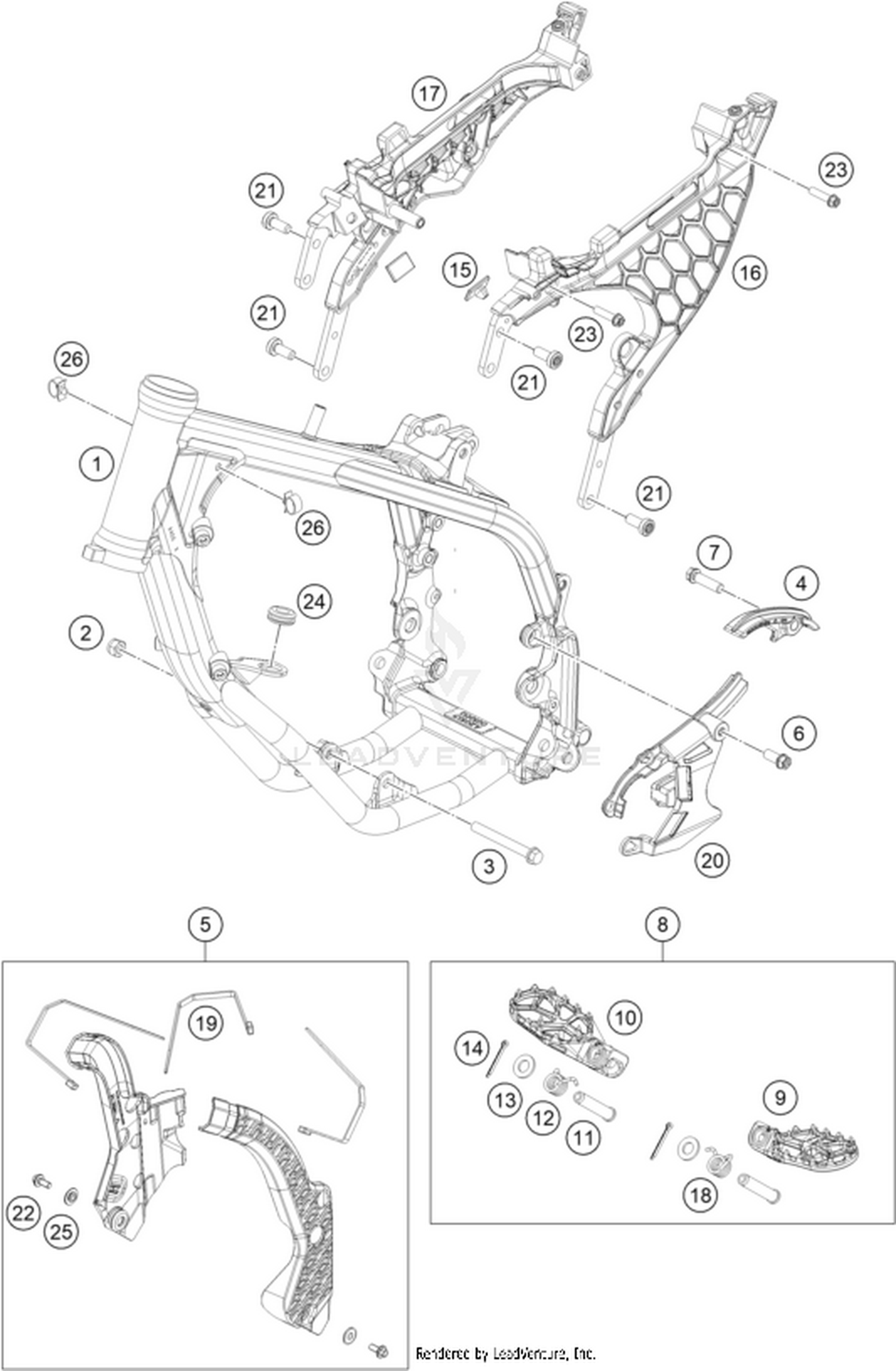

03 FRAME
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A20103001000EB | Frame Price: Call Us |
| 3 | 01665080856 | Hex screw EN 1665-M8x85-10.9 Price: Call Us |
| 4 | 45303053000 | Chain slider bottom Price: Call Us |
| 5 | A40003094000C1 | Frame protection set This part replaces A40003094000. Price: Call Us |
| 6 | 0025060126 | HH collar screw M6x12 TX30 Price: Call Us |
| 7 | 0025080356 | HH collar screw M8x35 TX40 Price: Call Us |
| 8 | A40003037033 | Footpeg set Price: Call Us |
| 9 | A40003040000 | Footpeg left Price: Call Us |
| 10 | A40003041000 | Footpeg right Price: Call Us |
| 11 | 54803044000 | PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 12 | A46003045000 | Footrest spring right Price: Call Us |
| 14 | 0094032250 | PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 15 | 77307040041 | Isolation pad Price: Call Us |
| 16 | A40003002010 | Subframe left Price: Call Us |
| 17 | A40003002020 | Subframe right Price: Call Us |
| 18 | A46003044000 | Footrest spring left Price: Call Us |
| 19 | 44011076200 | CABLE TIE 200/3,6MM BLACK Price: Call Us |
| 20 | A20103096000 | Front sprocket cover Price: Call Us |
| 21 | 0035080206S | SHCS M8x20 TX45 Price: Call Us |
| 22 | 0014050123 | HH COLLAR SCREW M 5X12 WS=6 Price: Call Us |
| 23 | 0025060256 | HH collar screw M6x25 TX30 Price: Call Us |
| 24 | 41001052000 | RUBBER SLEEVE D=12MM Price: Call Us |
| 25 | 54803092060 | Bush f. frame protection 03 Price: Call Us |
