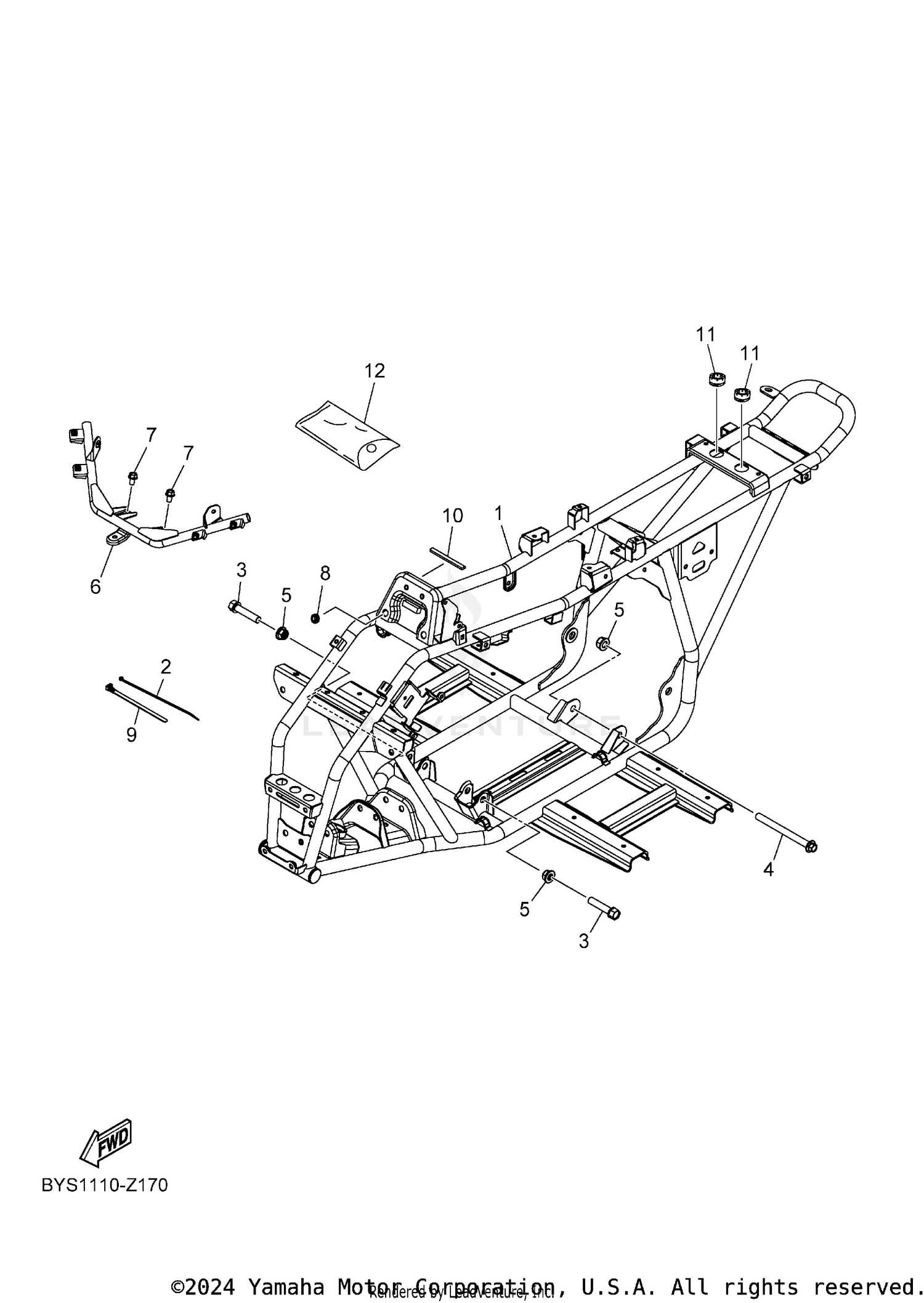

FRAME
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BYS-F1110-00-00 | FRAME COMP. Price: $1,650.99 |
| 2 | BD3-F1646-00-00 | BAND Price: $1.85 |
| 3 | BYS-F6332-00-00 | BOLT Price: $8.99 |
| 4 | BYS-F4178-00-00 | BOLT 3 Price: $22.99 |
| 5 | BYS-F1839-00-00 | NUT Price: $13.99 |
| 6 | BD3-F1513-00-00 | STAY, FENDER 1 Price: $188.99 |
| 7 | BD3-F4176-10-00 | BOLT 1 Price: $10.49 |
| 8 | BD3-F1719-00-00 | GROMMET Price: $2.40 |
| 9 | BW4-F1647-00-00 | BAND Price: $2.70 |
| 10 | BW4-F476U-00-00 | PROTECTOR 1 Price: $2.65 |
| 11 | BD3-F113B-00-00 | DAMPER Price: $9.49 |
