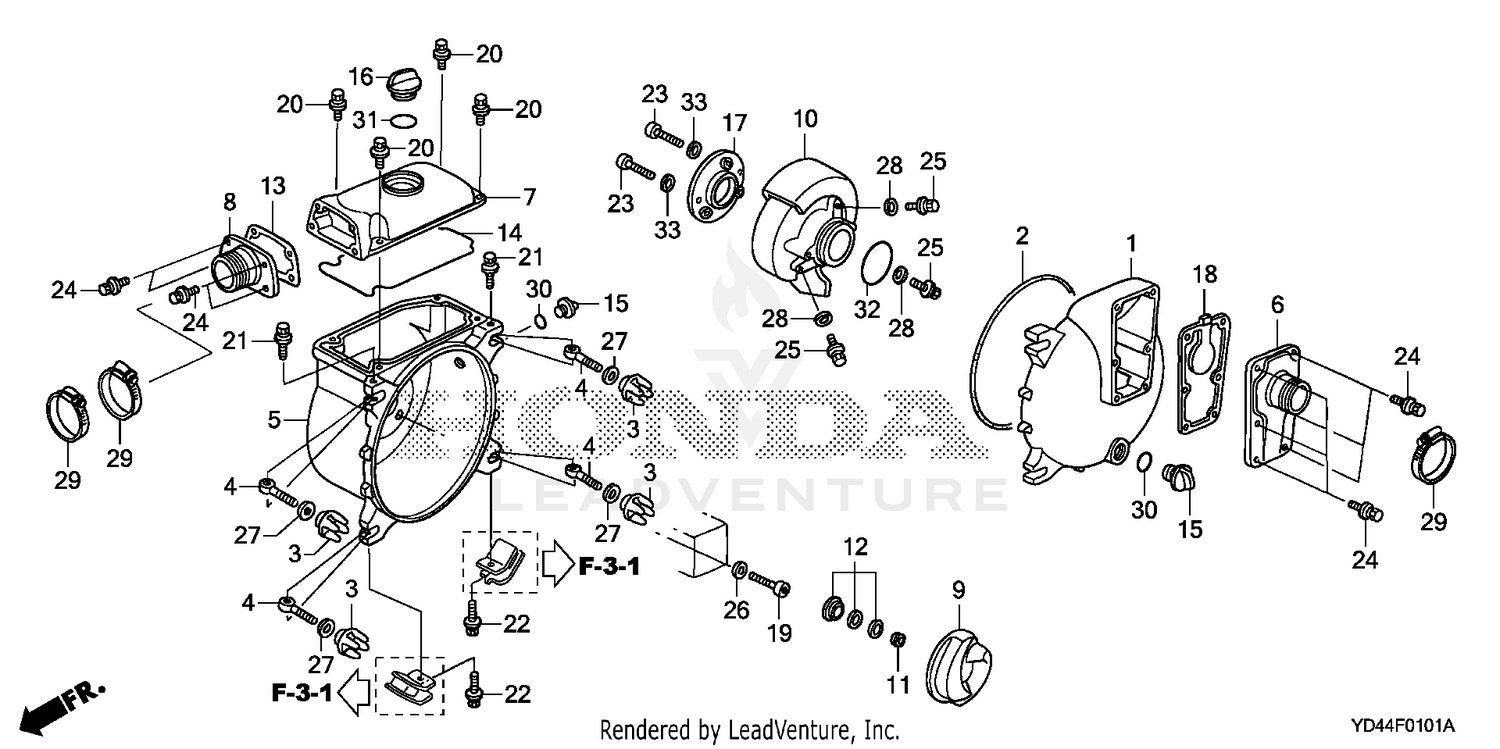

| Ref | Part Number | Description |
|---|
| 1 |
63511-YG2-013 |
COVER, FR. Price: $302.20 |
| 2 |
63512-YG0-003 |
GASKET, FR. COVER Price: $10.00 |
| 3 |
63523-YG0-003 |
KNOB, FR. COVER Price: $19.86 |
| 4 |
63524-YG0-003 |
BOLT, FR. COVER SETTING Price: $10.38 |
| 5 |
78101-YG2-023 |
CASING Price: $247.78 |
| 6 |
78103-YG2-013 |
INLET Price: $188.42 |
| 7 |
78104-YG2-003 |
OUTLET Price: $57.40 |
| 8 |
78105-YG2-003 |
OUTLET Price: $149.52 |
| 9 |
78106-YG2-003 |
IMPELLER Price: $793.28 |
| 11 |
78122-YG2-003 |
WASHER, SHIM Price: $2.74 |
| 12 |
78130-YG1-003 |
SEAL ASSY., MECHANICAL Price: $184.82 |
| 13 |
78136-YG2-003 |
GASKET, OUTLET Price: $17.04 |
| 14 |
78137-YG0-003 |
GASKET, HEAD Price: $6.98 |
| 15 |
78184-YG0-003 |
CAP, PLUG (32MM) Price: $5.32 |
| 16 |
78187-YG0-003 |
CAP, PLUG (40MM) Price: $10.38 |
| 17 |
78194-YG2-013 |
SEE PART DETAILS - PRI; PLATE, WEAR Price: $51.72 |
| 18 |
78313-YG2-003 |
GASKET, HOSE COUPLING Price: $18.00 |
| 19 |
90110-YG2-003 |
BOLT, SOCKET (8X50) Price: $2.66 |
| 20 |
90102-YG0-003 |
BOLT-WASHER (10X30) Price: $2.56 |
| 21 |
90103-YG0-003 |
BOLT-WASHER (12X45) Price: $3.06 |
| 22 |
90103-YG2-003 |
BOLT-WASHER (12X50) Price: $2.56 |
| 23 |
90101-YG1-811 |
SEE PART DETAILS - PRI; BOLT, SOCKET (8X35) Price: $5.06 |
| 24 |
90108-YG2-003 |
BOLT-WASHER (12X35) Price: $2.56 |
| 25 |
90109-YG2-003 |
BOLT-WASHER (6X20) Price: $2.56 |
| 26 |
90504-YG0-003 |
WASHER (8MM) (AL.) Price: $2.74 |
| 27 |
90502-YG0-003 |
WASHER, PLAIN Price: $2.74 |
| 28 |
90503-YG2-003 |
WASHER, PLAIN (6MM) Price: $2.74 |
| 29 |
90601-YG2-003 |
BAND Price: $13.54 |
| 30 |
91351-YG0-003 |
O-RING (32MM) Price: $2.24 |
| 31 |
91352-YG0-003 |
O-RING (40MM) Price: $2.24 |
| 32 |
91353-YG2-003 |
O-RING Price: $6.46 |
