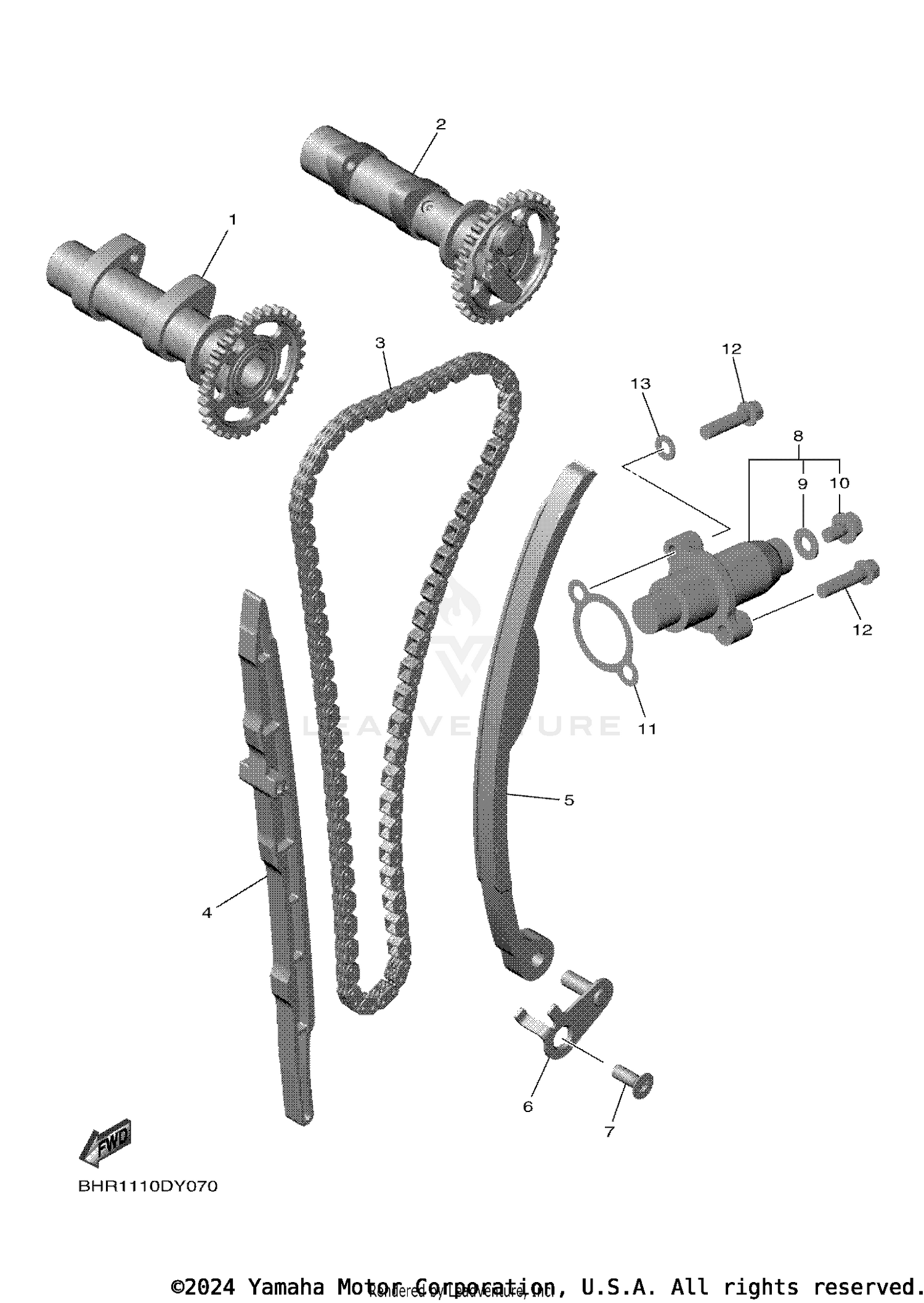

CAMSHAFT & CHAIN
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BHR-12170-00-00 | CAMSHAFT ASSY 1 Price: $363.99 |
| 2 | BHR-12180-00-00 | CAMSHAFT ASSY 2 Price: $374.99 |
| 3 | 94591-79118-00 | CHAIN Price: $51.99 |
| 4 | B2W-12251-00-00 | DAMPER, CHAIN 1 Price: $22.99 |
| 5 | 33D-12252-01-00 | DAMPER, CHAIN 2 Price: $136.99 |
| 6 | 1SL-12233-00-00 | PLATE, GUIDE STOPPER 1 Price: $35.99 |
| 7 | 90151-06023-00 | SCREW, COUNTERSUNK This part replaces 90151-06024-00. Price: $9.49 |
| 8 | B7B-12210-11-00 | TENSIONER ASSY, CAM CHAIN This part replaces B7B-12210-10-00. Price: $155.99 |
| 9 | 5SL-12214-00-00 | GASKET Price: $8.49 |
| 10 | 5EL-12228-00-00 | BOLT Price: $3.50 |
| 11 | 4FM-12213-00-00 | GASKET, TENSIONER CASE Price: $9.49 |
| 12 | 95E32-06025-00 | BOLT, FLANGE DEEP RECESS Price: $0.50 |
