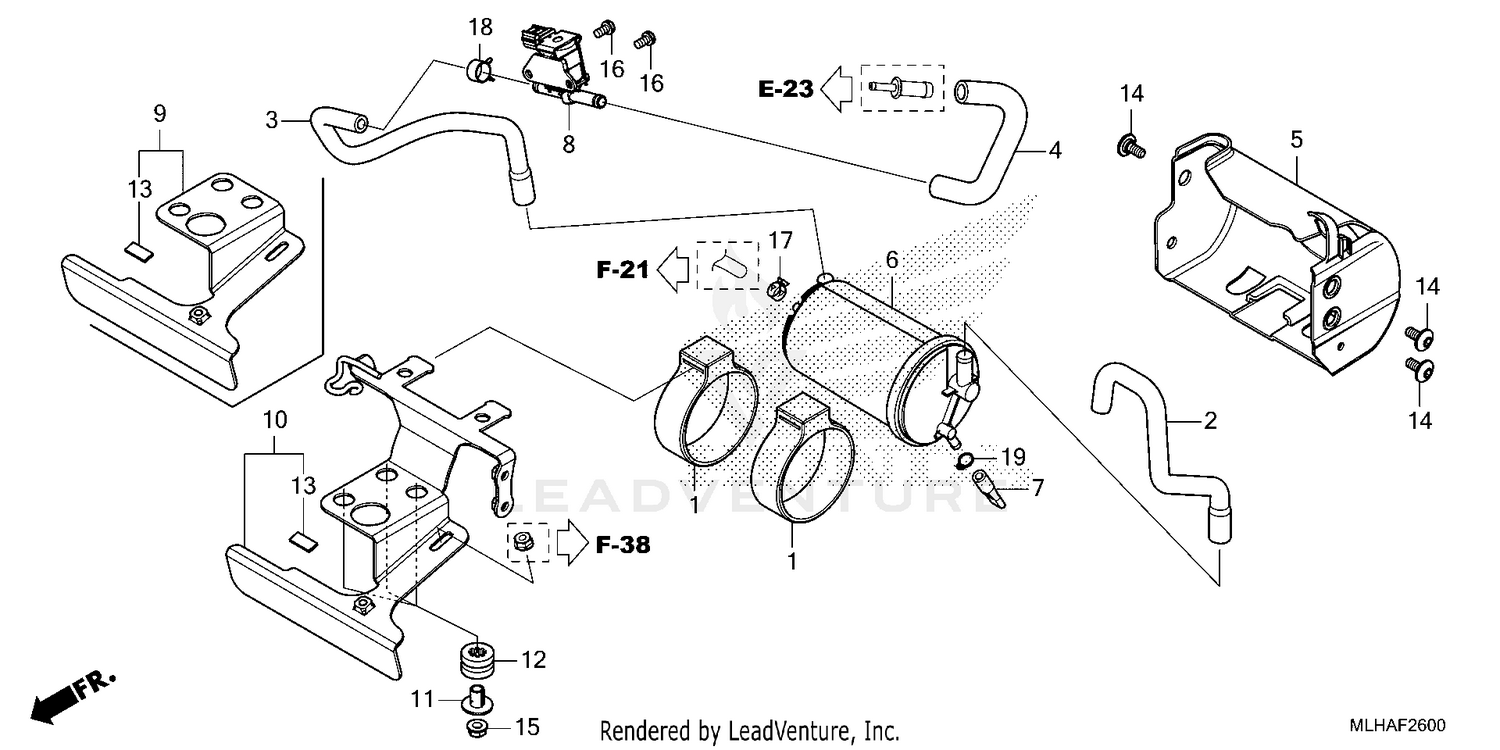

| Ref | Part Number | Description |
|---|
| 1 |
17411-KPP-930 |
RUBBER, CANISTER MOUNTING Price: $4.25 |
| 2 |
17413-K87-A00 |
TUBE, AIR Price: $8.04 |
| 3 |
17414-K87-L50 |
TUBE, PURGE (PCSV-CANISTER) Price: $11.02 |
| 4 |
17415-K87-L00 |
TUBE, PURGE CONTROL VALVE JOINT Price: $5.76 |
| 5 |
17421-K87-L00 |
COVER A, CANISTER Price: $30.16 |
| 6 |
17421-KYJ-902 |
CANISTER Price: $100.33 |
| 7 |
17431-K87-L00 |
TUBE, DRAIN Price: $2.11 |
| 8 |
36162-K2Y-J01 |
VALVE, PUR CONT SOL Price: $38.89 |
| 10 |
50347-K87-L30 |
STAY, REGULATE RECTIFIER Price: $31.62 |
| 11 |
61104-428-730 |
COLLAR, FR. FENDER (BLACK) (FOR RR.) Price: $5.27 |
| 12 |
61304-415-000 |
RUBBER, HEADLIGHT CASE MOUNTING Price: $4.35 |
| 13 |
81257-KWC-900 |
RUBBER, PROTECTOR Price: $1.27 |
| 14 |
90111-K87-A00 |
SCREW, SPECIAL (6X14) Price: $1.05 |
| 15 |
90301-MG3-000 |
NUT, U (6MM) Price: $8.69 |
| 16 |
93892-05010-08 |
SCREW-WASHER (5X10) Price: $1.20 |
| 17 |
95002-40800-08 |
CLAMP, TUBE (D8) Price: $2.35 |
| 18 |
95002-41200-08 |
CLAMP, TUBE (D12) Price: $2.65 |
