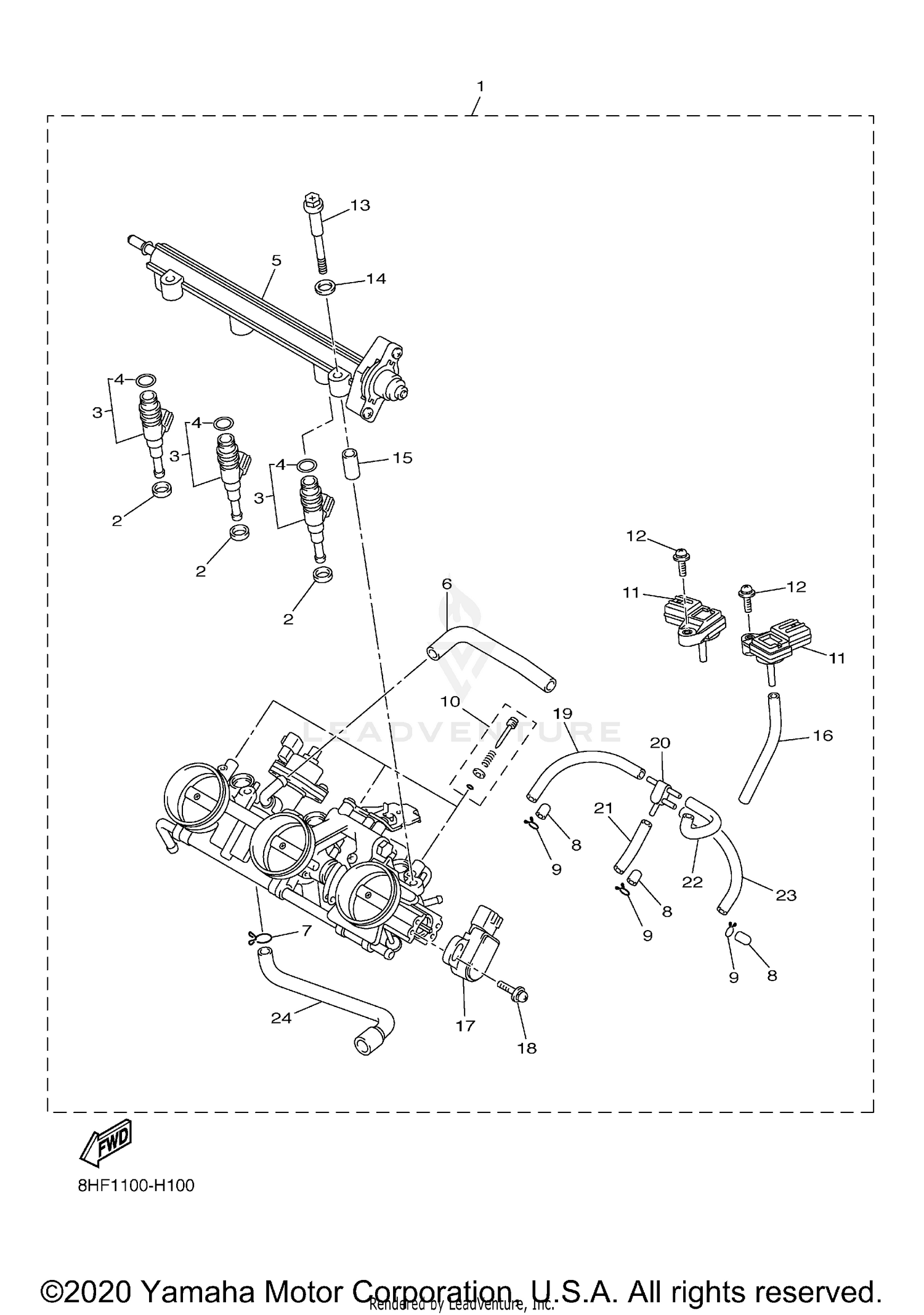

INTAKE 2
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8JA-13750-00-00 | THROTTLE BODY ASSY Price: $1,561.99 |
| 2 | 8FP-13556-00-00 | RUBBER, INJECTOR Price: $15.49 |
| 3 | 8GC-13761-00-00 | INJECTOR Price: $278.99 |
| 4 | 8GC-13769-00-00 | O-RING Price: $18.49 |
| 5 | 8HF-13930-00-00 | PIPE INLET ASSEMBLY Price: $312.99 |
| 6 | 8GL-13895-00-00 | HOSE, AIR Price: $32.99 |
| 7 | 90467-150A2-00 | CLIP Price: $8.49 |
| 8 | 895-14169-00-00 | CAP Price: $5.99 |
| 9 | 8A7-14139-00-00 | CLIP, PIPE Price: $9.49 |
| 10 | 8GL-14503-00-00 | ADJUST SCREW SET Price: $16.49 |
| 11 | 1WS-82380-00-00 | SENSOR, PRESSURE This part replaces 2C0-82380-00-00. Price: $209.99 |
| 12 | 2C0-14216-00-00 | SCREW Price: $4.20 |
| 13 | 8GL-13573-00-00 | BOLT 1 Price: $16.49 |
| 14 | 8GL-13571-00-00 | WASHER Price: $4.40 |
| 15 | 8GL-14534-00-00 | COLLAR Price: $10.49 |
| 16 | 5PW-14349-00-00 | PIPE Price: $12.99 |
| 18 | 8CC-14216-10-00 | SCREW Price: $8.99 |
| 19 | 5JW-14987-00-00 | HOSE Price: $17.99 |
| 20 | 5PW-1410F-00-00 | CONNECTOR Price: $21.99 |
| 21 | 8FP-14349-30-00 | PIPE Price: $6.49 |
| 22 | 8HF-13892-00-00 | HOSE, AIR 2 Price: $47.99 |
| 23 | 8GL-13893-00-00 | HOSE, AIR 3 Price: $8.49 |
