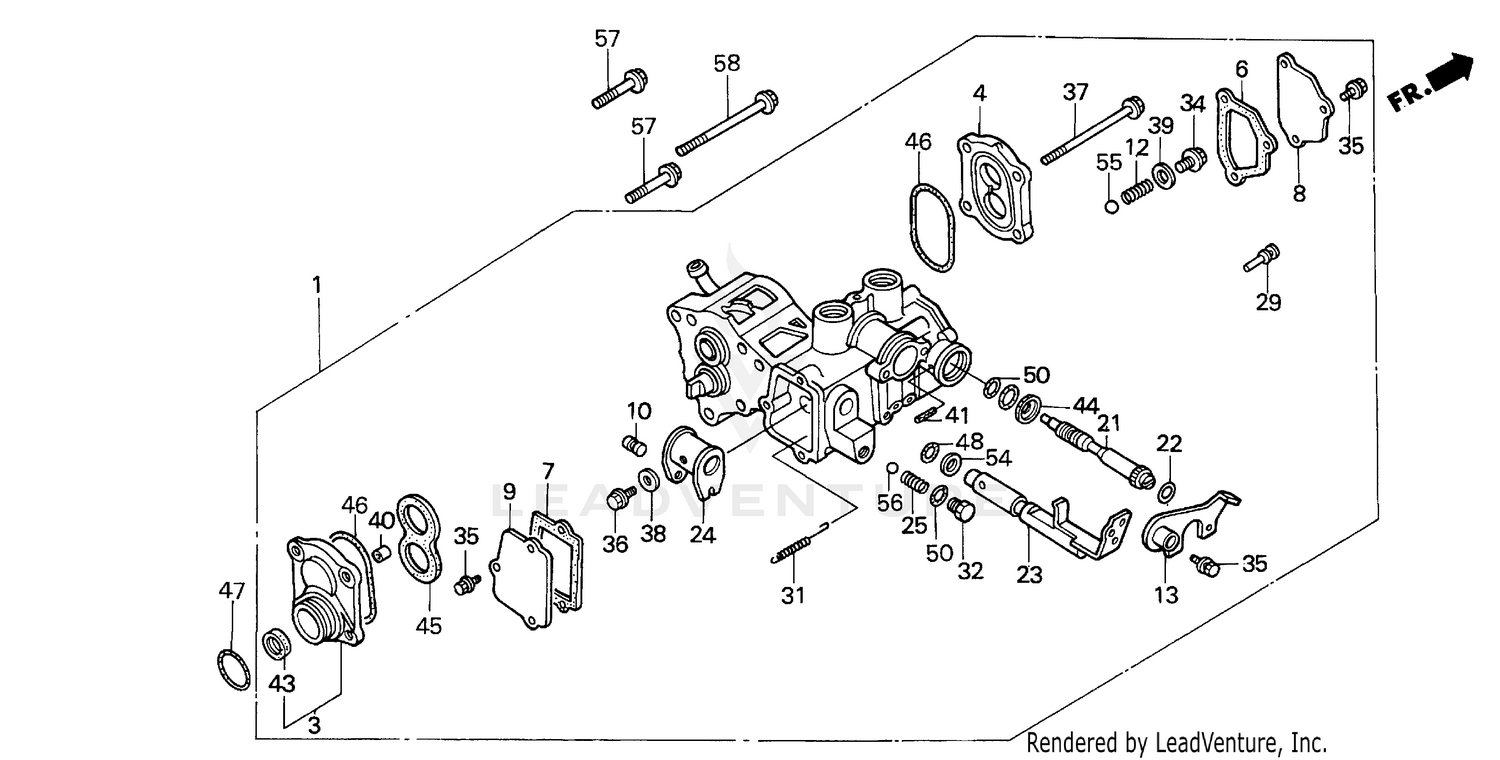

| Ref | Part Number | Description |
|---|
| 1 |
56000-769-750 |
PUMP & VALVE ASSY. Price: $1,272.22 |
| 3 |
56250-752-000 |
COVER, FR. PUMP Price: $53.00 |
| 4 |
56321-752-D30 |
COVER, RR. Price: $44.66 |
| 6 |
56615-769-750 |
GASKET A, VALVE FRAME Price: $10.58 |
| 7 |
56616-769-750 |
GASKET B, VALVE FRAME Price: $11.18 |
| 8 |
56617-752-D30 |
COVER A, VALVE FRAME Price: $10.12 |
| 9 |
56618-752-D31 |
COVER B, VALVE FRAME Price: $11.92 |
| 10 |
56623-752-D30 |
PIN, MANUAL VALVE Price: $4.20 |
| 12 |
56653-752-D30 |
SPRING, ROTARY BALL SET Price: $3.00 |
| 13 |
56654-752-D30 |
PLATE, ROTARY STOPPER Price: $13.36 |
| 21 |
56670-752-D33 |
VALVE, DRAIN CONTROL Price: $69.88 |
| 22 |
56679-752-D30 |
MARK, HYDRAULIC ADJUSTING KNOB (ENGLISH) Price: $1.90 |
| 23 |
56680-752-B30 |
SHAFT, HYDRAULIC CONTROL Price: $66.50 |
| 24 |
56682-752-D31 |
FORK, SPOOL VALVE Price: $39.76 |
| 25 |
56688-752-D32 |
SPRING, BALL SET (A) Price: $2.26 |
| 29 |
56695-752-D31 |
ROD, PUSH Price: $7.66 |
| 31 |
56699-752-D30 |
SPRING, MANUAL VALVE Price: $4.86 |
| 32 |
90108-752-D30 |
PLUG (10X8.5) Price: $4.34 |
| 34 |
90111-752-D30 |
BOLT, FLANGE (8X8) Price: $2.82 |
| 35 |
90112-752-D30 |
BOLT, FLANGE (6X14) Price: $1.66 |
| 36 |
90116-752-D31 |
BOLT, SPECIAL (6X20) Price: $5.04 |
| 37 |
90119-752-D31 |
BOLT, FLANGE (6X85) Price: $4.20 |
| 38 |
90412-679-000 |
WASHER, CONICAL SPRING (8MM) Price: $6.70 |
| 39 |
90501-752-D30 |
WASHER, SEAL Price: $2.88 |
| 40 |
94301-08100 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X10) Price: $2.82 |
| 41 |
90753-752-D30 |
PIN, SPRING (4X20) Price: $2.26 |
| 43 |
91201-PC1-003 |
OIL SEAL (16X30X7) (NOK) Price: $13.38 |
| 44 |
91255-752-D31 |
DUST SEAL (12X22X4) Price: $6.02 |
| 45 |
91302-PC1-003 |
SEAL, PLUNGER (NOK) Price: $12.60 |
| 46 |
91302-657-000 |
O-RING (53.8X3.1) Price: $7.54 |
| 47 |
91358-752-003 |
SEE PART DETAILS - PRI; O-RING (37.5X2) Price: $2.94 |
| 48 |
91353-VD6-003 |
SEE PART DETAILS - PRI; O-RING (11.8X2.4) Price: $2.00 |
| 50 |
91371-752-D31 |
O-RING (7.8X1.9) Price: $1.32 |
| 54 |
91393-752-D30 |
RING, BACK-UP (12MM) Price: $2.90 |
| 55 |
91402-752-D30 |
BALL, STEEL (8) Price: $1.64 |
| 56 |
91403-752-D30 |
BALL, STEEL (11) Price: $1.24 |
| 57 |
95701-08035-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2563260). Price: $1.76 |
