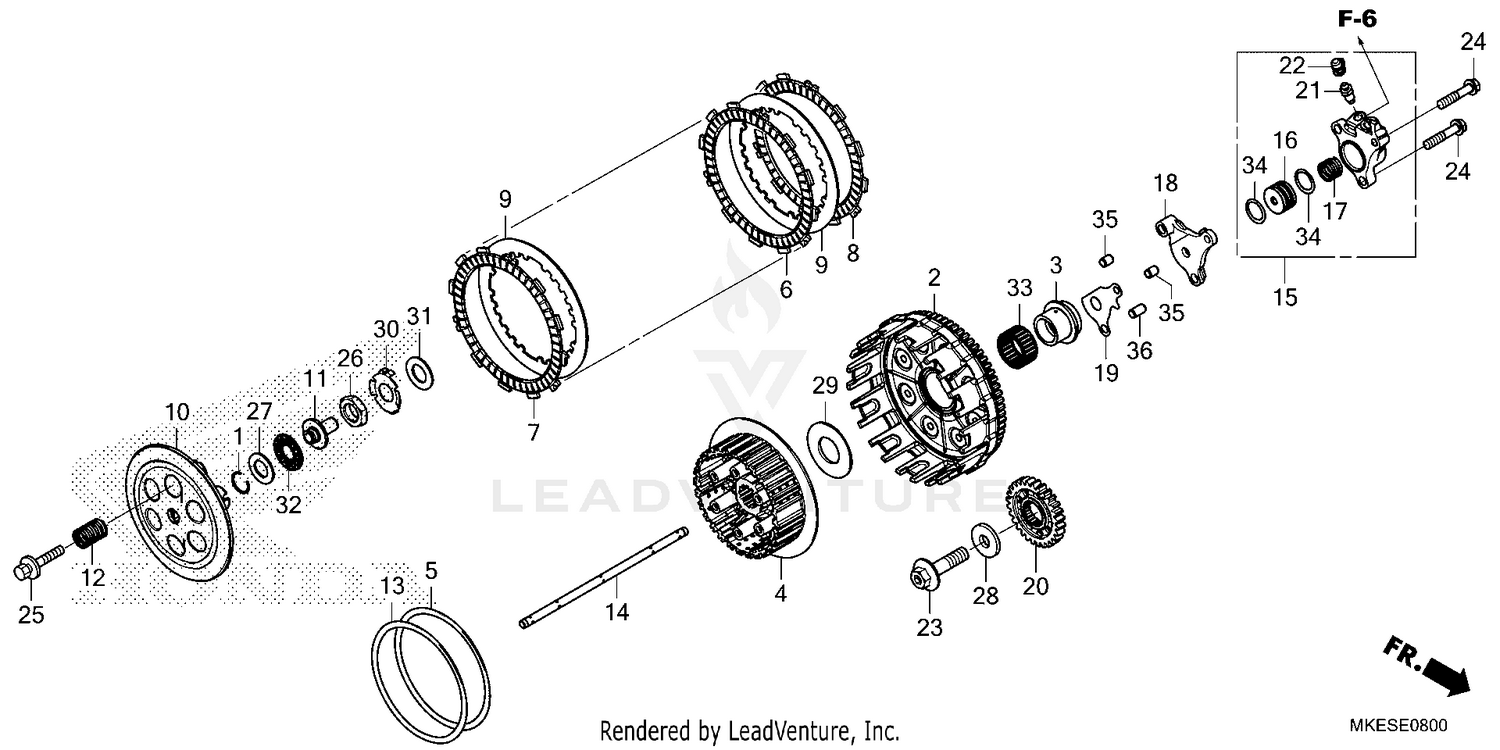

| Ref | Part Number | Description |
|---|
| 1 |
13115-147-000 |
CLIP, PISTON PIN (10MM) Price: $2.53 |
| 2 |
22100-MKE-BD0 |
CLUTCH OUTER Price: $293.22 |
| 3 |
22116-MKE-AF0 |
GUIDE, CLUTCH (OUTER) Price: $21.44 |
| 4 |
22120-MKE-AF0 |
CENTER, CLUTCH Price: $123.80 |
| 5 |
22125-MBN-670 |
SEAT, JUDDER SPRING Price: $10.18 |
| 6 |
22201-MEN-670 |
DISK B, CLUTCH FRICTION Price: $17.80 |
| 7 |
22202-MKE-BD0 |
DISK, CL FRICTION Price: $12.22 |
| 8 |
22203-MKE-BD0 |
DISK B, CL FRICTION Price: $12.22 |
| 9 |
22321-KZ3-690 |
PLATE B, CLUTCH Price: $19.51 |
| 10 |
22351-MKE-A70 |
PLATE, CLUTCH PRESSURE Price: $71.98 |
| 11 |
22352-MKE-A70 |
PIECE, CLUTCH LIFTER Price: $49.27 |
| 12 |
22401-MKE-AF0 |
SPRING, CLUTCH Price: $6.33 |
| 13 |
22402-MBN-670 |
SPRING, JUDDER Price: $25.85 |
| 14 |
22850-MKE-BD0 |
ROD, CLUTCH LIFTER Price: $49.15 |
| 15 |
22860-MKE-AF1 |
CYLINDER ASSY., SLAVE Price: $247.11 |
| 16 |
22862-MKE-AF1 |
PISTON, SLAVE CYLINDER Price: $59.56 |
| 17 |
22863-MKE-AF1 |
SPRING, SLAVE CYLINDER Price: $5.00 |
| 18 |
22866-MKE-AF0 |
HOLDER, SLAVE CYLINDER Price: $34.42 |
| 19 |
22867-MKE-AF0 |
GASKET B, SLAVE CYLINDER Price: $6.40 |
| 20 |
23121-MKE-A00 |
GEAR, PRIMARY DRIVE (28T) Price: $98.65 |
| 21 |
43352-568-003 |
SCREW, BLEEDER (NISSIN) Price: $9.98 |
| 22 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 23 |
90013-MEY-670 |
BOLT, SPECIAL (12X47) Price: $8.82 |
| 24 |
90020-GHB-710 |
BOLT, FLANGE (6X32) Price: $3.04 |
| 25 |
90024-MEN-A70 |
BOLT-WASHER (6X35) Price: $2.76 |
| 26 |
90235-MEN-A30 |
NUT (18MM) Price: $6.45 |
| 27 |
90401-MKE-A70 |
WASHER (12.1X25X1) Price: $2.65 |
| 28 |
90402-KW6-960 |
WASHER, PLAIN (12MM) Price: $6.98 |
| 29 |
90421-MKE-A50 |
WASHER (23X43X3) Price: $6.35 |
| 30 |
90461-KZ3-J10 |
WASHER, LOCK (18MM) Price: $7.84 |
| 31 |
90501-ML3-910 |
WASHER (18X32X2) Price: $5.49 |
| 32 |
91001-147-003 |
BEARING, NEEDLE (12MM) (NTN) Price: $15.25 |
| 33 |
91022-MB0-003 |
BEARING, NEEDLE (30X35X17) Price: $42.36 |
| 34 |
91301-MKE-AF1 |
O-RING (21.1X2.45) Price: $2.44 |
| 35 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
