Parts Catalog

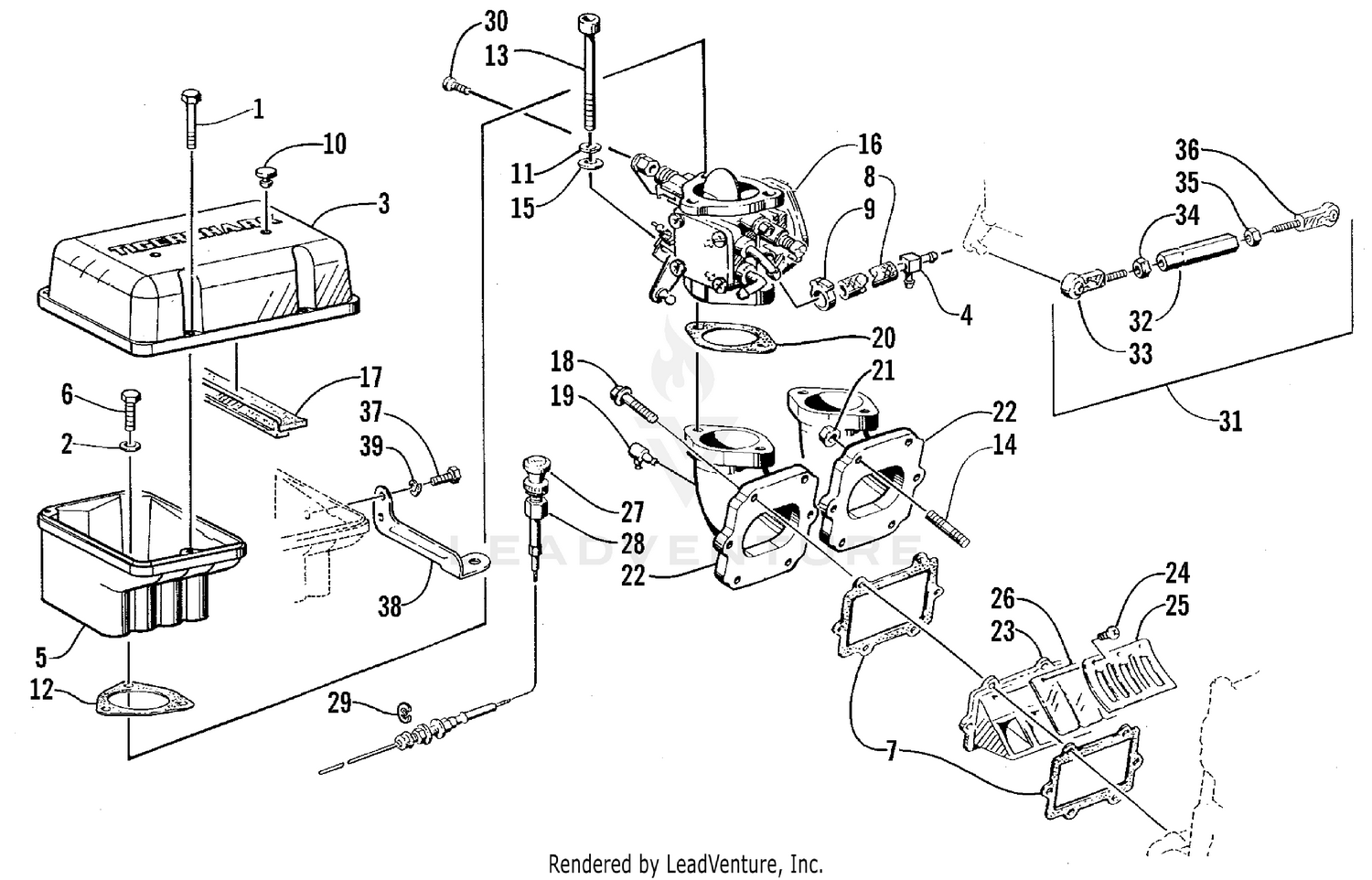

INTAKE ASSEMBLY [73479]

Parts (39)

Ref	Part Number	Description
1	0624-408	Screw, Cap Price: $4.99
2	0624-022	Washer Price: $0.18
3	1673-255	Cover, Sound Attenuator Price: $14.79
4	0109-332	T-Fitting Price: $0.89
5	1673-375	Base, Sound Attenuator - Center Price: $20.49
5	1673-403	Base, Sound Attenuator Price: $77.71
6	0624-112	SCREW,CAP HH6MM 1.0TX25MM Price: $0.53
7	3005-432	GASKET, REED VALVE Price: $17.92
8	0710-425	HOSE,FUEL-25' (ISO8469) Price: $68.79
9	0624-380	Clamp, Hose Price: $2.06
10	1606-038	Bumper, Air Silencer Price: $0.29
11	0624-027	Washer, Lock Price: $0.35
12	1673-179	Gasket Price: $22.59
13	0624-338	SCREW, CAP - HSH 8MMX1.25X80 Price: $5.99
14	0624-397	Stud Price: $18.82
15	0624-028	Washer Price: $0.32
16	1670-043	Carburetor Assembly Price: $1,653.24
17	0670-714	Seal, Strip - Sound Attenuator Price: $3.87
18	3008-213	Screw, Cap Price: $3.39
19	3008-655	VALVE,CHECK Price: $32.95
20	1673-090	Gasket Price: $0.94
21	0624-250	NUT,LOCK-NSL M6-1.0 SS Price: $0.71
22	0670-725	MANIFOLD,INTAKE-MACH Price: $152.59
23	3008-483	Reed Valve - Assembly (inc. 24-26) Price: $146.95
24	3004-422	Screw Set Price: $1.49
25	3008-074	Stopper, Reed Valve Price: $12.29
26	3008-075	Valve, Reed Price: $23.64
27	0687-094	Cable, Choke Price: $93.91
28	0687-051	Nut Price: $3.89
29	0624-268	Ring, Retaining Price: $1.53
30	6505-855	Screw, Machine Price: $2.19
31	6505-927	Throttle Linkage Price: $39.95
32	6505-921	Adjuster, Throttle Linkage Price: $28.95
33	6505-861	End, Adjuster Price: $13.59
34	6505-859	Nut, Jam - Left Price: $2.12
35	6505-860	Nut, Jam Price: $10.58
36	6505-858	End, Adjuster - Left Price: $16.79
37	0624-155	Screw, Cap Price: $0.69
38	1673-430	Brace, Sound Attenuator - Dual Price: $235.39
