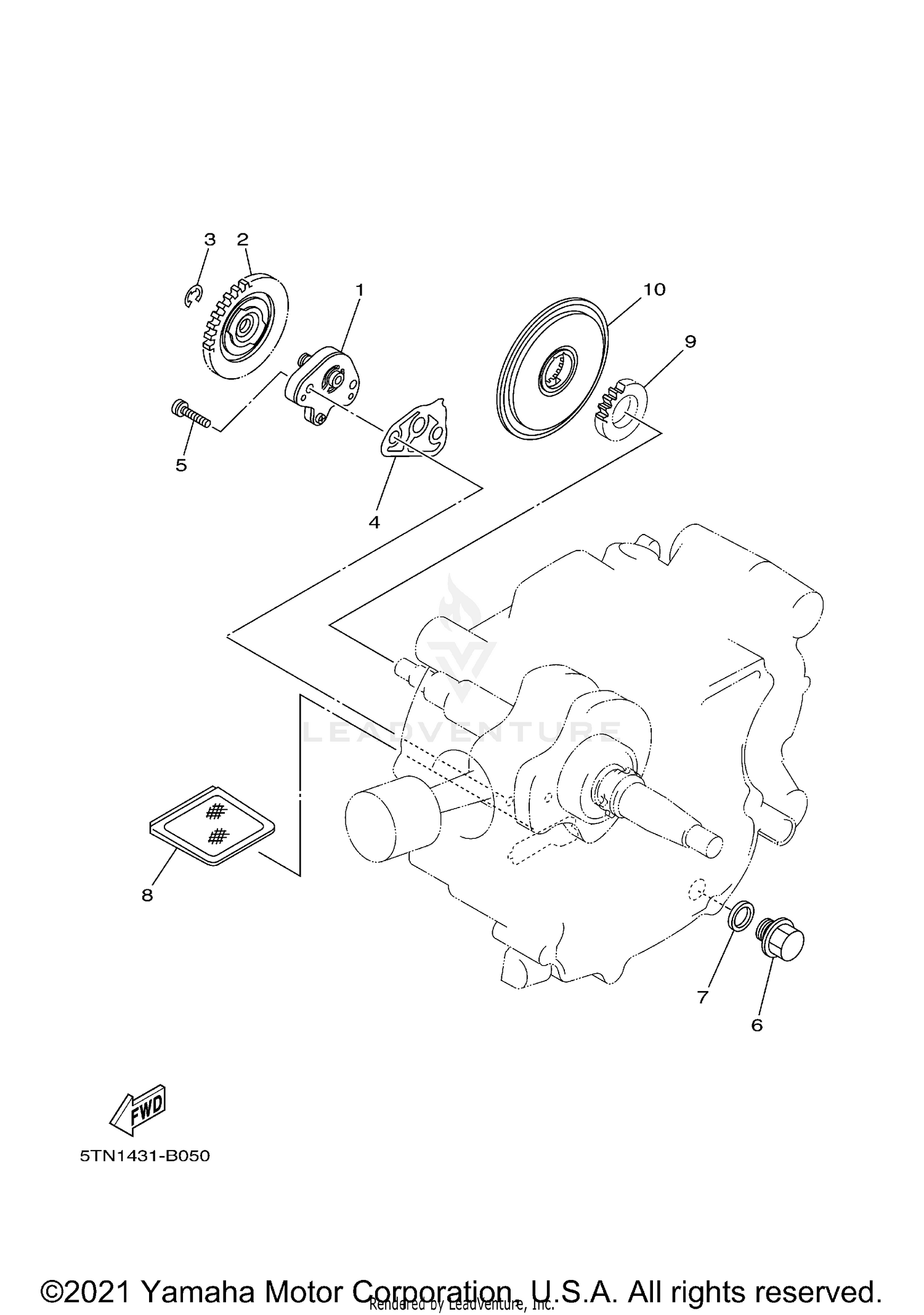

OIL PUMP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5VT-E3104-00-00 | OIL PUMP SUB ASSY This part replaces 3S0-E3104-00-00. Price: $19.49 |
| 2 | 5TP-E3325-00-00 | GEAR, PUMP DRIVEN Price: $6.49 |
| 3 | 99080-05600-00 | CIRCLIP This part replaces 99001-05600-00. Price: $9.49 |
| 4 | 4S9-E3329-00-00 | GASKET, PUMP COVER This part replaces 5TP-E3329-00-00. Price: $2.35 |
| 5 | 90155-06007-00 | SCREW, FLAT FILLISTER Price: $0.50 |
| 6 | 90340-12808-00 | PLUG, STRAIGHT SCREW Price: $1.10 |
| 7 | 812-11198-00-00 | GASKET This part replaces 4YS-E1198-00-00. Price: $7.49 |
| 8 | 4S9-E3411-00-00 | STRAINER, OIL This part replaces 4ST-E3411-00-00. Price: $4.55 |
| 9 | 5TP-E3324-00-00 | GEAR, PUMP DRIVE Price: $26.99 |
