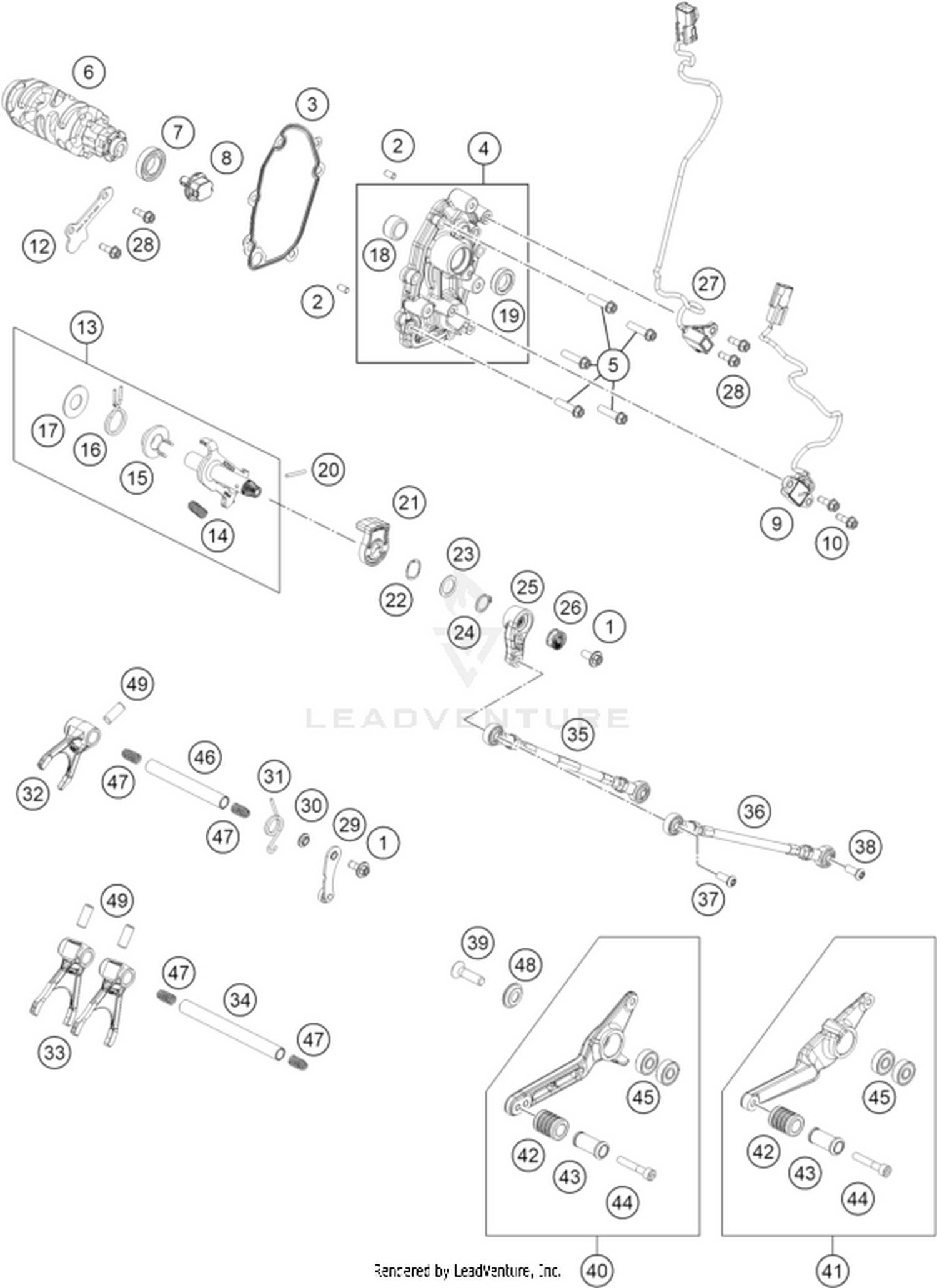

34 SHIFTING MECHANISM
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 3 | A64030072000 | Shift cover gasket Price: Call Us |
| 4 | A6403007103324 | Shift cover cmpl. Price: Call Us |
| 5 | 0025060256 | HH collar screw M6x25 TX30 Price: Call Us |
| 6 | A64034012000 | Shift drum Price: Call Us |
| 7 | 0625069034 | BALL BEARING 6903 C4 This part replaces 0625069030. Price: Call Us |
| 8 | A64034050000 | Magnet bracket Price: Call Us |
| 10 | 0984050123S | CYLIND. SCR. DIN6912 M5X12 8.8 Price: Call Us |
| 12 | A64034011000 | Retaining bracket, shift rail Price: Call Us |
| 13 | A64034005033 | Combustion chamber insert Price: Call Us |
| 14 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 15 | 54634020000 | SPRING GUIDE Price: Call Us |
| 16 | 61234014000 | RETURNSPRING 2MM Price: Call Us |
| 17 | 54634050000 | STOP DISK 14X30X1 Price: Call Us |
| 22 | 0740001502500 | Valve spring This part replaces 63534050010. Price: Call Us |
| 23 | 0988142005 | Thrust washer DIN 988 14x20x0. Price: Call Us |
| 25 | A60734030000C1 | Shift shaft linkage Price: Call Us |
| 26 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 27 | 63534051000 | Shift assistant sensor Price: Call Us |
| 28 | 0025060166S | HH collar screw M6x16 TX30 SL Price: Call Us |
| 31 | 0102701502200 | Detent arm rotary spring Price: Call Us |
| 33 | 63534001100 | Shift fork Price: Call Us |
| 34 | 75034019200 | Shift fork shaft Price: Call Us |
| 37 | 0738060205S | Oval head screw ISR M6x20-A2-7 Price: Call Us |
| 38 | 0738060165S | Oval head screw TX M6x16 A2-70 Price: Call Us |
| 39 | 0019080306S | COUNTER-SUNK SCREW ISA45 M8X30 Price: Call Us |
| 42 | 61034035000 | RUBBER FOR SHIFT LEVER 05 Price: Call Us |
| 43 | 69034032000 | STEP PLATE SHIFTING LEVER Price: Call Us |
| 44 | 0912060353 | AH SCREW DIN0912-M 6X35 Price: Call Us |
| 45 | 0625006087 | Grooved ball bearing 608 2RS C Price: Call Us |
| 46 | 77034019000 | SHIFTING MAIN L=93MM 05 Price: Call Us |
| 47 | 58038023400 | Compression spring L=25mm D=0. Price: Call Us |
| 48 | 64134031020 | Fasson Disc D=23x5 Price: Call Us |
