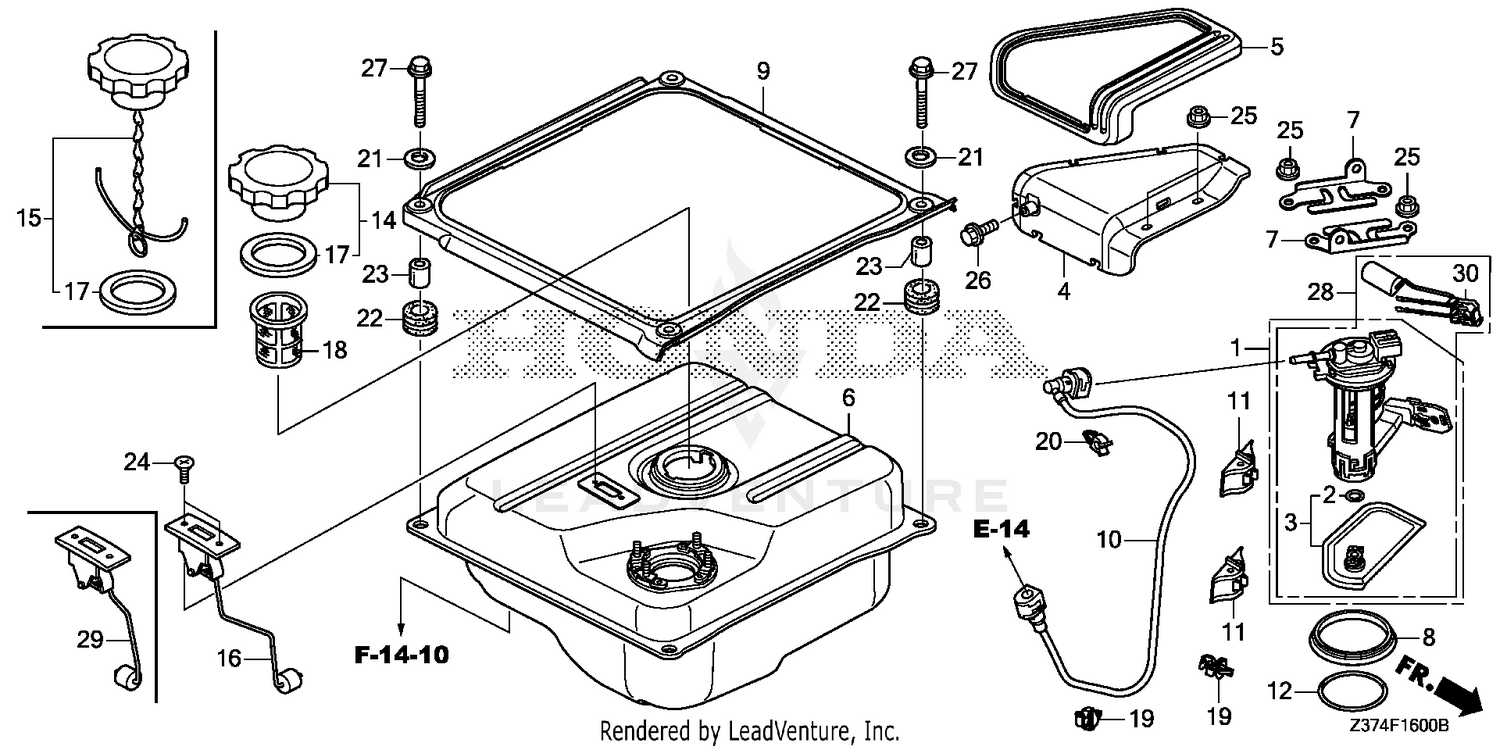

| Ref | Part Number | Description |
|---|
| 2 |
16706-GGL-J01 |
O-RING (6.8X1.9) Price: $6.70 |
| 3 |
16707-Z37-003 |
FILTER SET Price: $17.32 |
| 4 |
16715-Z37-000ZA |
COVER, FUEL PUMP *NH700M* (ALABASTER SILVER METALLIC) Price: $13.86 |
| 5 |
16716-Z37-000 |
SEAL, FUEL PUMP COVER Price: $9.94 |
| 6 |
17510-Z37-R50 |
TANK, FUEL Price: $84.24 |
| 7 |
17517-Z37-000 |
RETAINER, FUEL PUMP Price: $2.26 |
| 8 |
17518-GGL-J00 |
DUST SEAL Price: $16.50 |
| 9 |
17537-Z25-000 |
SEAL, FUEL TANK Price: $77.74 |
| 10 |
17550-Z37-013 |
HOSE, FUEL FEED Price: $43.08 |
| 11 |
17567-Z37-000 |
GROMMET, FUEL FEED Price: $0.96 |
| 12 |
17572-Z37-000 |
O-RING, FUEL PUMP Price: $2.02 |
| 15 |
17620-Z30-S32 |
CAP, FUEL FILLER Price: $44.66 |
| 17 |
17631-899-010 |
GASKET Price: $7.96 |
| 18 |
17670-Z26-S60 |
FILTER, FUEL Price: $18.88 |
| 19 |
17936-SL5-A01 |
CLIP, THROTTLE WIRE Price: $6.64 |
| 20 |
53723-SF1-951 |
CLIP, RETURN PIPE (6MM) (NOT AVAILABLE) Price: $4.50 |
| 21 |
90501-Z15-000 |
WASHER (6MM) Price: $3.68 |
| 22 |
90851-Z37-000 |
RUBBER, TANK CUSHION Price: $3.86 |
| 23 |
91551-Z25-000 |
COLLAR, TANK CUSHION Price: $3.86 |
| 24 |
93600-05010-0A |
SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529). Price: $0.98 |
| 25 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
| 26 |
95701-06012-07 |
BOLT, FLANGE (6X12) Price: $2.04 |
| 27 |
95701-06025-07 |
BOLT, FLANGE (6X25) Price: $2.26 |
| 28 |
16700-Z37-A21 |
UNIT ASSY., FUEL PUMP (MSDS) Price: Call Us |
| 29 |
17630-Z37-R50 |
METER ASSY., FUEL Price: $4.92 |
