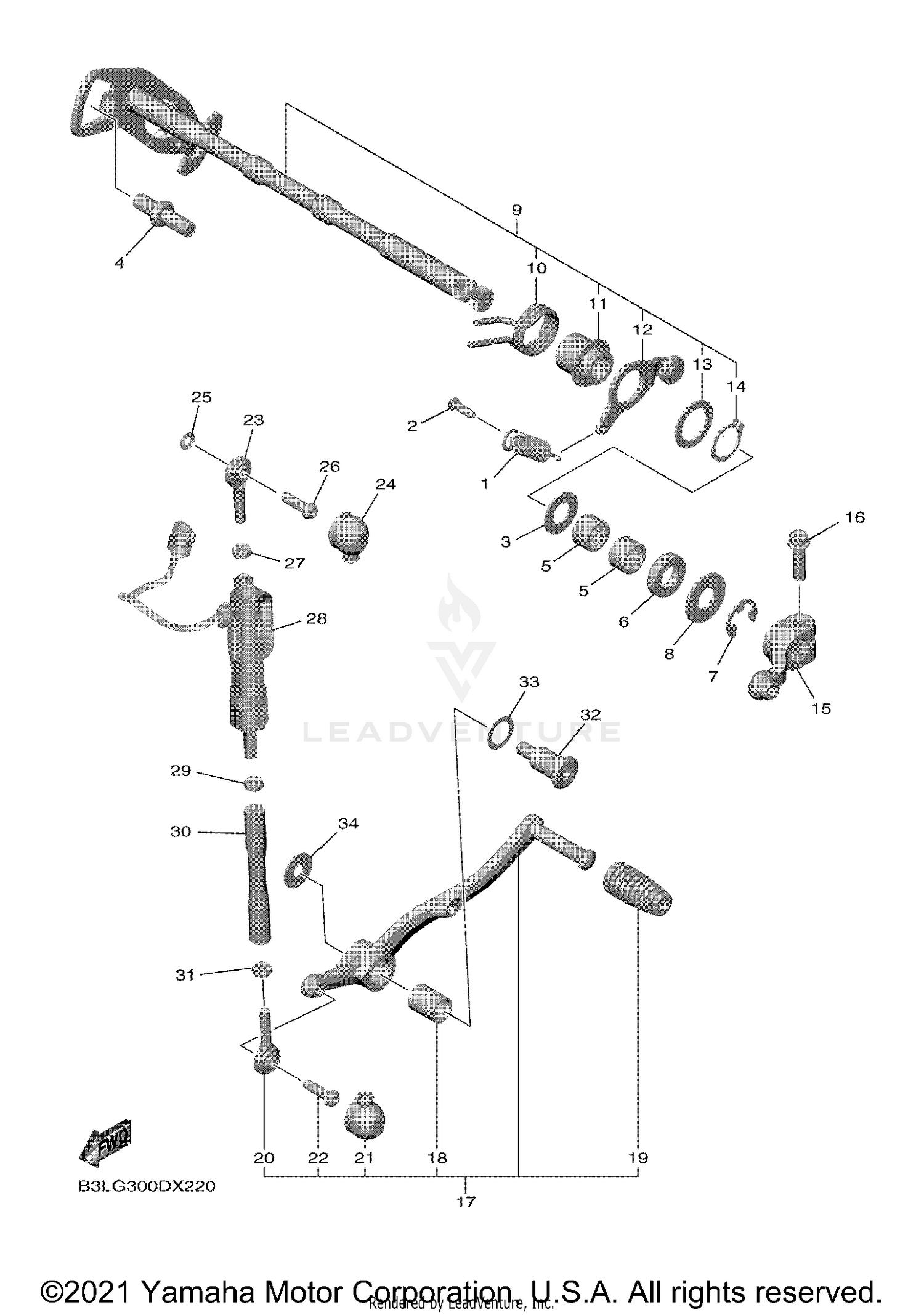

| Ref | Part Number | Description |
|---|
| 1 |
90506-18021-00 |
SPRING, TENSION Price: $9.49 |
| 2 |
132-16346-00-00 |
HOOK, SPRING Price: $10.99 |
| 3 |
90201-127E1-00 |
WASHER, PLATE Price: $4.65 |
| 4 |
5VK-18127-00-00 |
STOPPER, SCREW This part replaces 1D7-18127-00-00. Price: $15.49 |
| 5 |
93317-11295-00 |
BEARING Price: $50.99 |
| 6 |
93102-12106-00 |
OIL SEAL (SD 12-22-5 HS) Price: $12.49 |
| 7 |
99002-10600-00 |
CIRCLIP Price: $9.49 |
| 8 |
90201-12575-00 |
WASHER, PLATE Price: $9.49 |
| 9 |
2CR-18101-01-00 |
SHIFT SHAFT ASSY Price: $152.99 |
| 10 |
90508-32141-00 |
SPRING, TORSION Price: $9.49 |
| 11 |
B7N-18175-00-00 |
SPACER Price: $18.99 |
| 12 |
14B-18140-00-00 |
STOPPER LEVER ASSY Price: $38.99 |
| 13 |
90201-177G4-00 |
WASHER, PLATE Price: $10.49 |
| 14 |
99009-17400-00 |
CIRCLIP Price: $5.49 |
| 15 |
BW8-18112-10-00 |
ARM, SHIFT Price: $63.99 |
| 16 |
90105-06127-00 |
BOLT, FLANGE Price: $9.49 |
| 17 |
BX4-18110-00-00 |
SHIFT PEDAL ASSY Price: $125.99 |
| 18 |
90386-14171-00 |
BUSH Price: $9.49 |
| 19 |
5YT-18113-00-00 |
COVER, SHIFT PEDAL Price: $8.49 |
| 20 |
5LV-18117-00-00 |
JOINT, ROD 2 Price: $36.99 |
| 21 |
4XV-18154-00-00 |
COVER, DUST Price: $8.49 |
| 22 |
92017-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06019-00. Price: $4.05 |
| 23 |
5LV-18116-00-00 |
JOINT, ROD 1 Price: $62.99 |
| 24 |
4XV-18154-00-00 |
COVER, DUST Price: $8.49 |
| 25 |
90201-067F9-00 |
WASHER, PLATE Price: $4.45 |
| 26 |
92017-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06019-00. Price: $4.05 |
| 27 |
95380-06700-00 |
NUT This part replaces 95304-06700-00. Price: $9.49 |
| 28 |
B3L-82480-11-00 |
SHIFT SENSOR ASSY. This part replaces B3L-82480-10-00. Price: $348.99 |
| 29 |
95380-06700-00 |
NUT This part replaces 95304-06700-00. Price: $9.49 |
| 30 |
BX4-18115-00-00 |
ROD, SHIFT Price: $43.99 |
| 31 |
90170-06228-00 |
NUT (COUNTER CLOCKWISE) Price: $10.49 |
| 32 |
4C8-27434-10-00 |
BOLT This part replaces 4C8-27434-00-00. Price: $24.99 |
| 33 |
90206-14086-00 |
WASHER, WAVE Price: $9.49 |
