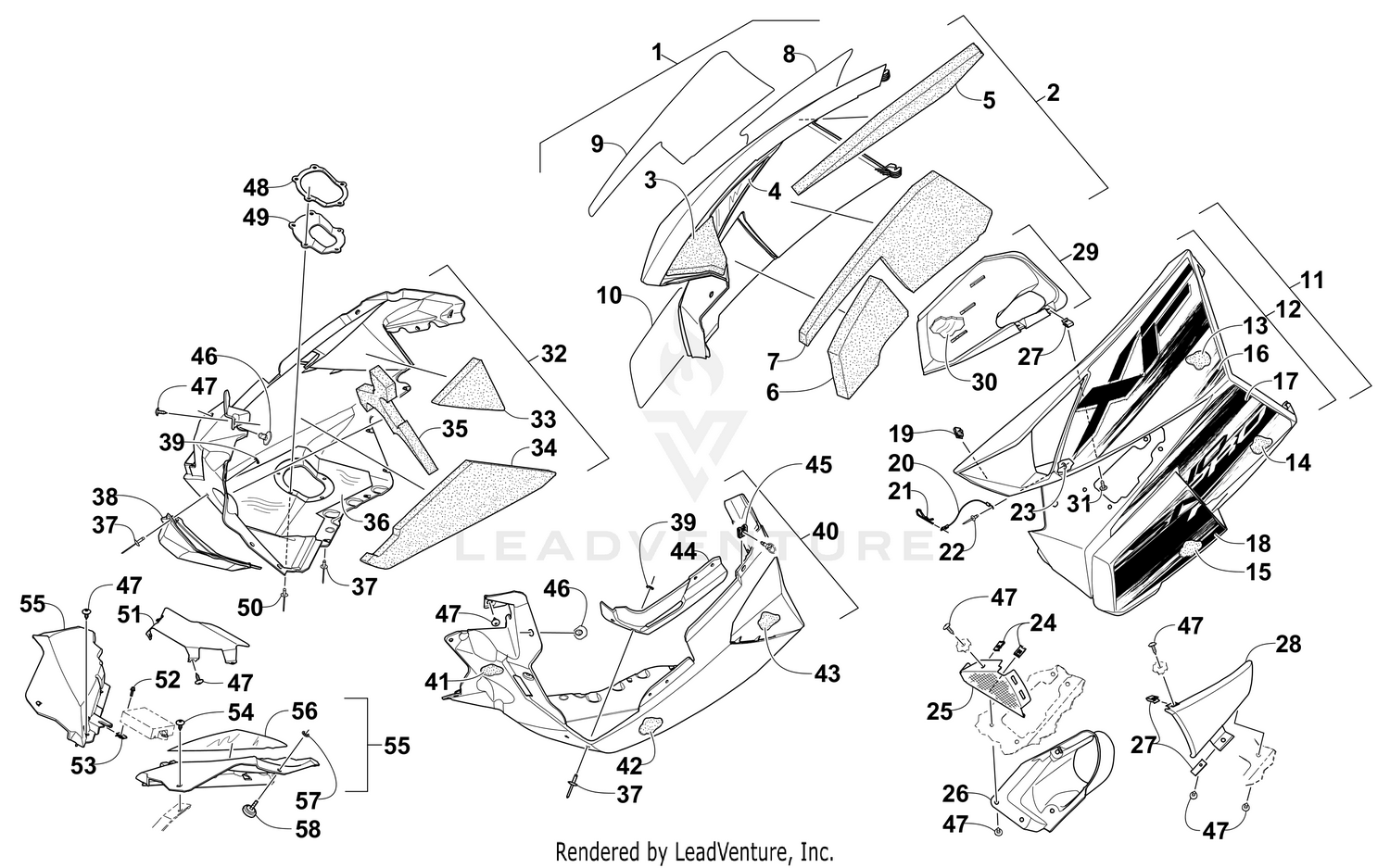

SKID PLATE AND SIDE PANEL ASSEMBLY [101399]

Parts (49)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	0617-634	Foam, Side Panel - Lower Rear - Right Price: $47.95
8	1621-468	Decal, Side Panel - Upper - Right Price: $54.95
9	1621-470	Decal, Side Panel - Lower - Right Price: $53.95
10	1621-472	Decal, Side Panel - Forward - Right Price: $22.99
13	0617-629	Foam, Side Panel - Upper Rear - Left Price: $19.35
14	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
15	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
16	1621-469	Decal, Side Panel - Upper - Left Price: $54.95
17	1621-471	Decal, Side Panel - Lower - Left Price: $53.95
18	1621-473	Decal, Side Panel - Forward - Left Price: $22.99
19	1623-637	Clip, U-Nut Price: $2.61
20	0607-447	Cable Price: $11.02
21	0605-283	Clip, Hairpin Price: $2.29
22	8060-486	Rivet Price: $0.29
23	8050-127	Washer Price: $1.57
24	1623-052	Clip, U-Nut Price: $1.08
25	6606-925	Screen, Intake Price: $36.95
26	2602-794	Duct, Intake - Inner Price: $71.95
27	1623-030	Clip, U-Nut Price: $1.08
28	2602-803	Duct, Intake - Outer - White Price: $20.56
30	6606-694	Foil, Protective Price: $1.19
31	0623-797	Screw, Self-Tapping Price: $0.42
33	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
34	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
35	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
36	2612-850	Foil, Protective Price: $12.95
37	8061-708	Rivet Price: $1.08
38	2612-754	Deflector, Heat Price: $31.95
39	0123-802	Washer Price: $0.23
41	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
42	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
43	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
44	6606-613	Panel, Reinforcement Price: $14.49
45	2623-005	Clip, Retaining Price: $2.91
46	6606-592	Pin, Retaining Price: $3.88
47	1623-129	Screw, Self-Tapping Price: $0.29
48	2612-796	Plate, Exhaust Outlet Price: $28.95
49	2612-795	Seal, Exhaust Outlet Price: $19.35
50	8061-710	Rivet Price: $1.20
51	6606-295	Shield, Heat - EMC Price: $20.95
52	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
53	0423-031	Clip, U-Nut Price: $1.08
54	0623-784	Screw, Self-Tapping Price: $0.09
55	6606-342	Fascia, Front - Right - Black Price: $39.95
56	6606-405	Foil, Protective Price: $31.27
