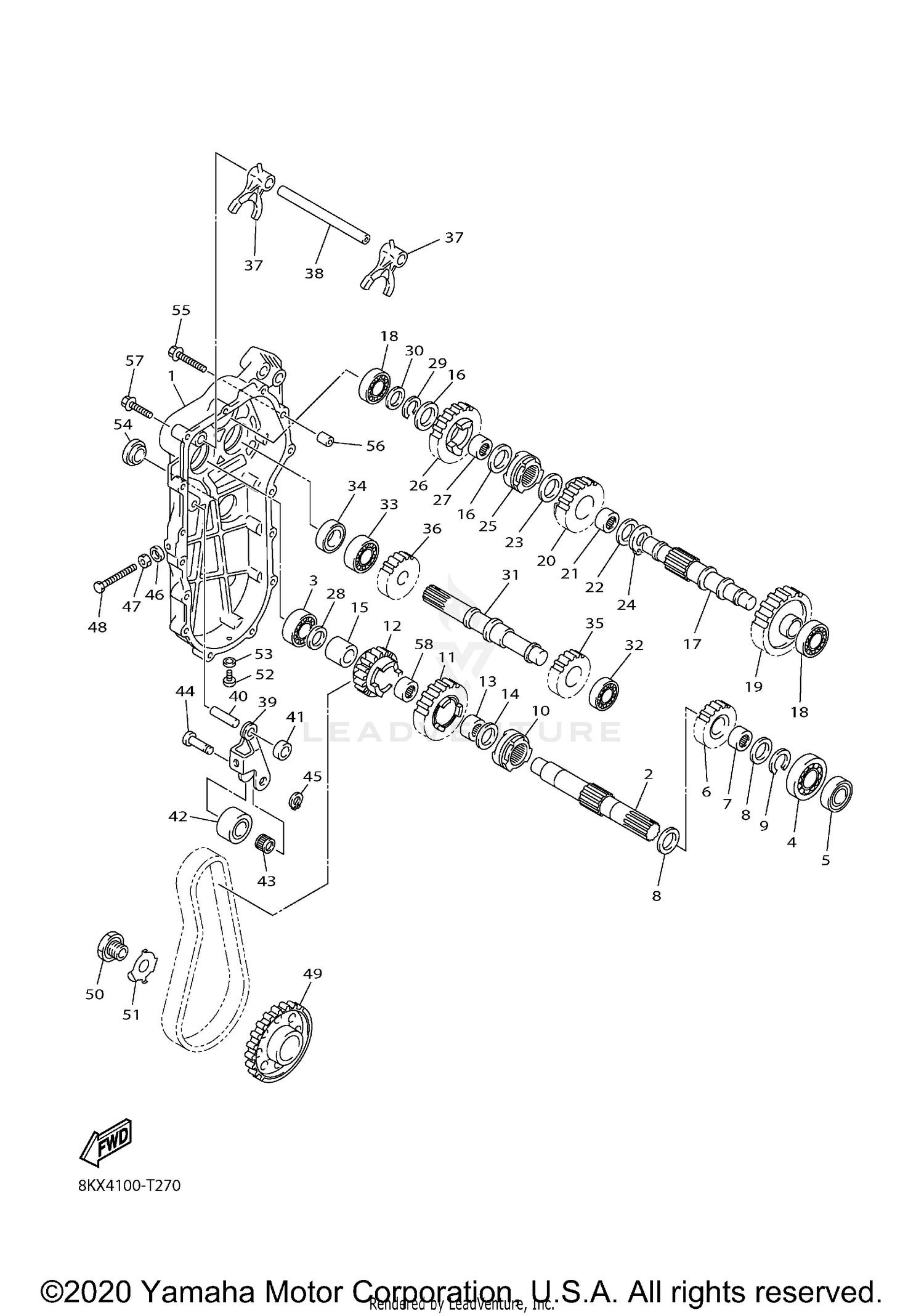

| Ref | Part Number | Description |
|---|
| 1 |
83R-47543-10-00 |
CAP, HOUSING Price: $483.99 |
| 2 |
85R-17421-00-00 |
AXLE, DRIVE Price: $187.99 |
| 3 |
93306-20458-00 |
BEARING This part replaces 93306-20402-00. Price: $47.99 |
| 4 |
93306-37204-00 |
BEARING This part replaces 93306-37206-00. Price: $51.99 |
| 5 |
93102-22014-00 |
OIL SEAL, SD-TYPE Price: $13.49 |
| 6 |
83R-17121-00-00 |
GEAR, 2ND PINION (22T) Price: $60.99 |
| 7 |
93311-42265-00 |
BEARING Price: $32.99 |
| 8 |
90201-224L4-00 |
WASHER, PLATE Price: $9.49 |
| 9 |
99009-22400-00 |
CIRCLIP Price: $9.49 |
| 10 |
83R-17492-10-00 |
DOG, TRANSMISSION SHIFT Price: $77.99 |
| 11 |
8AT-17131-00-00 |
GEAR, 3RD PINION (28T) Price: $74.99 |
| 12 |
8KA-17682-00-00 |
SPROCKET, CHAIN DRIVE (18T) Price: $62.99 |
| 13 |
93317-32241-00 |
BEARING, CYLINDRICAL Price: $45.99 |
| 14 |
90201-224L4-00 |
WASHER, PLATE Price: $9.49 |
| 15 |
90387-226V7-00 |
COLLAR Price: $15.99 |
| 16 |
90201-20792-00 |
WASHER, PLATE Price: $10.49 |
| 17 |
83R-17431-00-00 |
AXLE, COUNTER Price: $98.99 |
| 18 |
93306-20327-00 |
BEARING This part replaces 93306-20321-00. Price: $42.99 |
| 19 |
8AT-17141-00-00 |
GEAR, 4TH PINION (28T) Price: $54.99 |
| 20 |
83R-17151-00-00 |
GEAR, 5TH PINION (22T) Price: $60.99 |
| 21 |
93317-32241-00 |
BEARING, CYLINDRICAL Price: $45.99 |
| 22 |
90201-224L4-00 |
WASHER, PLATE Price: $9.49 |
| 23 |
90201-225L2-00 |
WASHER, PLATE Price: $11.49 |
| 24 |
99009-22400-00 |
CIRCLIP Price: $9.49 |
| 25 |
83R-17492-10-00 |
DOG, TRANSMISSION SHIFT Price: $77.99 |
| 26 |
83R-17143-00-00 |
GEAR, REVERSE PINION 1 (27T) Price: $59.99 |
| 27 |
93317-22021-00 |
BEARING Price: $34.99 |
| 28 |
90201-20792-00 |
WASHER, PLATE Price: $10.49 |
| 29 |
99009-20400-00 |
CIRCLIP Price: $9.49 |
| 30 |
90201-17682-00 |
WASHER, PLATE This part replaces 90201-171J5-00. Price: $2.65 |
| 31 |
83R-17432-01-00 |
AXLE, IDLE Price: $118.99 |
| 32 |
93306-20327-00 |
BEARING This part replaces 93306-20321-00. Price: $42.99 |
| 33 |
93306-20458-00 |
BEARING This part replaces 93306-20402-00. Price: $47.99 |
| 34 |
93102-20447-00 |
OIL SEAL This part replaces 93102-20010-00. Price: $12.49 |
| 35 |
83R-17243-00-00 |
GEAR, REVERSE WHEEL 1 (19T) Price: $47.99 |
| 36 |
83R-17153-00-00 |
GEAR, REVERSE PINION 2 (20T) Price: $47.99 |
| 37 |
83R-18511-00-00 |
FORK, SHIFT 1 Price: $52.99 |
| 38 |
83R-18531-00-00 |
BAR, SHIFT FORK GUIDE 1 Price: $15.99 |
| 39 |
83R-47613-00-00 |
HOLDER Price: $62.99 |
| 40 |
93612-44229-00 |
PIN, DOWEL Price: $5.49 |
| 41 |
90387-121E8-00 |
COLLAR Price: $18.49 |
| 42 |
8FA-47612-00-00 |
WHEEL Price: $26.99 |
| 43 |
93310-212R6-00 |
BEARING Price: $38.99 |
| 44 |
90249-12216-00 |
PIN Price: $11.49 |
| 45 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 46 |
90210-10004-00 |
WASHER, SEAL Price: $5.49 |
| 47 |
95380-10700-00 |
NUT This part replaces 95302-10700-00. Price: $6.15 |
| 48 |
90101-10357-00 |
BOLT Price: $8.49 |
| 49 |
8KA-47548-00-00 |
SPROCKET, CHAIN DRIVE (38T) Price: $92.99 |
| 50 |
90101-27001-00 |
BOLT Price: $33.99 |
| 51 |
90215-27004-00 |
WASHER, LOCK Price: $6.49 |
| 52 |
98907-06008-00 |
SCREW, BIND Price: $9.49 |
| 53 |
90430-06016-00 |
GASKET Price: $9.49 |
| 54 |
90338-30219-00 |
PLUG Price: $15.49 |
| 55 |
95817-06045-00 |
BOLT, FLANGE This part replaces 95812-06045-00. Price: $9.49 |
| 56 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 57 |
95812-06035-00 |
BOLT, FLANGE Price: $5.49 |
