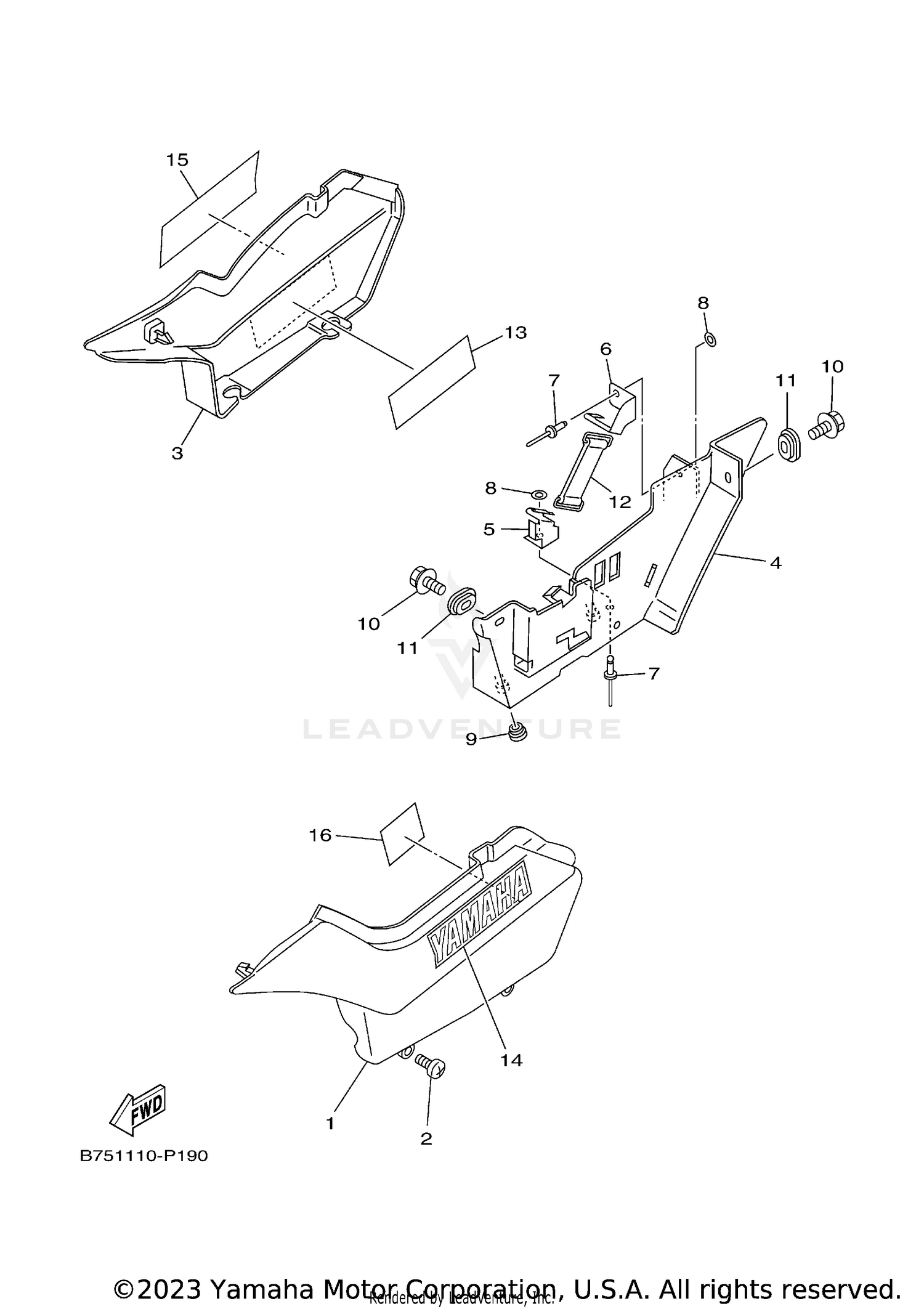

SIDE COVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90154-05013-00 | SCREW, BINDING Price: $6.49 |
| 4 | 5EK-2177A-00-00 | BOX Price: $41.99 |
| 5 | 5EK-2175T-00-00 | BRACKET 1 Price: $17.49 |
| 6 | 5EK-2175U-00-00 | BRACKET 2 Price: $16.49 |
| 7 | 90267-40080-00 | RIVET, BLIND This part replaces 90267-40075-00. Price: $4.55 |
| 8 | 90201-044H9-00 | WASHER, PLATE This part replaces 90201-04018-00. Price: $9.49 |
| 9 | 90480-13014-00 | GROMMET This part replaces 90480-13197-00. Price: $9.49 |
| 10 | 90119-06152-00 | BOLT, WITH WASHER This part replaces 90119-06056-00. Price: $3.55 |
| 11 | 90480-01401-00 | GROMMET (41Y) This part replaces 90480-01141-00. Price: $9.49 |
| 12 | 116-82131-00-00 | BAND, BATTERY Price: $34.99 |
| 13 | 10D-2815N-00-00 | LABEL, NOTICE BATTERY Price: $10.49 |
| 14 | 5HP-2153A-01-00 | EMBLEM, YAMAHA Price: $10.99 |
| 15 | 5HP-2153A-01-00 | EMBLEM, YAMAHA Price: $10.99 |
