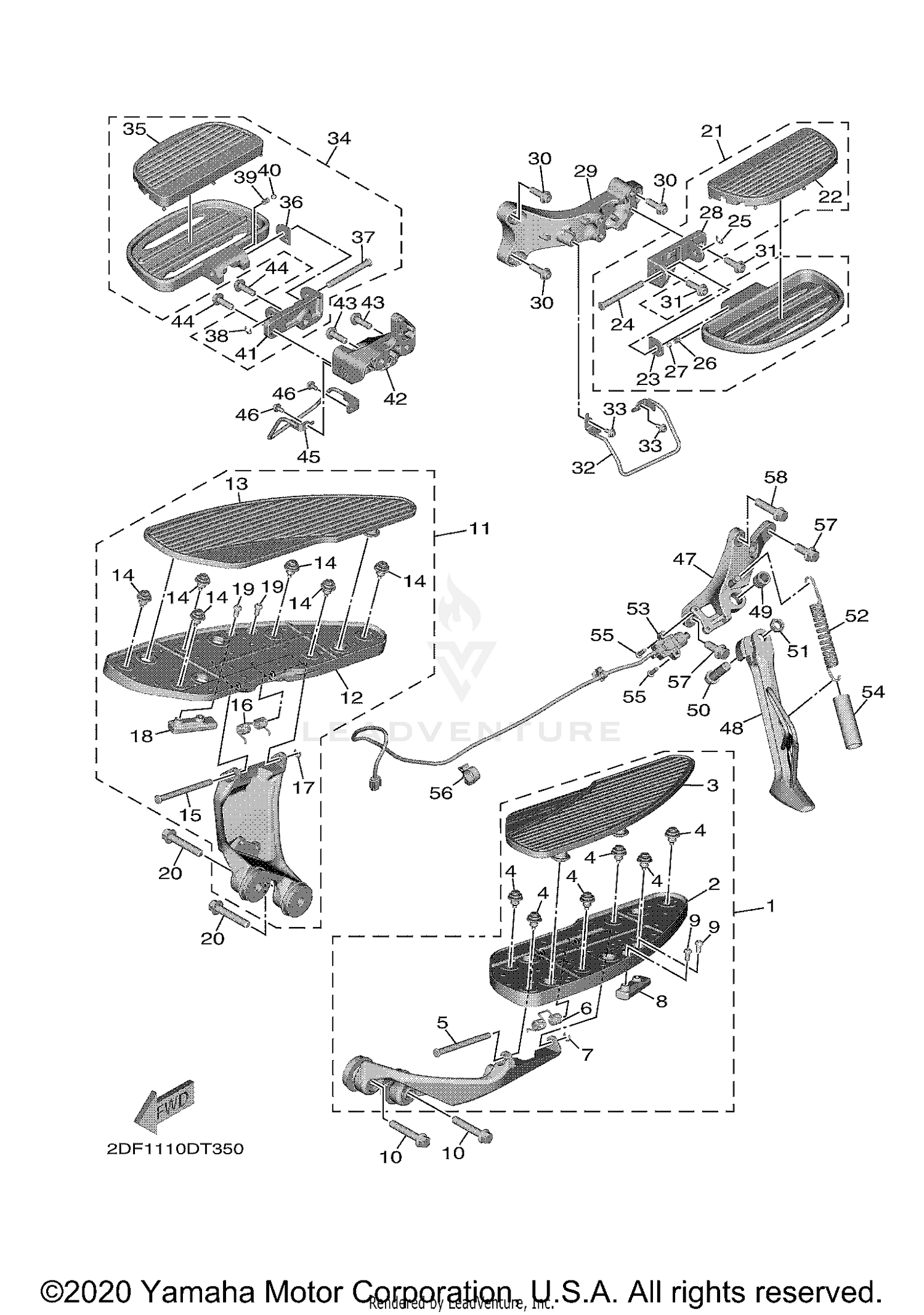

| Ref | Part Number | Description |
|---|
| 1 |
2DF-27410-00-00 |
FRONT FOOTREST ASSY (LEFT) Price: $365.99 |
| 2 |
2DF-27451-00-00 |
FOOTREST Price: $90.99 |
| 3 |
2DF-27413-00-00 |
COVER, FOOTREST Price: $63.99 |
| 4 |
2DF-27414-00-00 |
DAMPER, FOOTREST Price: $3.10 |
| 5 |
1D7-27427-00-00 |
SHAFT Price: $8.49 |
| 6 |
1D7-27426-00-00 |
SPRING, RETURN Price: $4.75 |
| 7 |
99001-06600-00 |
CIRCLIP This part replaces 99002-06600-00. Price: $1.10 |
| 8 |
2DF-27496-00-00 |
MOLE 1 Price: $32.99 |
| 9 |
90111-06103-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-06102-00. Price: $6.49 |
| 10 |
90105-10083-00 |
BOLT, FLANGE This part replaces 90105-10458-00. Price: $6.49 |
| 11 |
2DF-27420-00-00 |
FRONT FOOTREST ASSY (RIGHT) Price: $396.99 |
| 12 |
2DF-27461-00-00 |
FOOTREST Price: $98.99 |
| 13 |
2DF-27423-00-00 |
COVER, FOOTREST Price: $60.99 |
| 14 |
2DF-27414-00-00 |
DAMPER, FOOTREST Price: $3.10 |
| 15 |
1D7-27427-00-00 |
SHAFT Price: $8.49 |
| 16 |
1D7-27426-00-00 |
SPRING, RETURN Price: $4.75 |
| 17 |
99001-06600-00 |
CIRCLIP This part replaces 99002-06600-00. Price: $1.10 |
| 18 |
2DF-27496-00-00 |
MOLE 1 Price: $32.99 |
| 19 |
90111-06103-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-06102-00. Price: $6.49 |
| 20 |
90105-10083-00 |
BOLT, FLANGE This part replaces 90105-10458-00. Price: $6.49 |
| 21 |
2DF-27430-00-00 |
REAR FOOTREST ASSY 1 Price: $148.99 |
| 22 |
2DF-27433-00-00 |
COVER, REAR FOOTREST Price: $30.99 |
| 23 |
4YE-27437-01-00 |
WASHER, SPECIAL Price: $5.99 |
| 24 |
4YE-27427-01-00 |
SHAFT Price: $3.85 |
| 25 |
99001-06600-00 |
CIRCLIP Price: $1.10 |
| 26 |
90501-13720-00 |
SPRING, COMPRESSION Price: $9.49 |
| 27 |
93501-04011-00 |
BALL Price: $9.49 |
| 28 |
2DF-27452-00-00 |
BRACKET, FOOTREST 1 Price: $42.99 |
| 29 |
2DF-27432-00-00 |
BRACKET 1 Price: $61.99 |
| 30 |
90110-08231-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-08006-00. Price: $10.49 |
| 31 |
90110-08231-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-08006-00. Price: $10.49 |
| 32 |
2DF-27471-00-00 |
BAR, FOOTREST 1 Price: $14.99 |
| 33 |
90110-05076-00 |
BOLT, HEXAGON SOCKET HEAD Price: $0.55 |
| 34 |
2DF-27430-00-00 |
REAR FOOTREST ASSY 1 Price: $148.99 |
| 35 |
2DF-27433-00-00 |
COVER, REAR FOOTREST Price: $30.99 |
| 36 |
4YE-27437-01-00 |
WASHER, SPECIAL Price: $5.99 |
| 37 |
4YE-27427-01-00 |
SHAFT Price: $3.85 |
| 38 |
99001-06600-00 |
CIRCLIP Price: $1.10 |
| 39 |
90501-13720-00 |
SPRING, COMPRESSION Price: $9.49 |
| 40 |
93501-04011-00 |
BALL Price: $9.49 |
| 41 |
2DF-27452-00-00 |
BRACKET, FOOTREST 1 Price: $42.99 |
| 42 |
2DF-27442-00-00 |
BRACKET 2 Price: $59.99 |
| 43 |
90110-08231-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-08006-00. Price: $10.49 |
| 44 |
90110-08231-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-08006-00. Price: $10.49 |
| 45 |
2DF-27472-00-00 |
BAR, FOOTREST 2 Price: $14.49 |
| 46 |
90110-05076-00 |
BOLT, HEXAGON SOCKET HEAD Price: $0.55 |
| 47 |
2DF-27321-00-00 |
BRACKET, SIDE STAND Price: $185.99 |
| 48 |
2DF-27311-00-00 |
STAND, SIDE Price: $166.99 |
| 49 |
90387-1215U-00 |
COLLAR Price: $18.49 |
| 50 |
90105-12018-00 |
BOLT, FLANGE Price: $12.49 |
| 51 |
90185-12119-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 52 |
90506-23024-00 |
SPRING, TENSION Price: $10.99 |
| 53 |
2DF-82566-00-00 |
SWITCH, SIDE STAND Price: $72.99 |
| 54 |
90445-212G3-00 |
HOSE (L95) This part replaces 90445-217G3-00. Price: $9.49 |
| 55 |
98507-05016-00 |
SCREW, PAN HEAD This part replaces 90157-05008-00. Price: $1.80 |
| 56 |
90464-25009-00 |
CLAMP Price: $9.49 |
| 57 |
90105-102A3-00 |
BOLT, FLANGE This part replaces 90105-10236-00. Price: $11.49 |
