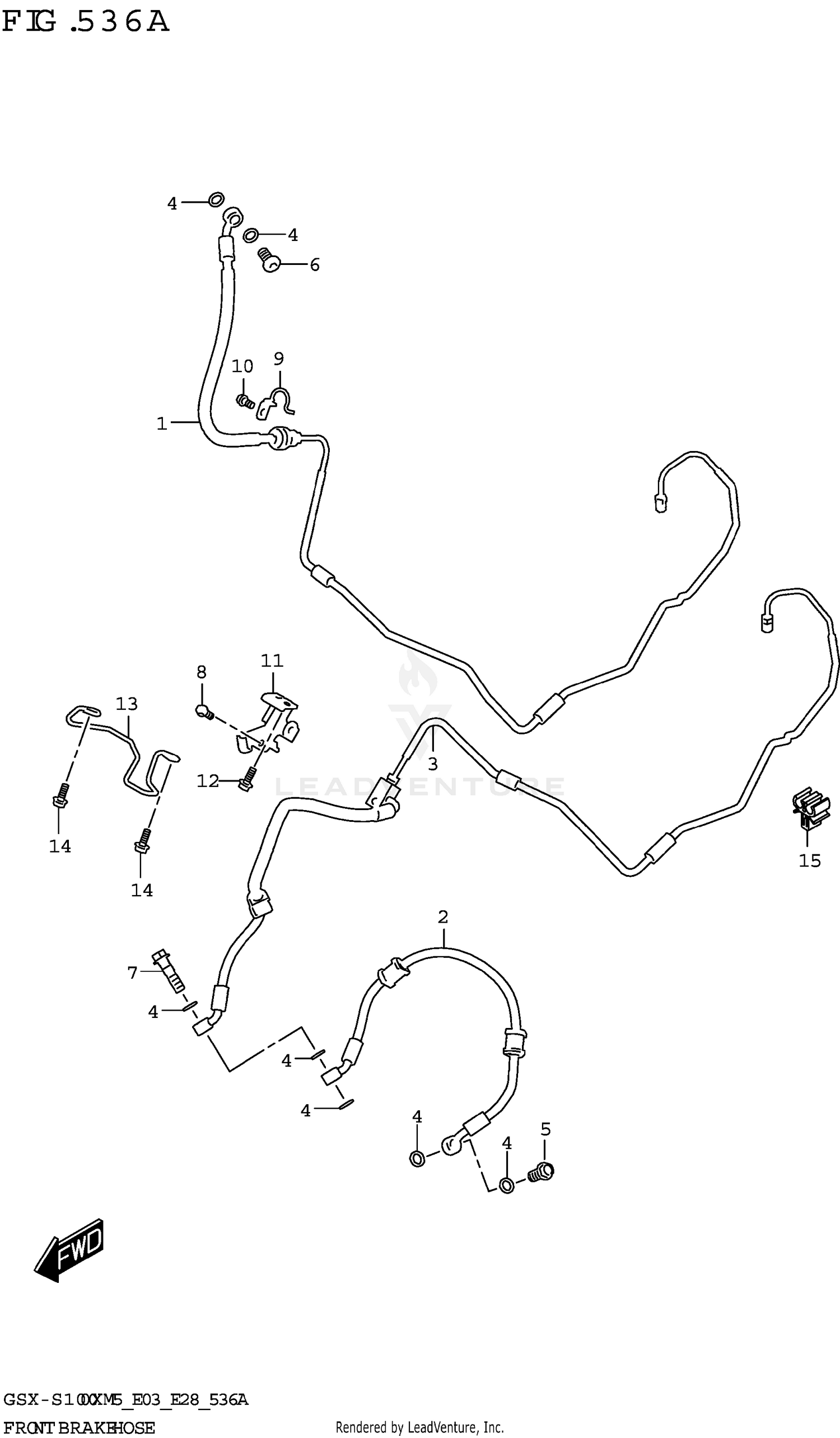

FRONT BRAKE HOSE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 59200-48K30 | HOSE ASSY,FR BK MASTER TO UNI Price: $100.17 |
| 2 | 59240-48K00 | HOSE,FR BK CLPR TO CLPR Price: $58.00 |
| 3 | 59400-48K10 | HOSE ASSY,UNIT TO FR BK CLPR Price: $109.76 |
| 4 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 5 | 09360-10062 | UNION This part replaces 09360-10042. Price: $7.84 |
| 6 | 09360-10053 | UNION (10X1.25X22) Price: $9.38 |
| 7 | 09360-10069 | BOLT Price: $6.53 |
| 8 | 01547-0616B | BOLT Price: $2.94 |
| 9 | 59260-04K10 | CLAMP, FR BRAKE HOSE UPPER Price: Call Us |
| 10 | 01547-0612B | BOLT Price: $1.48 |
| 11 | 59271-48K10 | BRACKET,FR BK HOSE Price: $19.92 |
| 12 | 01550-0616B | BOLT Price: $2.87 |
| 13 | 59541-48K00 | GUIDE,FR BRAKE HOSE Price: $40.70 |
| 14 | 01550-0616B | BOLT Price: $2.87 |
