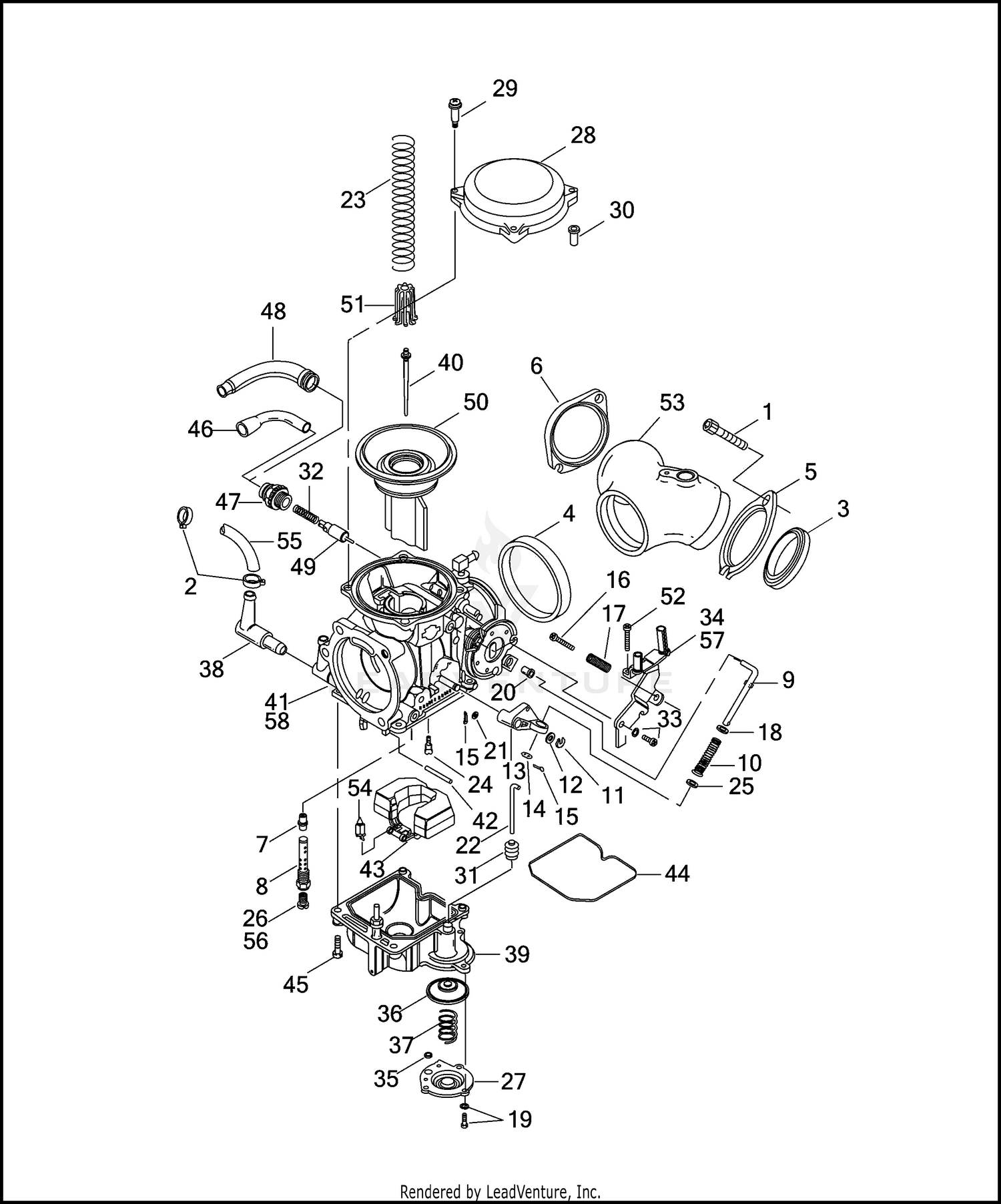

| Ref | Part Number | Description |
|---|
| 1 |
3275 |
SCREW 5/16-18 X 3/4 SOCKET HEAD (GRADE 8) Price: $2.45 |
| 2 |
10014 |
CLAMP Price: $1.22 |
| 3 |
26995-86B |
SEAL INTAKE MANIFOLD Price: $4.21 |
| 4 |
27002-89 |
SEAL RING Price: $10.52 |
| 5 |
27009-86A |
FLANGE MOUNTING (REAR) Price: $22.25 |
| 6 |
27010-86A |
FLANGE MOUNTING (FRONT) Price: $22.30 |
| 7 |
27100-88 |
NEEDLE JET Price: $10.21 |
| 8 |
27101-88 |
NEEDLE JET HOLDER Price: $10.21 |
| 9 |
27122-89 |
ROD Price: Call Us |
| 10 |
27123-89A |
SPRING Price: Call Us |
| 11 |
27124-89 |
E-CLIP Price: $0.91 |
| 12 |
27125-89 |
WASHER Not Available Price: |
| 13 |
27126-89 |
LEVER Not Available Price: |
| 14 |
27127-89 |
WASHER Not Available Price: |
| 15 |
27128-89 |
PIN Not Available Price: |
| 16 |
27130-90 |
IDLE SCREW Not Available Price: |
| 17 |
27136-90A |
SPRING Not Available Price: |
| 18 |
27137-81 |
WASHER Not Available Price: |
| 19 |
27146-89 |
SCREW W/ WASHER Price: $1.90 |
| 20 |
27147-89 |
COLLAR Not Available Price: |
| 21 |
27148-89 |
WASHER Not Available Price: |
| 22 |
27156-89 |
ROD Not Available Price: |
| 23 |
27162-89 |
SPRING Price: $4.32 |
| 24 |
27170-89 |
SLOW JET Price: $10.23 |
| 25 |
27231-98 |
COLLAR Price: Call Us |
| 26 |
27243-95 |
MAIN JET 1.90MM Price: $8.60 |
| 27 |
27260-00 |
PUMP HOUSING Not Available Price: |
| 28 |
27261-96 |
TOP CARBURETOR Price: $14.02 |
| 29 |
27262-96 |
SCREW TOP Not Available Price: |
| 30 |
27263-96 |
COLLAR Not Available Price: |
| 31 |
27311-76 |
BOOT ACCELERATOR PUMP Price: $4.34 |
| 32 |
27315-88A |
SPRING Not Available Price: |
| 33 |
27317-88 |
SCREW Not Available Price: |
| 34 |
27340-90 |
BRACKET THROTTLE CABLES Price: Call Us |
| 35 |
27360-76 |
O-RING Price: $1.53 |
| 36 |
27361-76A |
DIAPHRAGM ACCELERATOR PUMP Price: $19.43 |
| 37 |
27362-76 |
SPRING DIAPHRAGM Not Available Price: |
| 38 |
27371-76A |
FITTING Price: $28.57 |
| 39 |
27405-00 |
FLOAT CHAMBER ASSEMBLY Price: $137.65 |
| 40 |
27406-00 |
JET NEEDLE Not Available Price: |
| 41 |
27412-99D |
CARBURETOR Not Available Price: |
| 41 |
27415-99C |
CARBURETOR (CALIFORNIA ONLY) Not Available Price: |
| 42 |
27575-88A |
PIN Not Available Price: |
| 43 |
27576-92 |
FLOAT Price: $15.93 |
| 44 |
27577-92 |
O-RING FLOAT CHAMBER Price: $5.23 |
| 45 |
27579-88A |
SCREW Price: $2.55 |
| 46 |
27580-88 |
CABLE GUIDE Price: $4.76 |
| 47 |
27581-88 |
STARTER CAP Price: $5.75 |
| 48 |
27582-88 |
CABLE SEALING CAP Price: $4.17 |
| 49 |
27583-88 |
STARTER VALVE Price: $8.43 |
| 50 |
27585-88 |
VACUUM PISTON Price: $139.83 |
| 51 |
27586-88 |
SPRING SEAT Price: $7.00 |
| 52 |
27587-88 |
SCREW (DOMESTIC ONLY) Not Available Price: |
| 53 |
27613-99 |
MANIFOLD AIR INTAKE Not Available Price: |
| 54 |
27886-78A |
VALVE W/ CLIP Price: $39.77 |
| 55 |
61911-01 |
FUEL HOSE PREFORMED Price: $62.55 |
| 56 |
27275-96Y |
MAIN JET Not Available Price: |
| 57 |
27339-90 |
CABLE BRACKET Not Available Price: |
