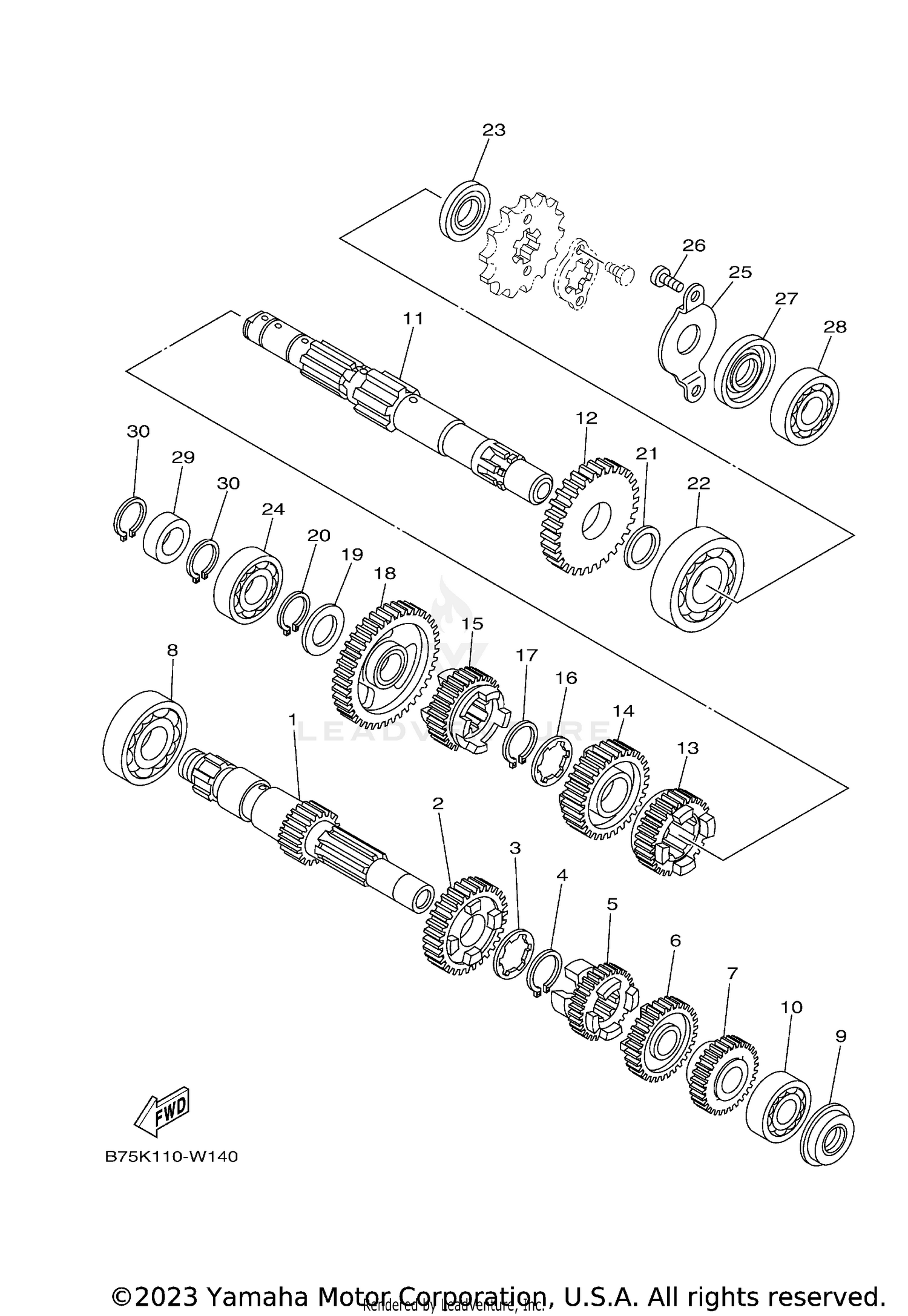

| Ref | Part Number | Description |
|---|
| 1 |
15A-17411-01-00 |
AXLE, MAIN (12T) Price: $74.99 |
| 2 |
15A-17151-01-00 |
GEAR, 5TH PINION (28T) Price: $46.99 |
| 3 |
90209-16209-00 |
WASHER Price: $8.49 |
| 4 |
93410-20038-00 |
CIRCLIP, S-TYPE Price: $4.05 |
| 5 |
5H0-17121-01-00 |
GEAR, 2ND PINION (22T) Price: $50.99 |
| 6 |
15A-17141-00-00 |
GEAR, 4TH PINION (25T) Price: $32.99 |
| 7 |
15A-17121-00-00 |
GEAR, 2ND PINION (19T) Price: $38.99 |
| 8 |
93306-20461-00 |
BEARING (B6204) This part replaces 93306-20401-00. Price: $43.99 |
| 9 |
93101-15101-00 |
OIL SEAL Price: $12.49 |
| 10 |
93306-20211-00 |
BEARING This part replaces 93306-20201-00. Price: $28.99 |
| 11 |
2JX-17402-00-00 |
DRIVE AXLE ASSY Price: $235.99 |
| 12 |
15A-17221-00-00 |
GEAR, 2ND WHEEL (34T) Price: $47.99 |
| 13 |
15A-17241-00-00 |
GEAR, 4TH WHEEL (26T) Price: $37.99 |
| 14 |
15A-17231-00-00 |
GEAR, 3RD WHEEL (29T) Price: $88.99 |
| 15 |
5MP-17261-00-00 |
GEAR, 6TH WHEEL (23T) This part replaces 1EV-17251-00-00. Price: $97.99 |
| 16 |
90209-18208-00 |
WASHER Price: $9.49 |
| 17 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 18 |
15A-17211-01-00 |
GEAR, 1ST WHEEL (34T) Price: $91.99 |
| 19 |
90201-17257-00 |
WASHER, PLATE Price: $8.49 |
| 20 |
99009-17400-00 |
CIRCLIP Price: $5.49 |
| 21 |
90201-225M9-00 |
WASHER, PLATE This part replaces 90201-220J8-00. Price: $11.49 |
| 22 |
93306-20580-00 |
BEARING Price: $64.99 |
| 23 |
93102-22389-00 |
OIL SEAL Price: $12.49 |
| 24 |
93306-20332-00 |
BEARING Price: $42.99 |
| 25 |
2JX-17471-00-00 |
PLATE, COVER Price: $24.99 |
| 26 |
98507-06010-00 |
SCREW, PAN HEAD Price: $3.85 |
| 27 |
93102-17187-00 |
OIL SEAL Price: $11.49 |
| 28 |
93306-20335-00 |
BEARING This part replaces 93306-20313-00. Price: $38.99 |
| 29 |
90560-17368-00 |
SPACER Price: $8.49 |
