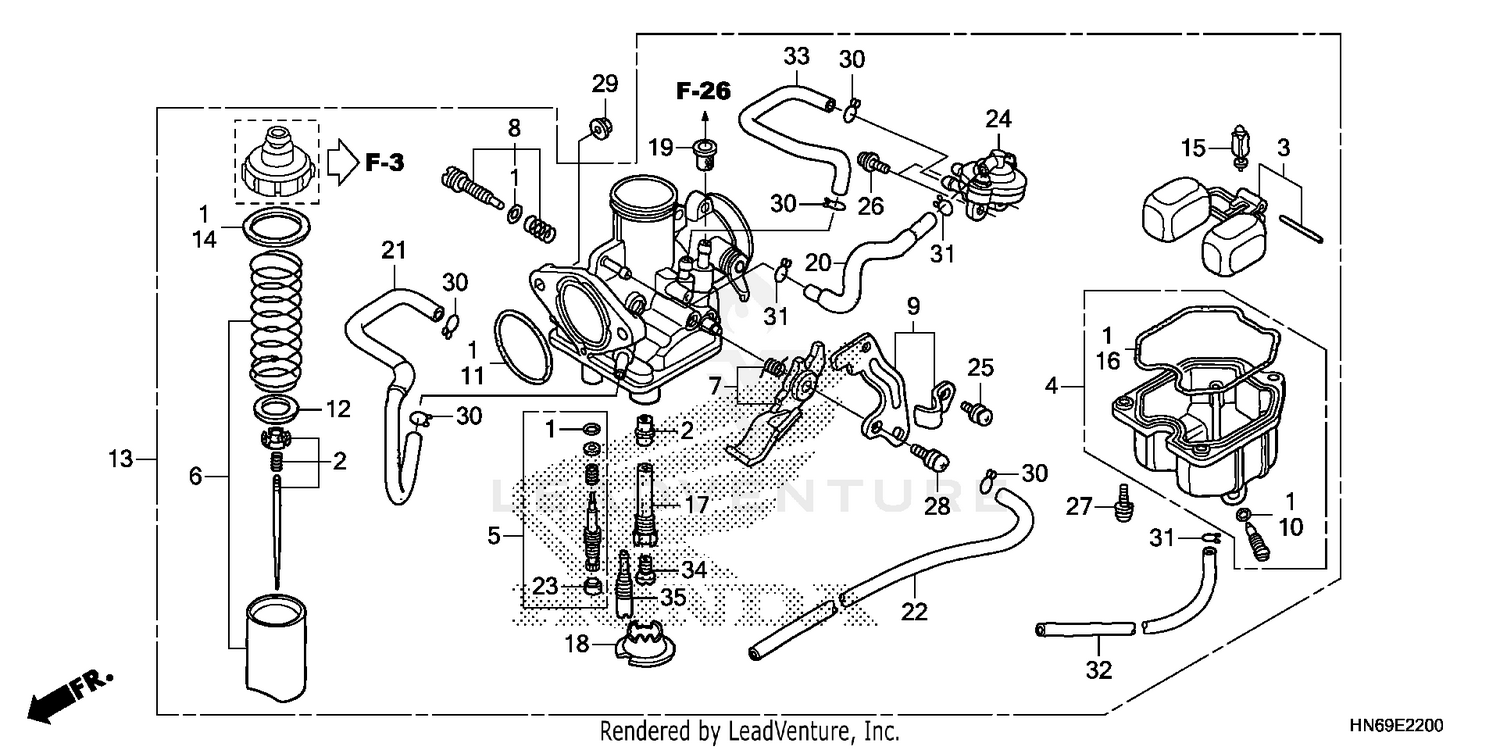

| Ref | Part Number | Description |
|---|
| 1 |
16010-KEB-G01 |
GASKET SET Price: $49.56 |
| 2 |
16012-HN6-F31 |
NEEDLE SET, JET Price: $24.27 |
| 3 |
16013-KRP-981 |
FLOAT SET Price: $10.13 |
| 4 |
16015-HN6-003 |
CHAMBER SET, FLOAT Price: $140.84 |
| 5 |
16016-HM8-B61 |
SCREW SET A Price: $24.49 |
| 6 |
16022-HN6-F31 |
VALVE SET, THROTTLE Price: $35.25 |
| 7 |
16025-HM8-B01 |
LEVER SET, CHOKE Price: $24.69 |
| 8 |
16028-KEB-G01 |
SCREW SET B Price: $15.07 |
| 9 |
16035-HM8-000 |
PLATE SET, STAY Price: $47.27 |
| 10 |
16075-GHB-640 |
O-RING (1.3X4.3) Price: $3.33 |
| 11 |
16075-GHB-B70 |
O-RING (2.4X29) Price: $9.82 |
| 12 |
16092-HM8-A01 |
PLATE B, VALVE Price: $6.42 |
| 13 |
16100-HN6-F31 |
CARBURETOR ASSY. (PDC1P A) Price: $199.55 |
| 14 |
16110-KN4-651 |
GASKET, TOP Price: $8.78 |
| 15 |
16155-KFR-701 |
VALVE, FLOAT Price: $33.02 |
| 16 |
16163-KCS-920 |
GASKET, FLOAT CHAMBER Price: $14.42 |
| 17 |
16165-HS0-A01 |
HOLDER, NEEDLE JET Price: $16.57 |
| 18 |
16168-382-014 |
HOLDER, JET Price: $11.87 |
| 19 |
16176-HM8-B01 |
SCREEN, FUEL STRAINER Price: $34.31 |
| 20 |
16197-HM8-000 |
TUBE Price: $3.05 |
| 21 |
16198-HM8-000 |
TUBE Price: $3.67 |
| 22 |
16199-HN6-A31 |
TUBE Price: $17.05 |
| 23 |
16312-KYK-911 |
CAP, ADJUSTING SCREW Price: $3.09 |
| 24 |
16510-HM8-B01 |
VALVE ASSY., AIR CUT Price: $92.80 |
| 25 |
93892-04008-08 |
SCREW-WASHER (4X8) Price: $1.20 |
| 26 |
93892-04014-08 |
SCREW-WASHER (4X14) Price: $1.15 |
| 27 |
93892-04016-08 |
SCREW-WASHER (4X16) Price: $0.77 |
| 28 |
93892-05012-08 |
SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
| 29 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 30 |
95002-02089 |
CLIP, TUBE (B1 8) Price: $1.18 |
| 31 |
95002-02659 |
CLIP, TUBE (B6.5) Price: $1.25 |
| 32 |
95005-35001-50M |
BULK HOSE, VACUUM (3.5X1000) (3.5X350) Price: $16.62 |
| 33 |
95005-45001-20M |
BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M) Price: $40.16 |
| 34 |
99101-GHB-0980 |
JET, MAIN (#98) Price: $8.04 |
