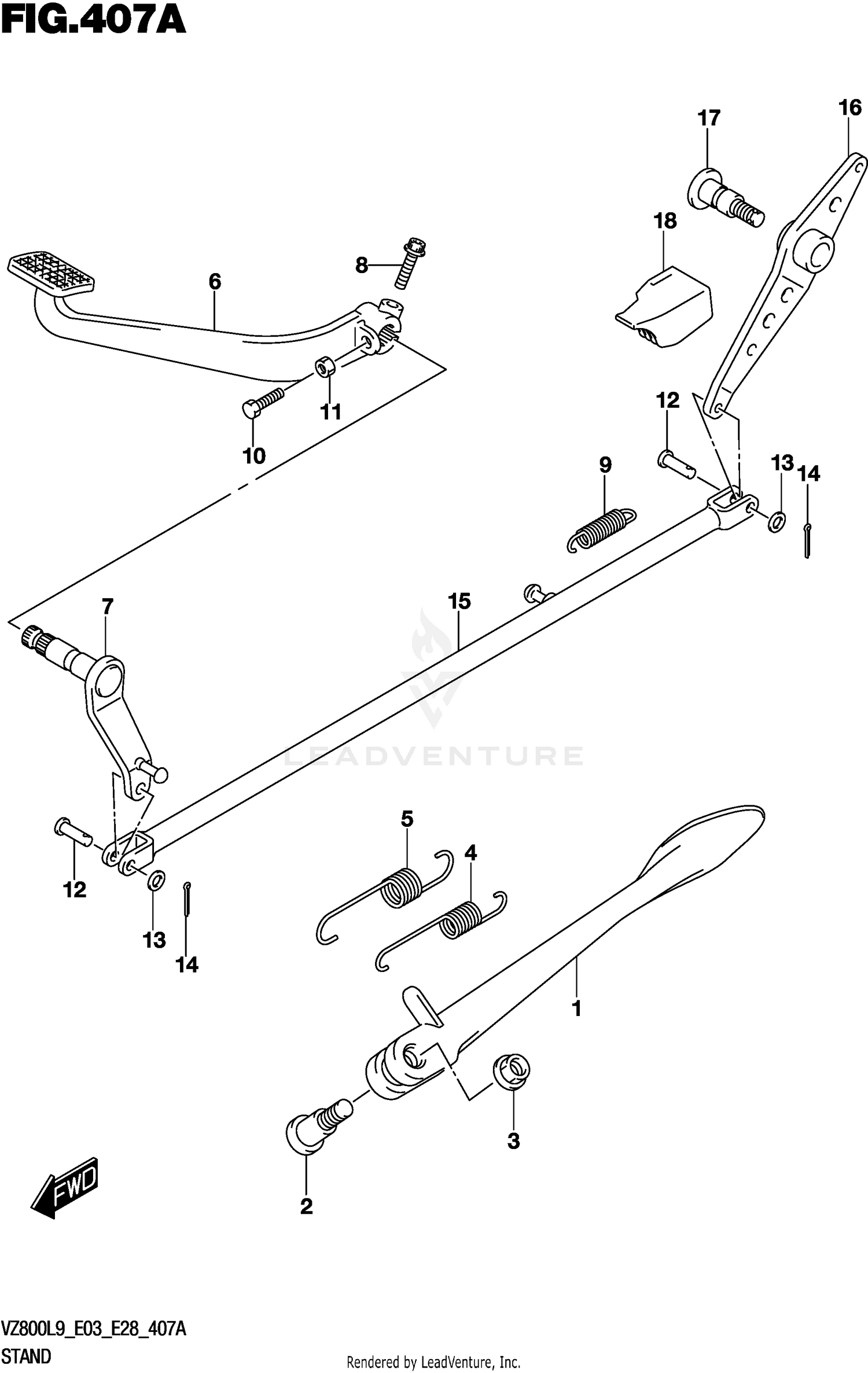

STAND
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42310-39G10 | STAND Price: $158.62 |
| 2 | 09111-10058 | BOLT (10X37.5) Price: $8.22 |
| 3 | 42321-03FK0 | NUT Price: $6.38 |
| 6 | 43110-41F00 | PEDAL Price: $130.45 |
| 7 | 43120-41F00 | ARM,BRAKE ROD Price: $66.90 |
| 8 | 07120-0625A | BOLT Price: $3.02 |
| 9 | 09443-12049 | SPRING Price: $12.47 |
| 10 | 01500-06207 | BOLT Price: $2.41 |
| 12 | 09200-06068 | PIN (6X18.2) Price: $5.01 |
| 13 | 08322-0106B | WASHER Price: $2.72 |
| 14 | 04111-2015A | PIN Price: $1.48 |
| 15 | 43130-41F00 | ROD,RR BRAKE FRONT Price: $67.05 |
| 16 | 43140-41F00 | LINK,REAR BRAKE Price: $66.06 |
| 17 | 43142-27C00 | SHAFT, BRAKE PEDAL Price: $28.50 |
