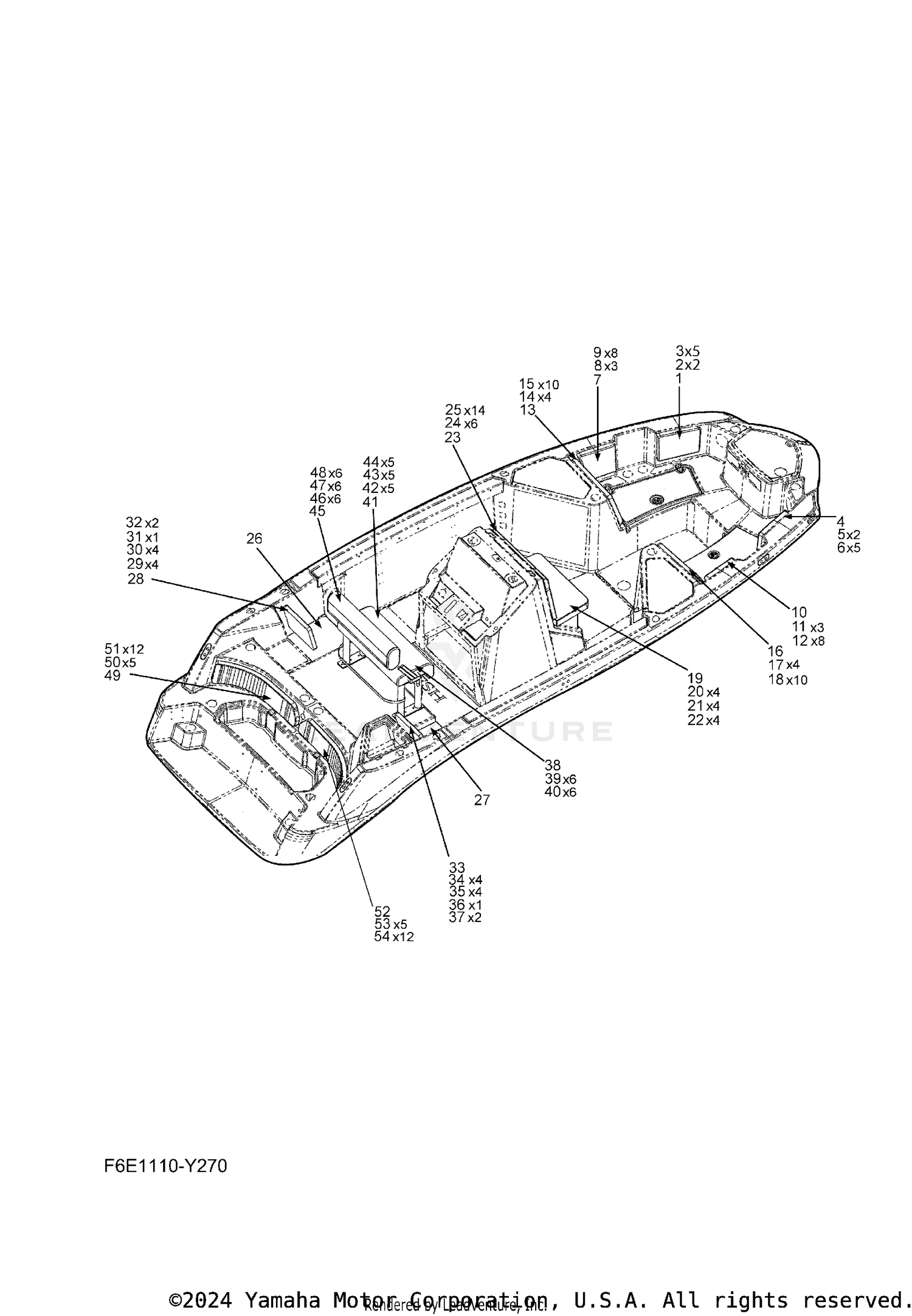

| Ref | Part Number | Description |
|---|
| 1 |
F6E-U35E1-00-00 |
BACKREST, MAIN 1 Price: $332.99 |
| 2 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 3 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 4 |
F6E-U35E2-00-00 |
BACKREST, MAIN 2 Price: $326.99 |
| 5 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 6 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 7 |
F6E-U35E3-00-00 |
BACKREST, MAIN 3 Price: $302.99 |
| 8 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 9 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 10 |
F6E-U35E4-00-00 |
BACKREST, MAIN 4 Price: $311.99 |
| 11 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 12 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 13 |
F6E-U35E5-00-00 |
BACKREST, MAIN 5 Price: $339.99 |
| 14 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 15 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 16 |
F6E-U35E6-00-00 |
BACKREST, MAIN 6 Price: $374.99 |
| 17 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 18 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 19 |
F6H-U3724-00-00 |
CUSHION SEAT, REAR Price: $351.99 |
| 20 |
90209-14SA3-00 |
WASHER Price: $5.99 |
| 21 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 22 |
90170-14S00-00 |
NUT Price: $4.99 |
| 23 |
F6H-U3766-00-00 |
BACKREST 1 Price: $418.99 |
| 24 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 25 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 26 |
F6A-U371D-10-00 |
CUSHION 1 Price: $324.99 |
| 27 |
F6A-U371E-10-00 |
CUSHION 2 Price: $328.99 |
| 28 |
F6A-U3791-10-00 |
BACK REST 1 Price: $315.99 |
| 29 |
F1C-U5192-00-00 |
SNAP Price: $0.70 |
| 30 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 31 |
F2D-U1543-00-00 |
EYE STRAP Price: $19.99 |
| 32 |
F1C-U5192-00-00 |
SNAP Price: $0.70 |
| 33 |
F6A-U3795-10-00 |
BACK REST 2 Price: $331.99 |
| 34 |
F1C-U5192-00-00 |
SNAP Price: $0.70 |
| 35 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 36 |
F2D-U1543-00-00 |
EYE STRAP Price: $19.99 |
| 37 |
F1C-U5192-00-00 |
SNAP Price: $0.70 |
| 38 |
F6A-U3712-00-00 |
BASE, DRIVER SEAT Price: $1,296.99 |
| 39 |
90152-14S20-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 40 |
90209-14SA6-00 |
WASHER Price: $5.99 |
| 41 |
F6A-U142E-10-00 |
CUSHION, PAD 1 Price: $522.99 |
| 42 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 43 |
90170-14S00-00 |
NUT Price: $4.99 |
| 44 |
90209-14SA3-00 |
WASHER Price: $5.99 |
| 45 |
F6A-U3796-10-00 |
BACK REST 3 Price: $816.99 |
| 46 |
90151-14S16-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 47 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 48 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 49 |
F6A-U521C-10-00 |
PAD 1 Price: $356.99 |
| 50 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 51 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 52 |
F6A-U521D-10-00 |
PAD 2 Price: $400.99 |
| 53 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
