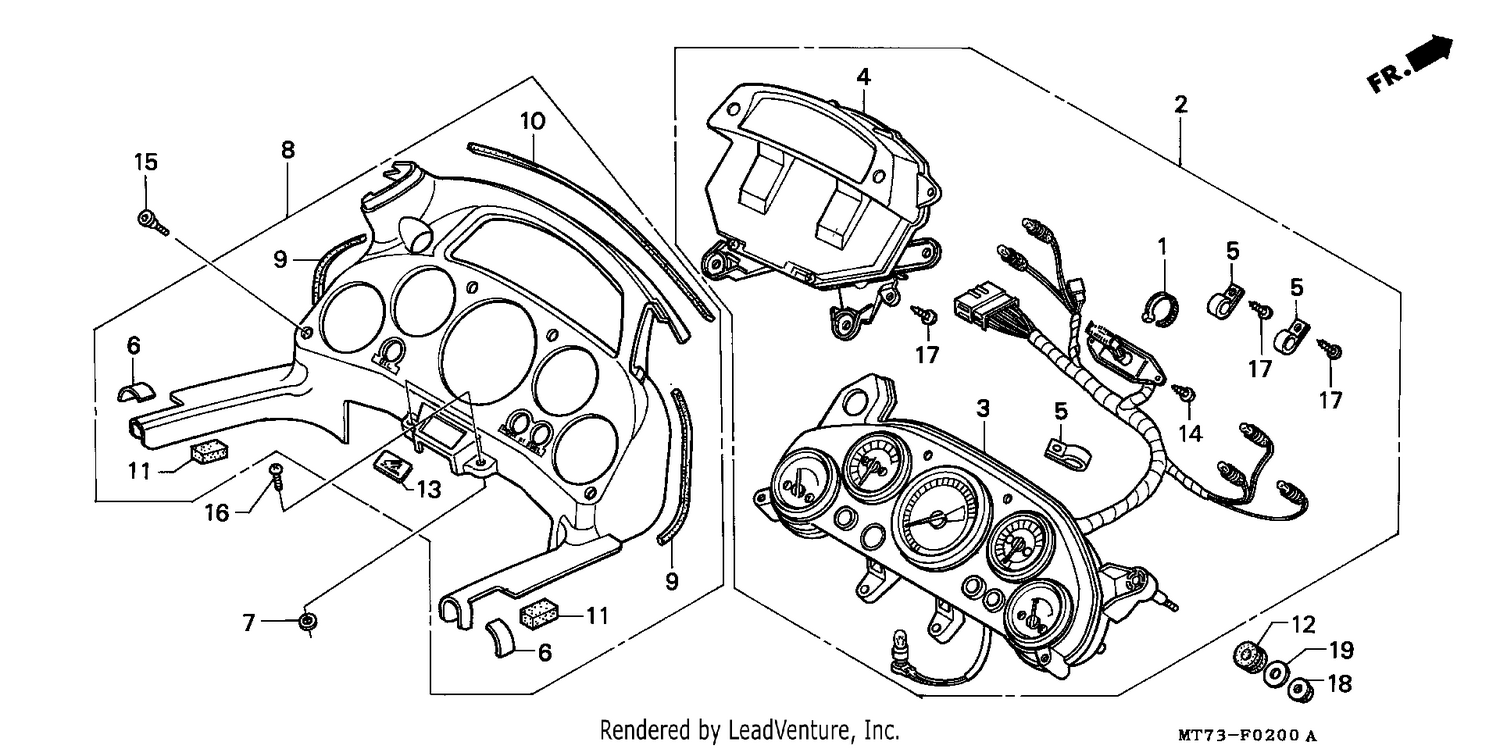

METER (ASSY.)/METER PANEL

METER (ASSY.)/METER PANEL

Parts (18)

RefPart NumberDescription
1 35701MG9950 BAND (BLACK 3.5X140) Price: Call Us
2 37100MT7611 METER ASSY., COMBINATION Price: Call Us
3 37110MT7611 METER, SUB COMBINATION Price: Call Us
4 37200MT7611 SPEEDOMETER ASSY. Price: Call Us
5 37215KM1670 CLAMP Price: Call Us
6 50385KBA900 CUSHION A Price: Call Us
7 63174ZB9003 PACKING, PIN Price: Call Us
8 64231MT7000 PANEL COMP., METER Price: Call Us
9 64233MT7300 RUBBER, METER PANEL Price: Call Us
10 64601MT7000 RUBBER, METER SEAL Price: Call Us
11 83705MT3300 RUBBER, SIDE COVER SPONGE Price: Call Us
12 84703MN5000 RUBBER, FUEL TANK MOUNTING Price: Call Us
13 86150MR5300 EMBLEM, WING MARK Price: Call Us
14 90104MT7003 SCREW-WASHER, 3X8 Price: Call Us
15 90107MN4000 SCREW, PAN, 5X14 Price: Call Us
16 90115KW7900 SCREW, VISOR SPECIAL SETTING Price: Call Us
17 9391324420 SCREW, TAPPING, 4X16 (PO) Price: Call Us
18 9405006000 NUT, FLANGE, 6MM Price: Call Us
