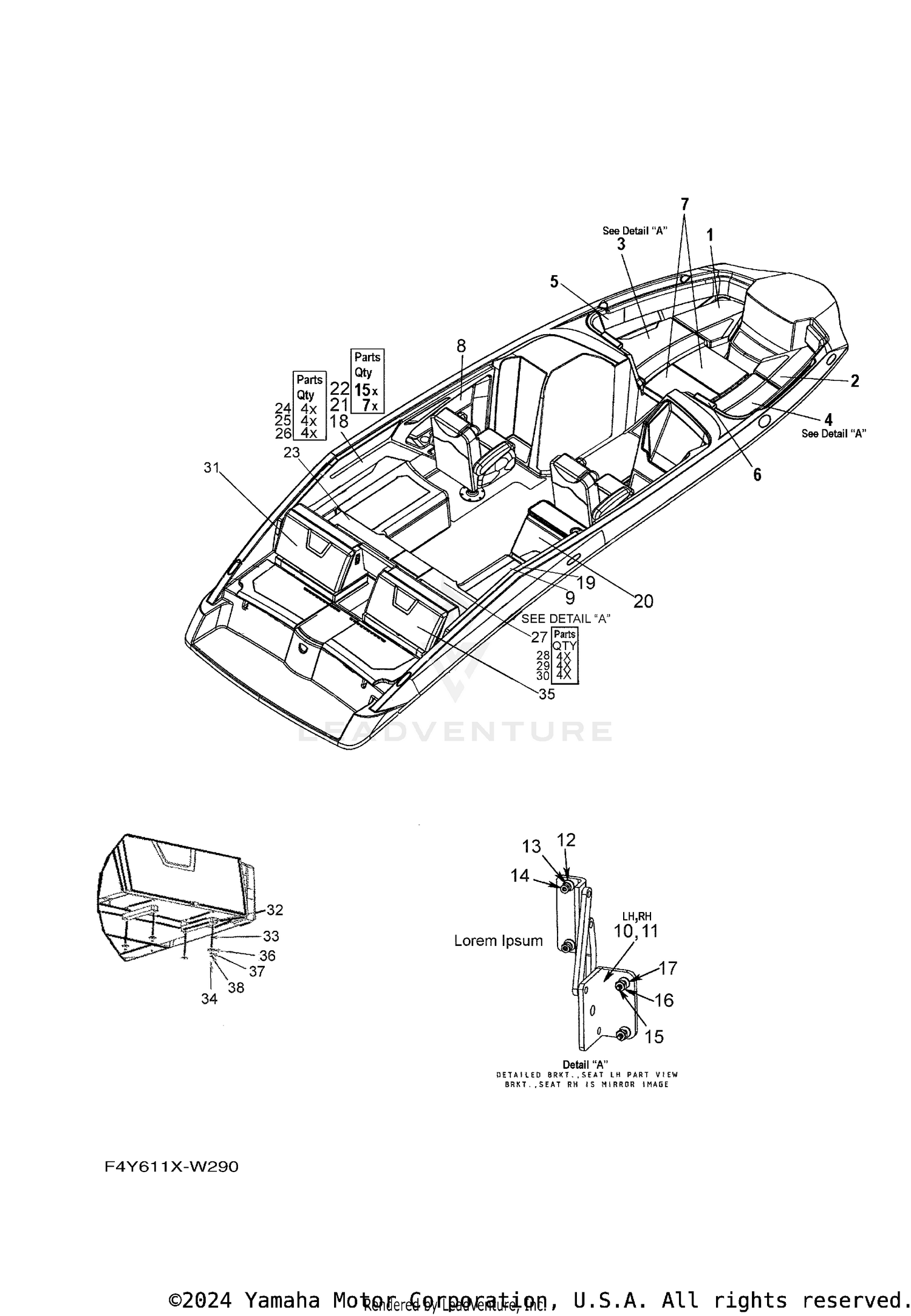

| Ref | Part Number | Description |
|---|
| 1 |
F4Y-U35A5-30-00 |
CUSHION, FORE 5 Price: $534.99 |
| 2 |
F4Y-U35A6-30-00 |
CUSHION, FORE 6 Price: $563.99 |
| 3 |
F4Y-U35A1-30-00 |
CUSHION, FORE 1 Price: $403.99 |
| 4 |
F4Y-U35A2-30-00 |
CUSHION SEAT, FRONT Price: $396.99 |
| 5 |
F4Y-U3796-30-00 |
BACK REST 3 Price: $763.99 |
| 6 |
F4Y-U3798-30-00 |
BACK REST, 4 Price: $721.99 |
| 7 |
F4Y-U372F-20-00 |
CUSHION 5 Price: $367.99 |
| 8 |
F4Y-U371D-30-00 |
CUSHION 1 Price: $575.99 |
| 9 |
F4Y-U3713-50-00 |
CUSHION,SEAT Price: $422.99 |
| 10 |
F3F-U3714-21-00 |
BRACKET,SEAT Price: $31.99 |
| 11 |
F3F-U3714-31-00 |
BRACKET,SEAT Price: $25.99 |
| 12 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 13 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 14 |
90170-10S00-00 |
NUT Price: $5.99 |
| 15 |
90151-10S16-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 16 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 17 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 18 |
F4Y-U3791-30-00 |
BACK REST 1 Price: $527.99 |
| 19 |
F4Y-U35E2-50-00 |
BACKREST, MAIN 2 Price: $682.99 |
| 20 |
F4Y-U36A1-50-00 |
PAD 1 Price: $216.99 |
| 21 |
F1C-U5195-00-00 |
CLIP, 1 Price: $7.99 |
| 22 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 23 |
F4Y-U35A8-01-00 |
CUSHION,FORE 8 Price: $345.99 |
| 24 |
90209-14SA3-00 |
WASHER Price: $5.99 |
| 25 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 26 |
90170-14S00-00 |
NUT Price: $4.99 |
| 27 |
F4Y-U35A7-01-00 |
CUSHION,FORE 7 Price: $380.99 |
| 28 |
90209-14SA3-00 |
WASHER Price: $5.99 |
| 29 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 30 |
90170-14S00-00 |
NUT Price: $4.99 |
| 31 |
F4Y-U35L2-00-00 |
BACKREST AFT 2 Price: $1,112.99 |
| 32 |
F4Y-U471E-00-00 |
SPACER 1 Price: $655.99 |
| 33 |
90116-04S80-00 |
BOLT, STUD Price: $2.95 |
| 34 |
F3F-U514F-00-00 |
CAP Price: $5.99 |
| 35 |
F4Y-U35L1-00-00 |
BACKREST AFT 1 Price: $1,122.99 |
| 36 |
90209-14SA3-00 |
WASHER Price: $5.99 |
| 37 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
