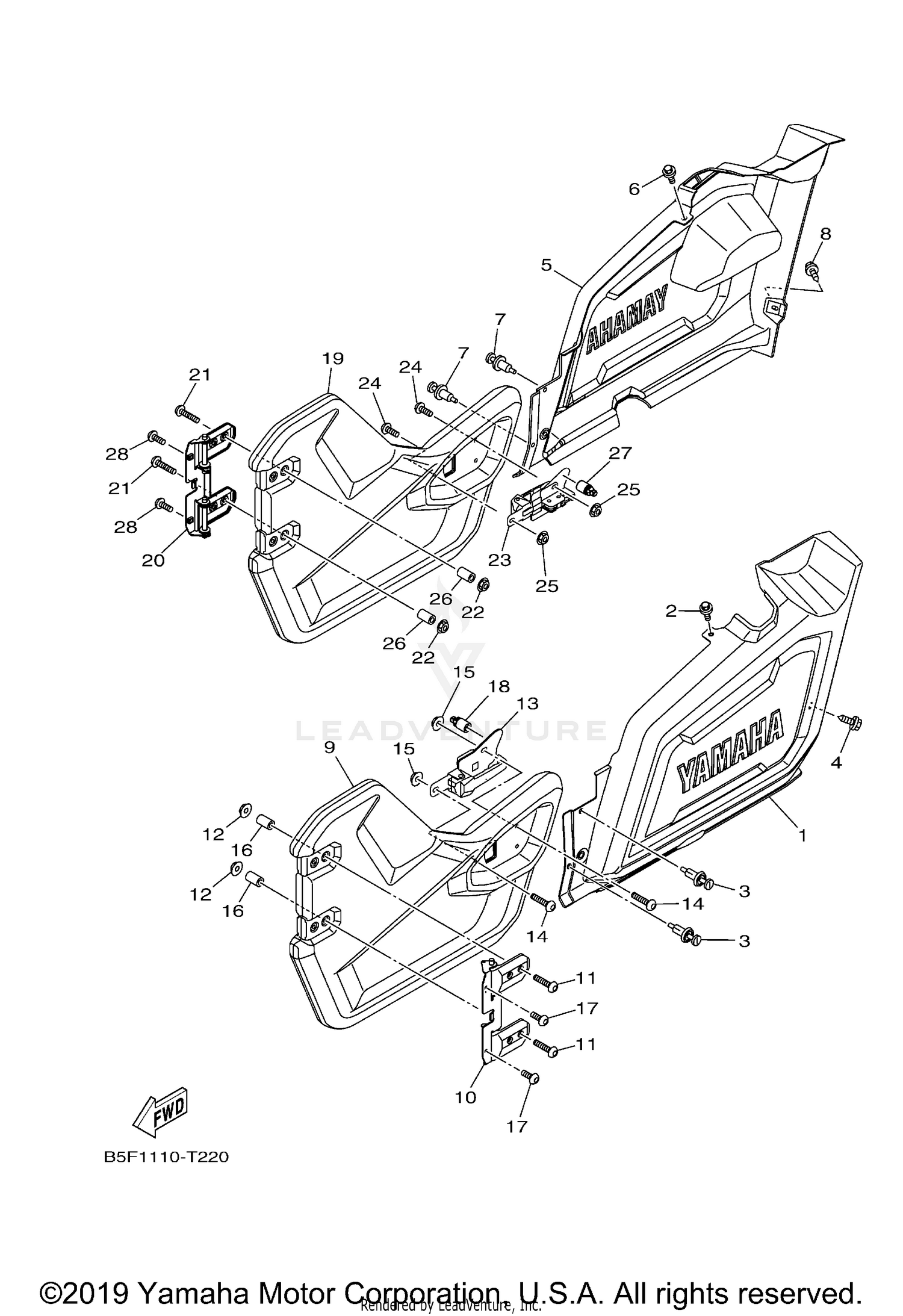

| Ref | Part Number | Description |
|---|
| 1 |
1XD-F1721-00-00 |
COVER, SIDE 2 Price: $33.99 |
| 2 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 3 |
90269-07805-00 |
RIVET Price: $1.75 |
| 4 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 5 |
1XD-F1731-00-00 |
COVER, SIDE 3 Price: $31.99 |
| 6 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 7 |
90269-07805-00 |
RIVET Price: $1.75 |
| 8 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 9 |
1XD-K8557-11-00 |
PNL., DOOR FR. LH Price: $80.99 |
| 10 |
1XD-F4772-10-00 |
HINGE ASSY Price: $43.99 |
| 11 |
90109-06897-00 |
BOLT Price: $0.95 |
| 12 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 13 |
2MB-K7171-00-00 |
BODY, LATCH 1 Price: $75.99 |
| 14 |
90111-06086-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 15 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 16 |
90387-06304-00 |
COLLAR Price: $3.20 |
| 17 |
5B4-F1722-00-00 |
BOLT 2 Price: $1.50 |
| 18 |
2MB-F8378-00-00 |
PAD Price: $2.70 |
| 19 |
1XD-K8557-11-00 |
PNL., DOOR FR. LH Price: $80.99 |
| 20 |
1XD-F4772-10-00 |
HINGE ASSY Price: $43.99 |
| 21 |
90109-06897-00 |
BOLT Price: $0.95 |
| 22 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 23 |
2MB-K7172-00-00 |
BODY, LATCH 2 Price: $75.99 |
| 24 |
90111-06086-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 25 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 26 |
90387-06304-00 |
COLLAR Price: $3.20 |
| 27 |
2MB-F8378-00-00 |
PAD Price: $2.70 |
