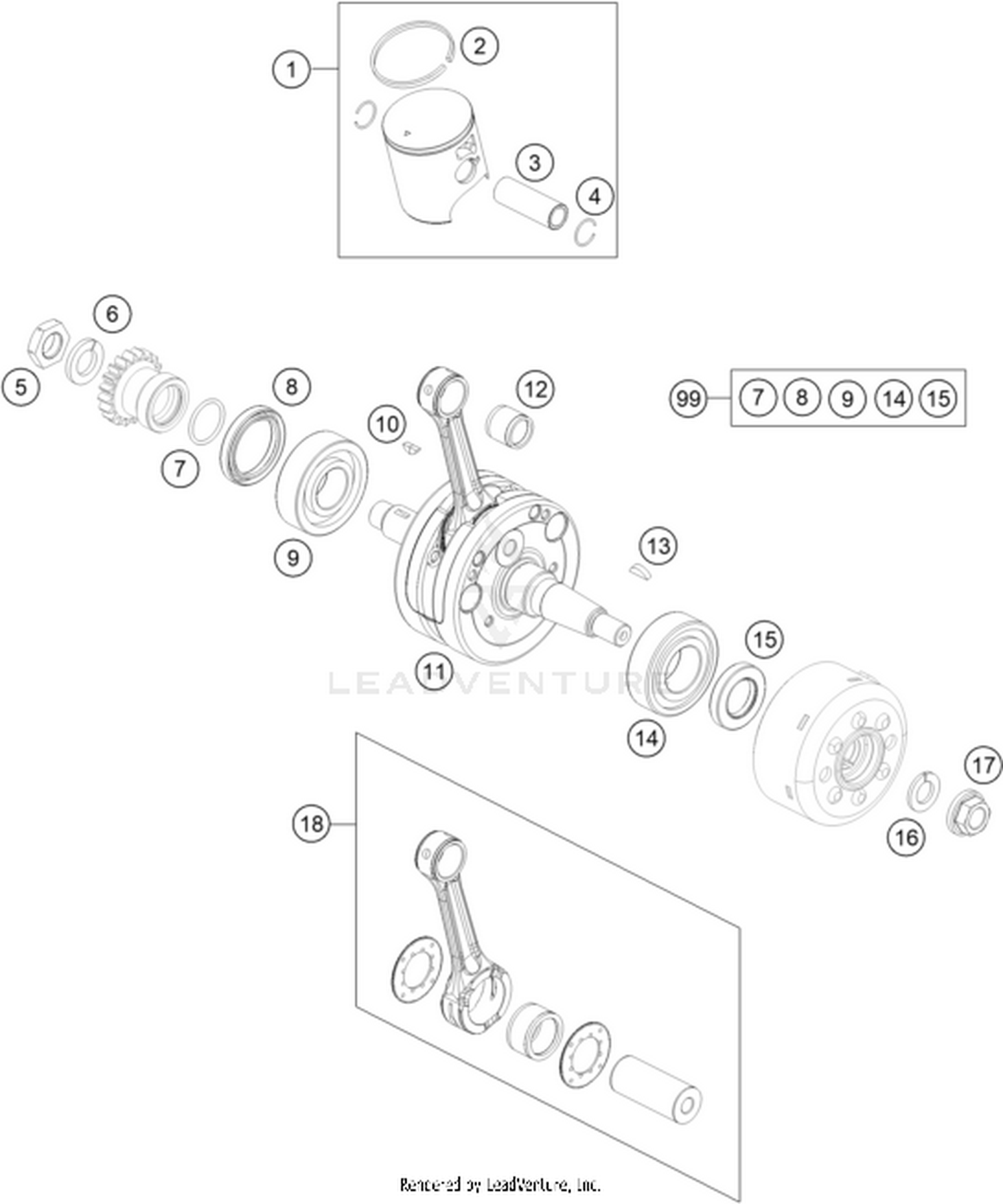

| Ref | Part Number | Description |
|---|
| 1 |
47230007300 |
I Piston cpl. I Price: Call Us 47230007300 I |
| 2 |
47030030000 |
PISTON RING 85 SX 2003 Price: Call Us |
| 3 |
47230033300 |
Piston pin Price: Call Us |
| 4 |
47030074000 |
WIRE LOCK RING 85 SX 2003 Price: Call Us |
| 5 |
0910001400600S |
Nut, primary gear This part replaces 47230029000. Price: Call Us |
| 6 |
47230029014 |
Detent edged ring M14 Price: Call Us |
| 7 |
0770021020 |
O-RING 21,00X2,00 NBR70 This part replaces 0770210020. Price: Call Us |
| 8 |
0760304261 |
OIL SEAL Price: Call Us |
| 9 |
47030083000 |
BALL BEARING 22X52X15 Price: Call Us |
| 10 |
0888030037 |
WOODRUFF KEY DIN6888-3X3,7 Price: Call Us |
| 12 |
47030034000 |
NEEDLE BEARING KBK 14X18X17 03 Price: Call Us |
| 13 |
0888030050 |
WOODRUFF KEY DIN6888-3X5X13 Price: Call Us |
| 15 |
47030076100 |
SEAL SHAFT RING 20X35X6 BTSL Price: Call Us |
| 16 |
50230029012 |
LOCKING RING VSK 12 Price: Call Us |
| 17 |
49030021100 |
Collar nut, M12x1, right This part replaces 49030021000. Price: Call Us |
