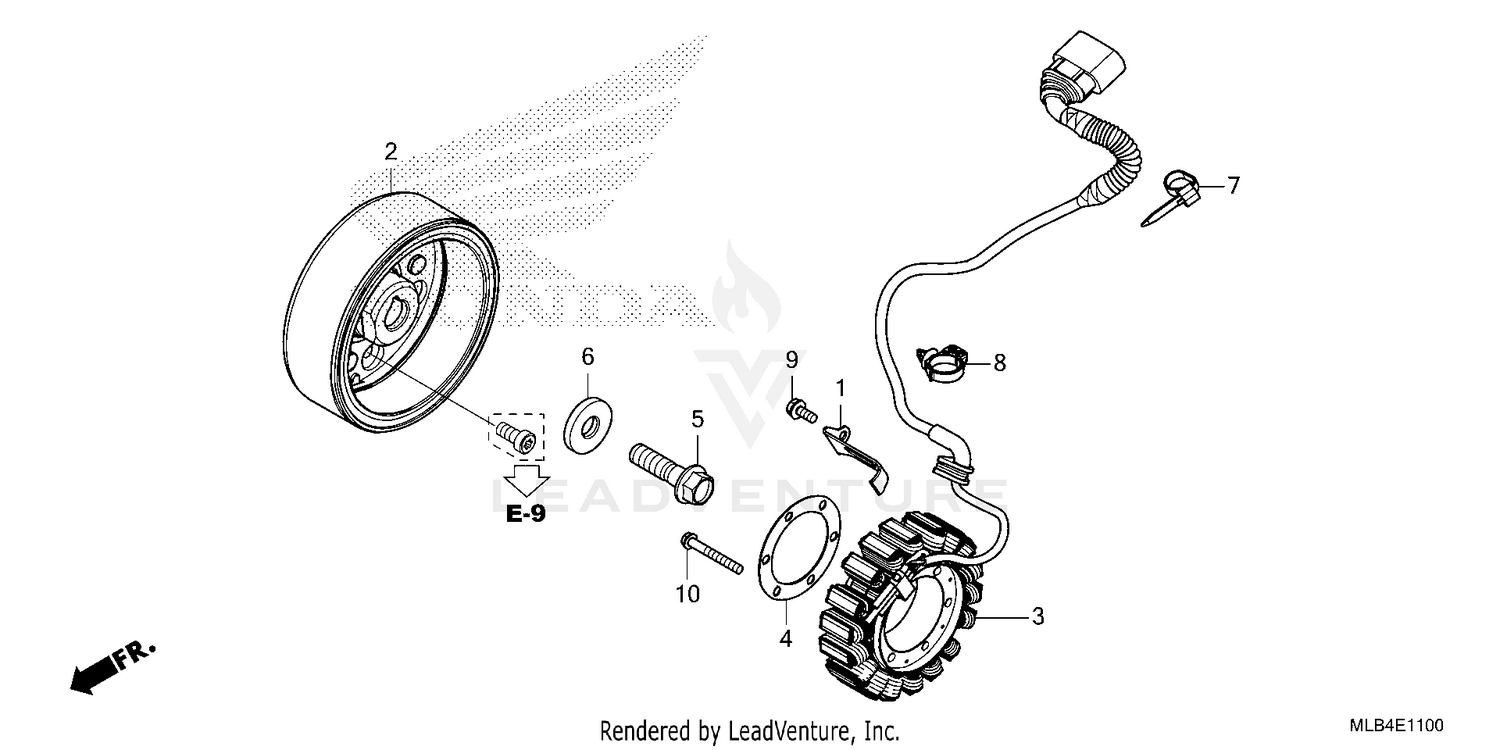

GENERATOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11333-MLB-D00 | CLAMP, ACG CORD Price: $3.09 |
| 2 | 31110-MLB-D01 | FLYWHEEL COMP Price: $370.15 |
| 3 | 31120-MLB-D01 | STATOR Price: $432.93 |
| 4 | 31125-MKT-D00 | PLATE, STATOR Price: $3.38 |
| 5 | 90025-MEW-920 | BOLT, FLANGE (12X50) (UBS) Price: $7.44 |
| 6 | 90403-MEW-920 | WASHER (12.5X34X5) Price: $5.35 |
| 7 | 90650-KV6-003 | BAND, WIRE (Honda Code 2687788) Price: $3.91 |
| 8 | 90652-HC4-003 | CLAMP, HARNESS Price: $7.47 |
| 9 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
