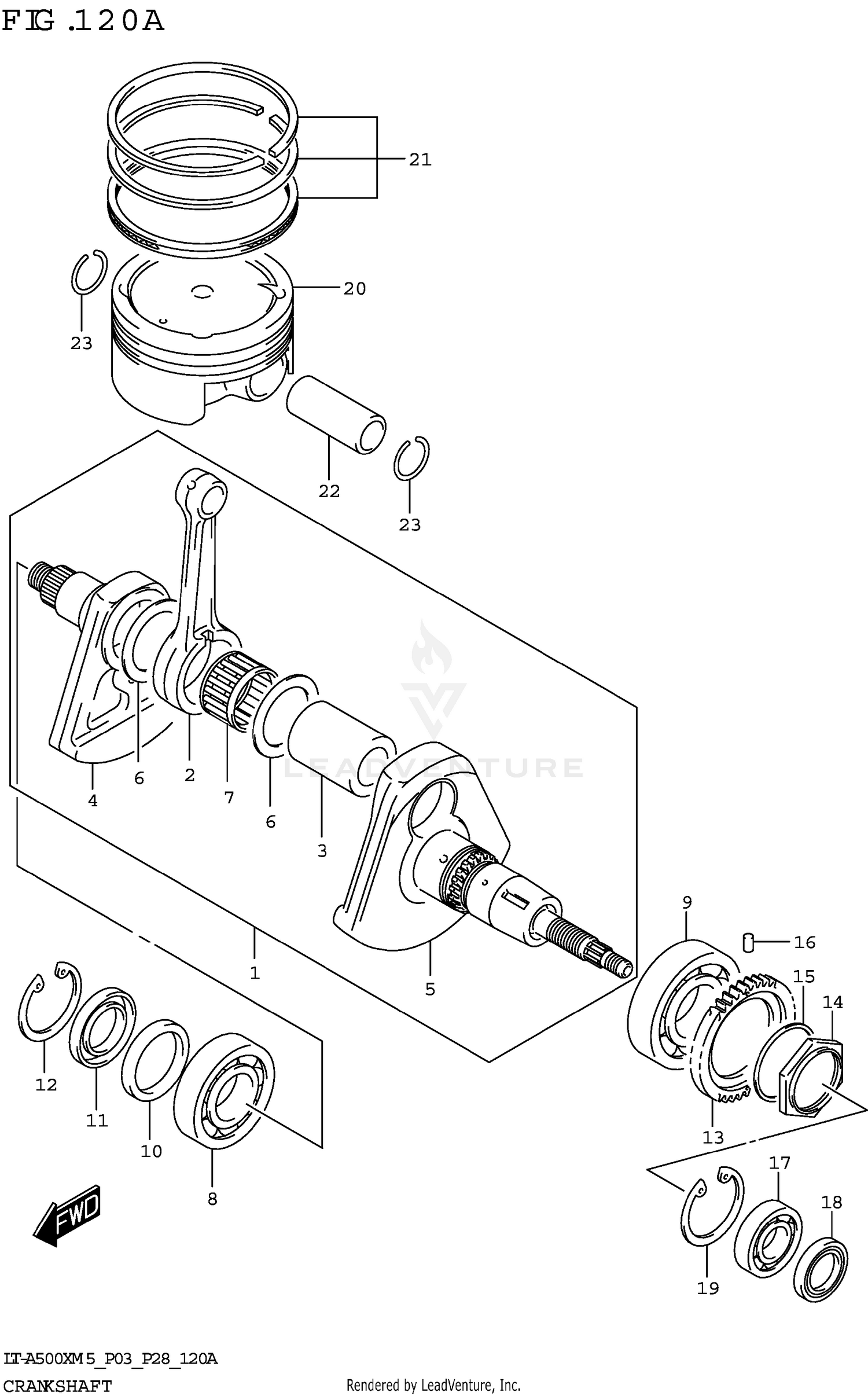

CRANKSHAFT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12200-11H00 | CRANKSHAFT ASSY Price: $1,016.15 |
| 8 | 09262-40008 | BEARING (40X80X18) Price: $84.34 |
| 9 | 09262-45007 | BEARING (45X85X19) Price: $109.80 |
| 10 | 09282-34003 | SEAL,OIL (34X49X6) Price: $46.81 |
| 11 | 09282-34001 | OIL SEAL (34X52X6) Price: $39.67 |
| 12 | 08331-41529 | CIRCLIP Price: $4.68 |
| 14 | 12664-31G00 | NUT,CRANK BALANCER DRIVE GEAR Price: $25.97 |
| 15 | 09160-45006 | WASHER (45X60X1.2) Price: $6.80 |
| 16 | 09261-05005 | PIN (5X8) Price: $1.73 |
| 17 | 09262-25006 | BEARING (25X47X8) Price: $31.10 |
| 18 | 09283-25095 | OIL SEAL (25X42X6) Price: $32.54 |
| 19 | 08331-41479 | CIRCLIP Price: $2.80 |
| 20 | 12111-31H10-0F0 | PISTON Price: $82.65 |
| 21 | 12140-03G20 | RING SET,PISTON Price: $112.00 |
| 22 | 12151-24A00 | PIN,PISTON Price: $27.22 |
