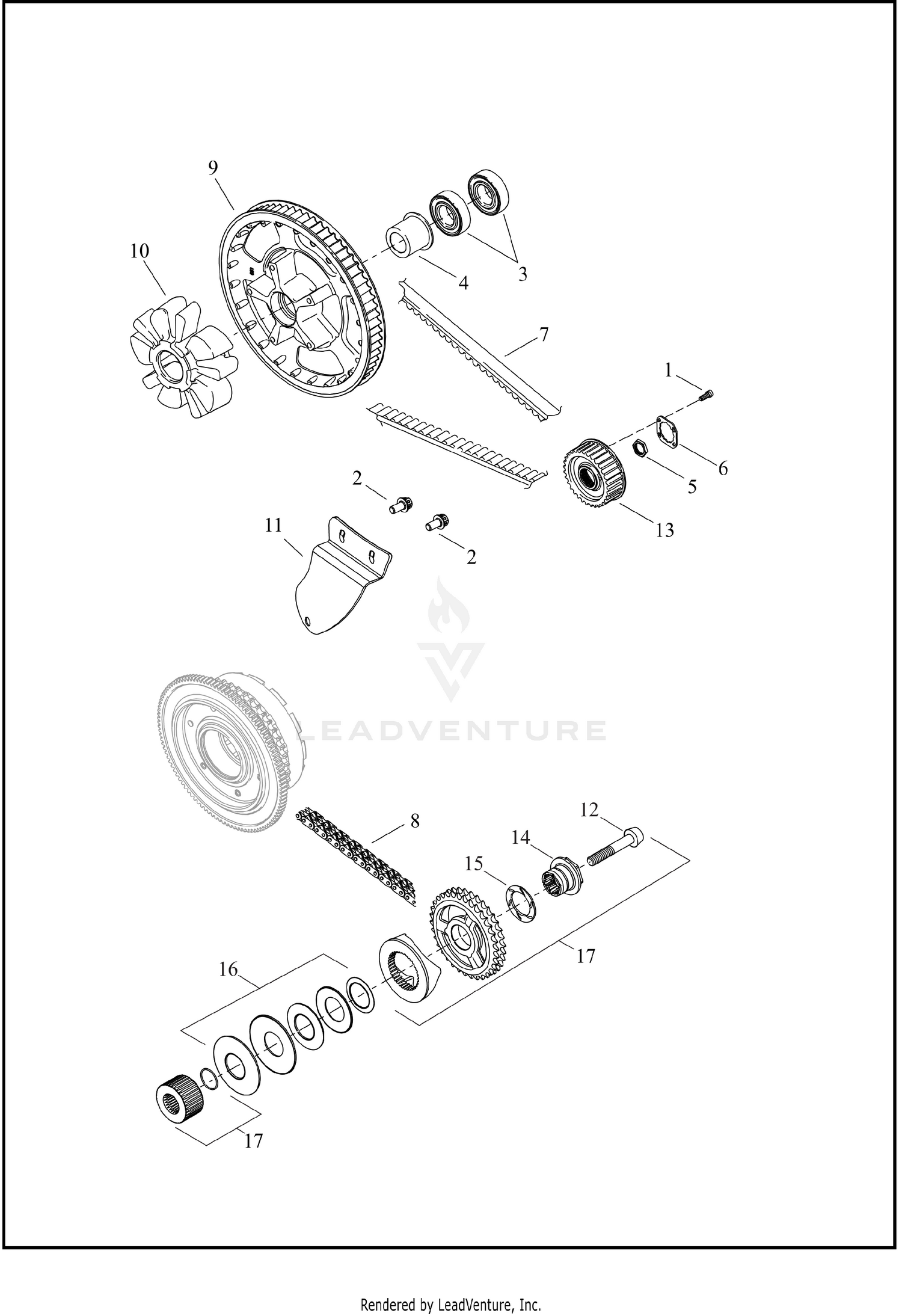

BELT, CHAIN AND SPROCKETS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3594 | SCREW,HEX SOCKET Price: $0.59 |
| 2 | 10500245 | SCREW,CUST,FENDER MT Price: $24.86 |
| 3 | 9276B | BEARING,ROLL ELEM,NON-ABS WHEEL BEARING Price: $24.52 |
| 5 | 35241-06 | PT DRLN MISC CMPNT,X Price: $11.69 |
| 6 | 35242-06 | PT DRLN MISC CMPNT,X Price: $5.21 |
| 8 | 40037-07 | CHAIN,PRI,DRV Price: $91.92 |
| 11 | 60300256 | GUARD,BELT/CHN,131RR Price: $21.13 |
| 15 | 40100064 | THRUST WASHER Price: $18.03 |
| 16 | 83936-09A | SPROCKET,ENGN,COMP,SPRING PACK SUB-ASSY Price: $105.05 |
