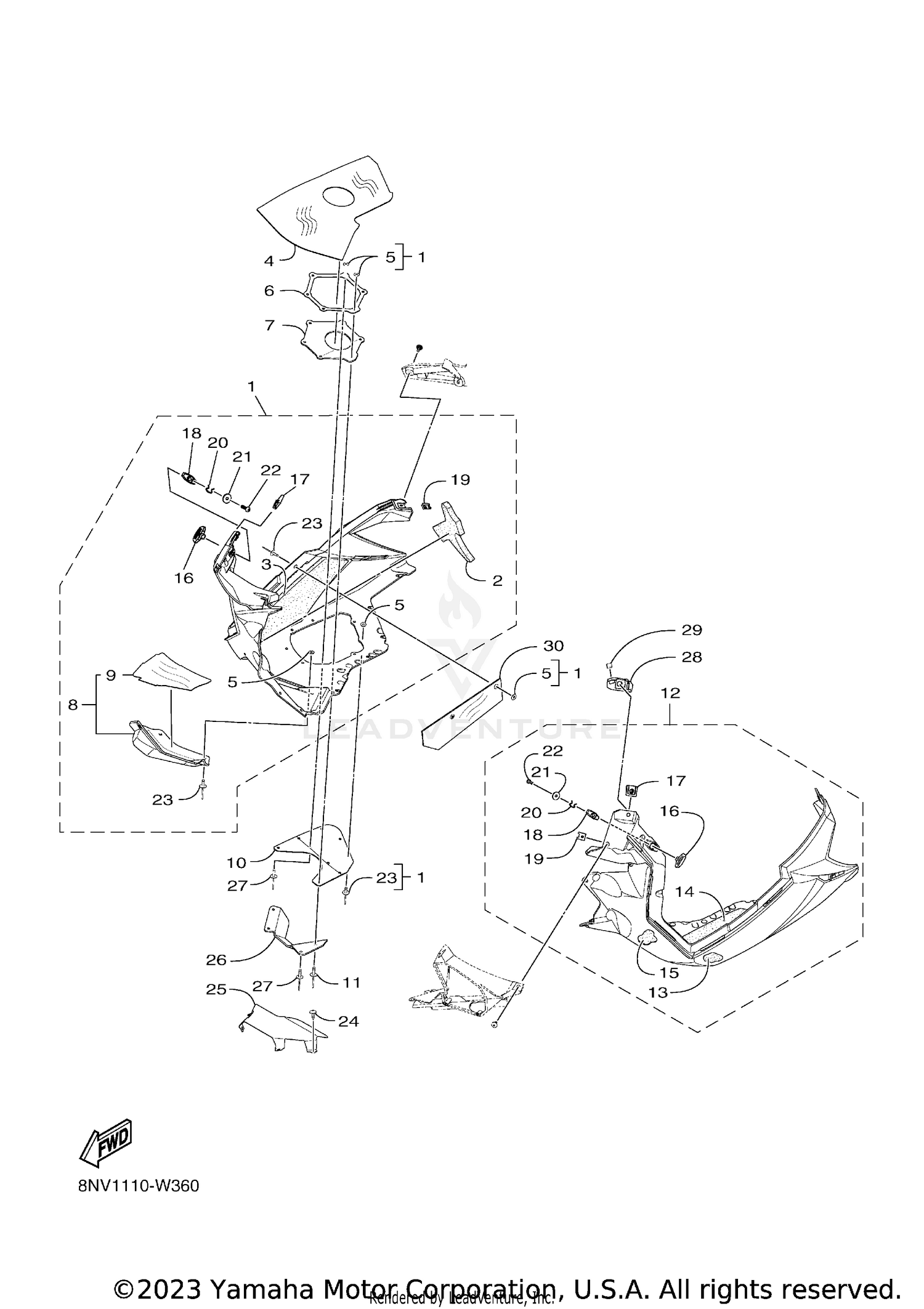

| Ref | Part Number | Description |
|---|
| 1 |
8ND-F198H-00-00 |
HOOD 4 Price: $135.99 |
| 2 |
8ND-K7276-00-00 |
DAMPER, NOISE 16 Price: $27.99 |
| 3 |
8KC-K7275-00-00 |
DAMPER, NOISE 15 Price: $20.99 |
| 4 |
8ND-K7555-00-00 |
PROTECTOR 5 Price: $44.99 |
| 6 |
8ND-K8181-00-00 |
PLATE 1 Price: $18.49 |
| 7 |
8ND-G1138-00-00 |
SEAL, EXT. 1 Price: $44.99 |
| 10 |
8ND-K7551-00-00 |
PROTECTOR 1 Price: $36.99 |
| 11 |
8ND-K7155-00-00 |
RIVET 1 Price: $1.80 |
| 12 |
8KC-K8130-50-00 |
SHELL SIDE PANEL ASSY 1 Price: $168.99 |
| 13 |
8KC-K7272-00-00 |
DAMPER, NOISE 12 Price: $19.49 |
| 14 |
8KC-K7271-00-00 |
DAMPER, NOISE 11 Price: $21.99 |
| 15 |
8KC-K7273-00-00 |
DAMPER, NOISE 13 Price: $21.99 |
| 24 |
8KC-RA202-00-00 |
SCREW, TAPPING 1/4-20X0.5 Price: $1.75 |
| 25 |
8ND-F199H-02-00 |
SHIELD,HEAT Price: $64.99 |
| 26 |
8ND-K7552-00-00 |
PROTECTOR 2 Price: $65.99 |
| 27 |
8LJ-RA529-00-00 |
RIVET, 17 Price: $2.45 |
| 28 |
8NV-K7373-00-00 |
PROTECTOR Price: $41.99 |
| 29 |
8NV-RA346-00-00 |
NUT, SPRING Price: $1.15 |
