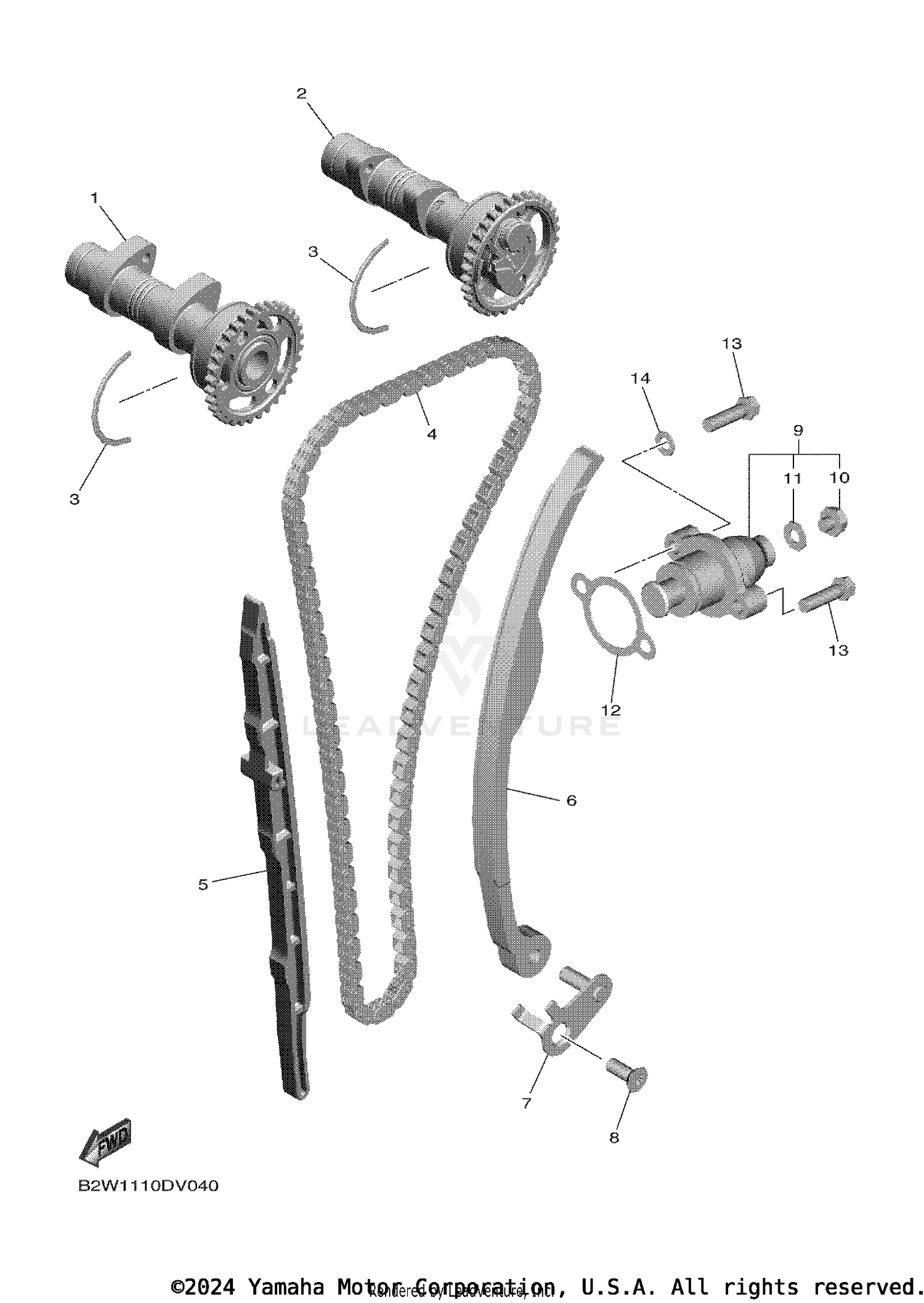

CAMSHAFT & CHAIN
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B2W-12170-00-00 | CAMSHAFT ASSY 1 Price: $286.99 |
| 2 | B2W-12180-00-00 | CAMSHAFT ASSY 2 Price: $311.99 |
| 3 | 93440-41178-00 | CIRCLIP Price: $4.30 |
| 4 | 94591-57118-00 | CHAIN (98XRH2010-118M) Price: $39.99 |
| 5 | B2W-12251-00-00 | DAMPER, CHAIN 1 Price: $22.99 |
| 6 | 33D-12252-01-00 | DAMPER, CHAIN 2 Price: $136.99 |
| 7 | 1SL-12233-00-00 | PLATE, GUIDE STOPPER 1 Price: $35.99 |
| 8 | 90151-06023-00 | SCREW, COUNTERSUNK This part replaces 90151-06024-00. Price: $9.49 |
| 9 | 5TA-12210-30-00 | TENSIONER ASSY, CAM CHAIN Price: $139.99 |
| 10 | 5EL-12228-00-00 | BOLT Price: $3.50 |
| 11 | 5EL-12214-00-00 | GASKET Price: $8.49 |
| 12 | 4FM-12213-00-00 | GASKET, TENSIONER CASE Price: $9.49 |
| 13 | 95E32-06025-00 | BOLT, FLANGE DEEP RECESS Price: $0.50 |
