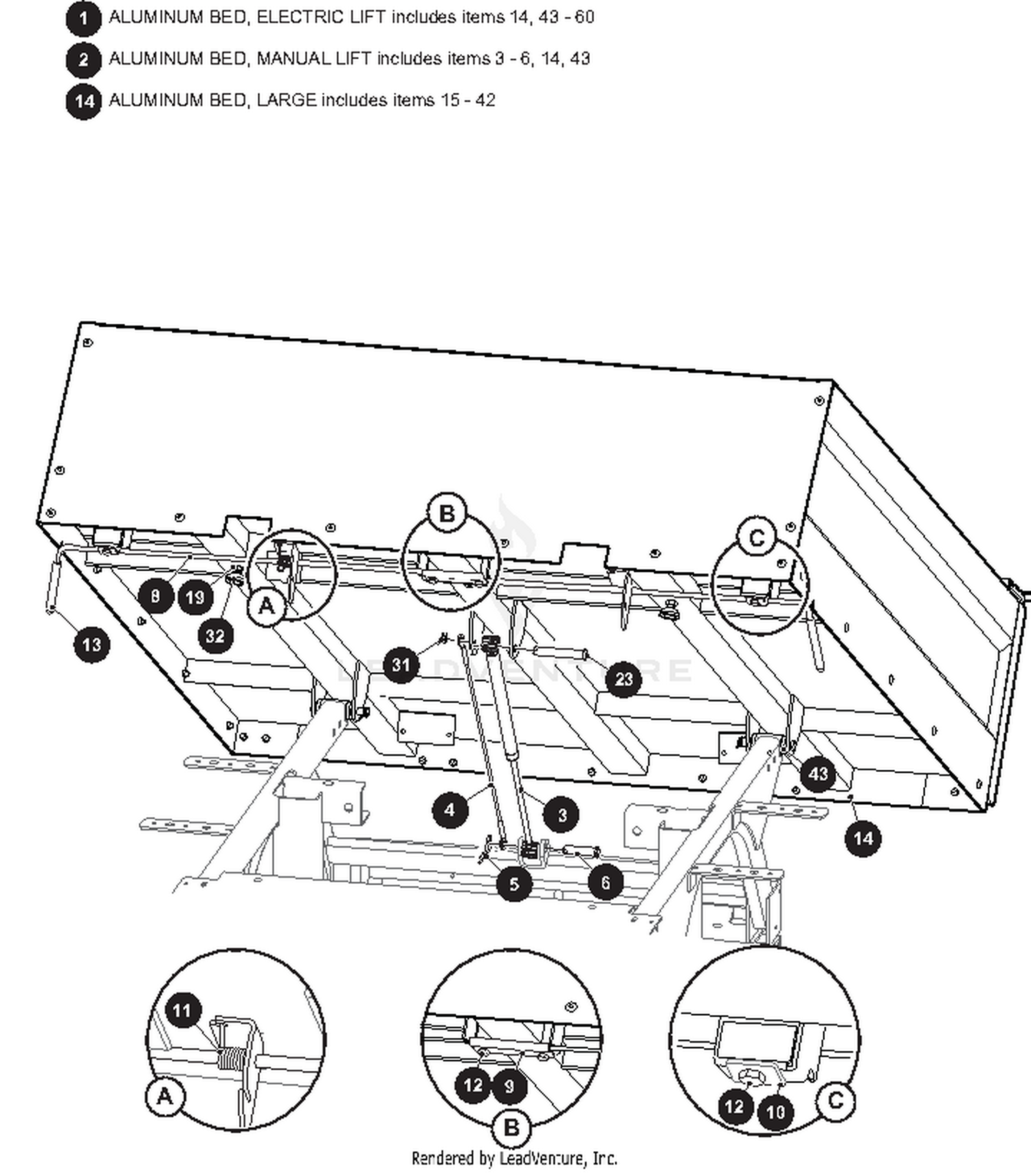

| Ref | Part Number | Description |
|---|
| 1 |
620482 |
ALUM BED ASSY, ELECTRIC LIFT Price: $1,811.95 |
| 2 |
620481 |
ALUM BED ASSY, MANUAL LIFT Not Available Price: |
| 3 |
71537G02 |
GAS SPRING Price: $91.99 |
| 4 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 5 |
21683G1 |
COTTER PIN, 15/32" X 2 1/16" Price: $2.99 |
| 6 |
14443G12 |
PIN CLEVIS 1/2 X 2.22 Price: $8.99 |
| 8 |
74962G01 |
BED LATCH Price: $185.99 |
| 9 |
71477G02 |
LATCH RETAINER BRACKET Price: $29.65 |
| 10 |
71099G02 |
LATCH PLATE, KEEPER Not Available Price: |
| 11 |
71538G01 |
TORSION SPRING, 1/2" DIA X 1" Price: $9.99 |
| 12 |
01118G01 |
HEX HEAD BOLT, 1/4-20 X 5/8 Price: $2.99 |
| 13 |
71704G01 |
HANDLE GRIP Price: $10.99 |
| 14 |
640568 |
BED ALUMINUM, LARGE This part replaces 612612. Price: $3,898.69 |
| 15 |
612957 |
PAN HEAD SCREW, #10-24 X1/2 Price: $0.99 |
| 16 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 17 |
612959 |
TRUSS HEAD TORX SCREW, 1/4-20 X 1/2 Price: $1.99 |
| 18 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 19 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 20 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 21 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 22 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 23 |
612965 |
CLEVIS PIN, 1/2" X 3" Price: $74.95 |
| 24 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 25 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 26 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 27 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 28 |
612970 |
TAILGATE Not Available Price: |
| 29 |
612971 |
PIVOT PIN,TAILGATE Price: $115.99 |
| 30 |
612972 |
TAILGATE HINGE, DRIVER SIDE Price: $108.99 |
| 31 |
612973 |
RUE RING PIVOT CLIP Price: $8.35 |
| 32 |
612974 |
LEVELLING PAD Price: $30.99 |
| 33 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 34 |
612976 |
DRAW LATCH ASSY Price: $18.99 |
| 35 |
612977 |
DRAW LATCH KEEPER Price: $6.99 |
| 36 |
612978 |
TAILGATE HINGE, PASS. SIDE Price: $115.99 |
| 37 |
614440 |
MAT RETAINER Price: $153.49 |
| 38 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 39 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 40 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 41 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 42 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 43 |
624030 |
FLANGED BUSHING, IGUS Price: $1.99 |
| 44 |
17618G1 |
NYLON CLAMP, 8" Price: $1.99 |
| 45 |
74165G02 |
CIRCUIT BREAKER MNTG BRACKET Price: $11.69 |
| 46 |
00150G4 |
SLOTTED SCREW, #10-24 X 1/2 Price: $2.18 |
| 47 |
00565G5 |
LOCK WASHER, #10 Price: $0.99 |
| 48 |
00526G3 |
HEX NUT, #10-24 Price: $0.99 |
| 49 |
27680G01 |
TOGGLE SWITCH, ELECTRIC DUMP Price: $36.63 |
| 50 |
27447G01 |
TOGGLE GUARD ASSY Price: $96.88 |
| 51 |
10570G9 |
DOMED RIVET,1/8, PULL-THRU Price: $1.99 |
| 52 |
25976G14 |
RED WIRE ASSY, #14GA Price: $1.01 |
| 53 |
14443G11 |
CLEVIS PIN, 1.88 Price: $11.99 |
| 54 |
27613G01 |
SPACER-.75O.D. X .50I.D. Price: $34.99 |
| 55 |
21683G1 |
COTTER PIN, 15/32" X 2 1/16" Price: $2.99 |
| 56 |
651950 |
HARNESS, ELECTRIC DUMP Price: $48.48 |
| 57 |
11845G3 |
CABLE CLIP Price: $4.99 |
| 58 |
00532G3 |
HEX NUT, 5/16-18 Price: $0.99 |
| 59 |
21320G3 |
CIRCUIT BREAKER, 30A, 12V Price: $37.99 |
| 60 |
27612G02 |
ELECTRIC ACTUATOR, 12V-1500# Price: $1,256.99 |
| 61 |
617805 |
DECAL,BBB METAL TAILGATE Price: Call Us |
