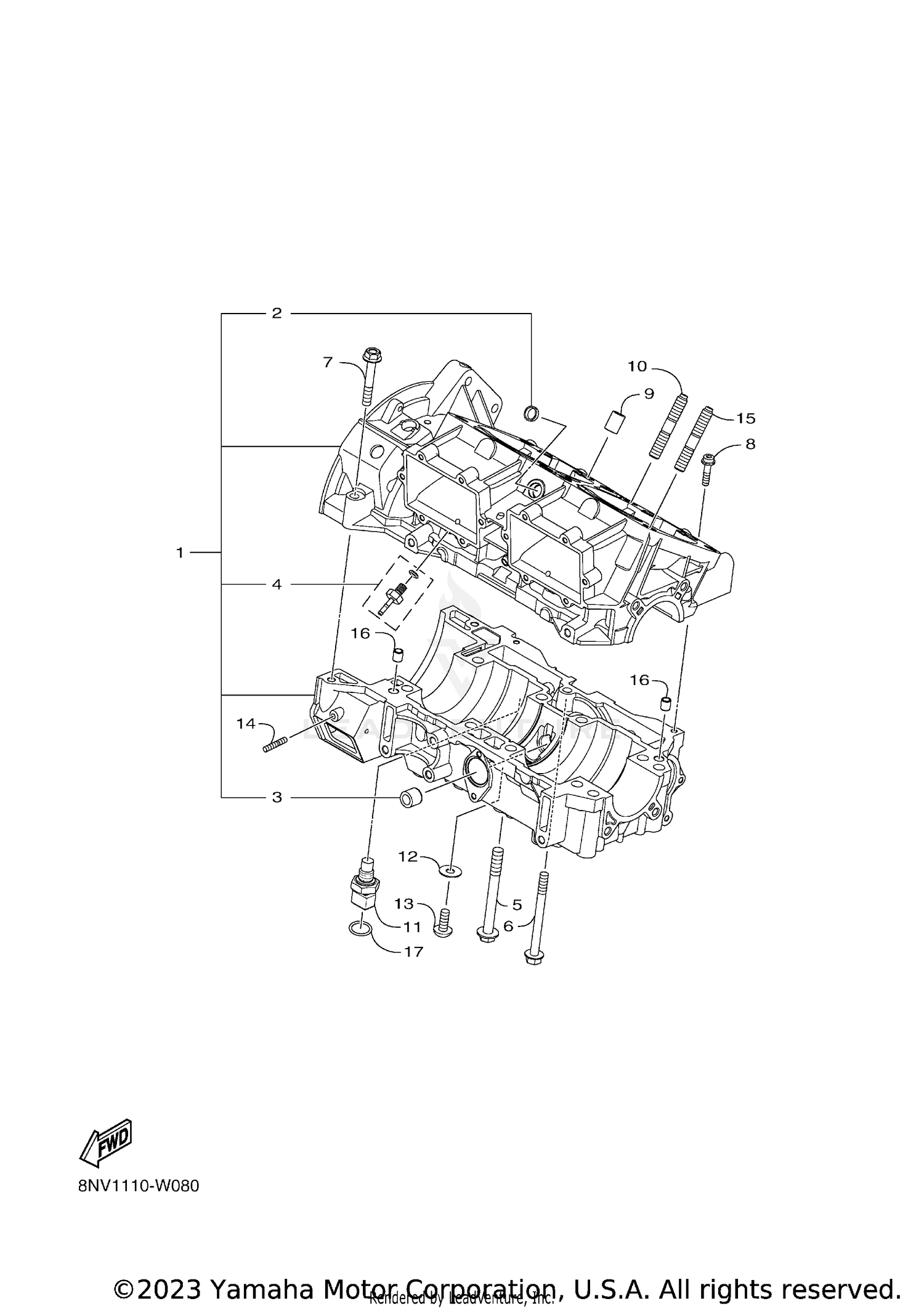

CRANKCASE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8NV-E5100-00-00 | CRANKCASE ASSY Price: $1,034.99 |
| 2 | 8ND-E1469-00-00 | PLUG Price: $2.65 |
| 3 | 8ND-E1466-00-00 | BUSH Price: $5.49 |
| 4 | 8NV-E5138-00-00 | NOZZLE 1 Price: $22.99 |
| 5 | 8ND-RA132-00-00 | BOLT, FLANGE This part replaces 8NV-RA132-10-00. Price: $6.49 |
| 6 | 8ND-RA136-00-00 | BOLT, FLANGE This part replaces 8NV-RA136-10-00. Price: $32.99 |
| 7 | 8ND-RA126-00-00 | BOLT, FLANGE This part replaces 8NV-RA126-10-00. Price: $4.05 |
| 8 | 8ND-RA138-00-00 | BOLT, FLANGE Price: $3.80 |
| 9 | 8ND-E3363-00-00 | ROLLER Price: $5.49 |
| 10 | 8ND-E1179-00-00 | BOLT, STUD This part replaces 8NV-E1179-10-00. Price: $15.49 |
| 11 | 8JP-H5790-00-00 | THERMOSENSOR ASSY Price: $27.99 |
| 12 | 8ND-E1173-00-00 | WASHER, SEALING Price: $5.49 |
| 13 | 8ND-RA250-00-00 | SCREW Price: $3.00 |
| 14 | 8ND-E1391-00-00 | BOLT, STUD 1 Price: $4.90 |
| 15 | 8NV-E1392-00-00 | BOLT, STUD 2 Price: $3.50 |
| 16 | 8ND-E3362-00-00 | ROLLER Price: $38.99 |
