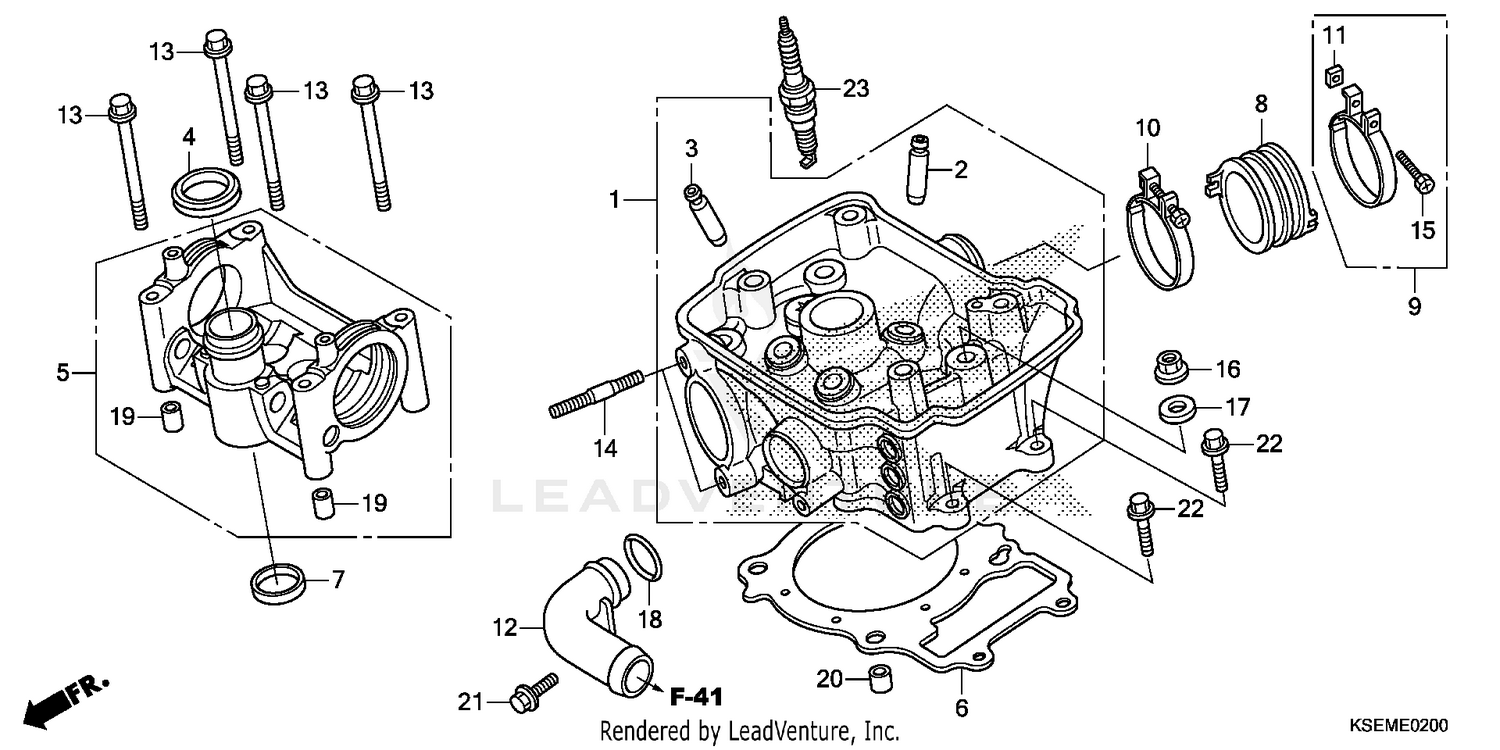

| Ref | Part Number | Description |
|---|
| 1 |
12200-KSE-A70 |
CYLINDER HEAD Price: $514.83 |
| 2 |
12204-KSE-P00 |
GUIDE, VALVE (OVER SIZE) Price: $15.04 |
| 3 |
12205-KSE-P00 |
GUIDE, EX. VALVE (OVER SIZE) Price: $16.29 |
| 4 |
12226-MEB-670 |
SEAL, RING Price: $3.85 |
| 5 |
12240-KSE-670 |
HOLDER, CAMSHAFT Price: $153.24 |
| 6 |
12251-KSE-671 |
GASKET, CYLINDER HEAD Price: $24.16 |
| 7 |
12395-KSE-670 |
GASKET, PLUG HOLE Price: $4.75 |
| 8 |
16210-KSE-670 |
INSULATOR, CARBURETOR Price: $12.87 |
| 9 |
16216-MCZ-000 |
BAND A, INSULATOR Price: $4.42 |
| 10 |
16218-MCW-000 |
BAND B, INSULATOR Price: $4.16 |
| 11 |
16222-MV4-300 |
NUT, SQUARE (5MM) (GQ51B C) Price: $2.45 |
| 12 |
19523-KSE-670 |
PIPE, WATER Price: $27.20 |
| 13 |
90003-KSE-670 |
BOLT, FLANGE (6X73) Price: $3.62 |
| 14 |
90004-KCW-851 |
BOLT, STUD (7X25) Price: $1.62 |
| 15 |
90023-MM5-000 |
BOLT, RECESSED (5X28) (GQ51B C) Price: $3.60 |
| 16 |
90202-KGB-610 |
NUT, FLANGE (8MM) Price: $1.27 |
| 17 |
90501-MK4-600 |
WASHER, PLAIN (8MM) Price: $4.80 |
| 18 |
91301-MY9-003 |
O-RING (15X2.5) Price: $2.73 |
| 19 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 20 |
94301-10160 |
PIN, DOWEL (10X16) (Honda Code 0058206) Price: $2.58 |
| 21 |
96001-06014-00 |
BOLT, FLANGE (6X14) Price: $1.88 |
| 22 |
96001-06022-00 |
BOLT, FLANGE (6X22) Price: $1.42 |
| 23 |
98059-58916 |
SPARK PLUG (CR8EH9) (NGK) Price: $9.86 |
| 23 |
98059-59916 |
SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926. Price: $9.86 |
