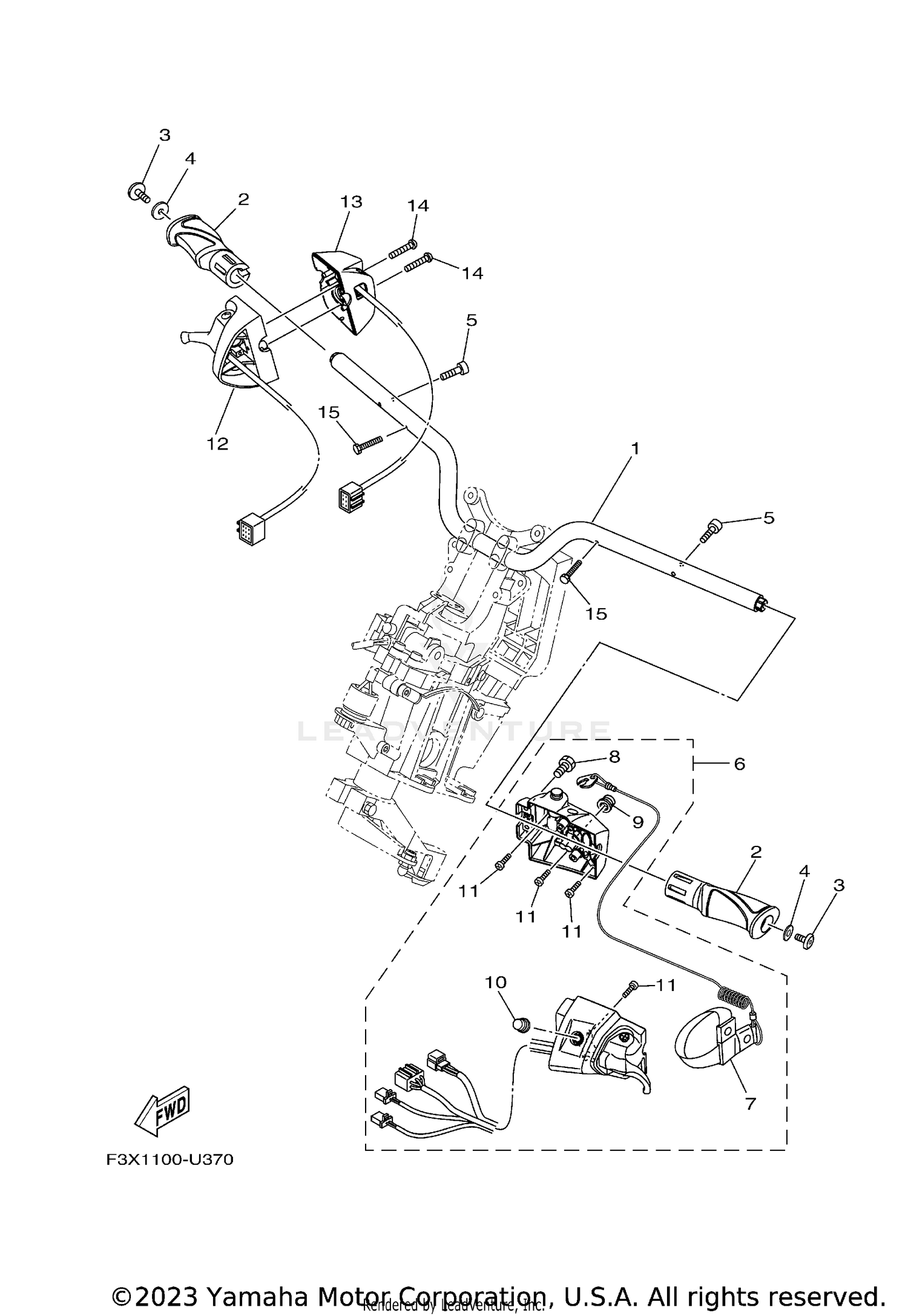

STEERING 1
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F3J-U1552-00-00 | HANDLE Price: $183.99 |
| 2 | F3P-U155D-11-00 | GRIP,HANDLE This part replaces F3P-U155D-10-00. Price: $24.99 |
| 3 | 90110-06383-00 | BOLT, HEXAGON SOCKET This part replaces 90110-06382-00. Price: $4.99 |
| 4 | 90201-068G0-00 | WASHER, PLATE Price: $2.99 |
| 5 | F2S-U1516-00-00 | BOLT Price: $7.99 |
| 6 | F3X-68310-03-00 | SWITCH BOX ASSY This part replaces F3X-68310-01-00. Price: $589.99 |
| 7 | EW2-68348-00-00 | LANYARD, STOP SWITCH Price: $37.49 |
| 8 | 6CS-6725F-00-00 | BOLT, THROTTLE Price: $5.99 |
| 9 | FK7-68312-02-00 | STOP BUTTON COMP Price: $13.99 |
| 10 | FK7-68313-02-00 | START BUTTON COMP. Price: $11.99 |
| 11 | 97780-30610-00 | SCREW, TAPPING Price: $1.49 |
| 12 | 6CS-14305-13-00 | THROTTLE LEVER COMP This part replaces 6CS-14305-10-00. Price: $700.99 |
| 13 | F3X-81860-00-00 | SWITCH ASSY Price: $197.99 |
| 14 | 6CS-6725F-00-00 | BOLT, THROTTLE Price: $5.99 |
