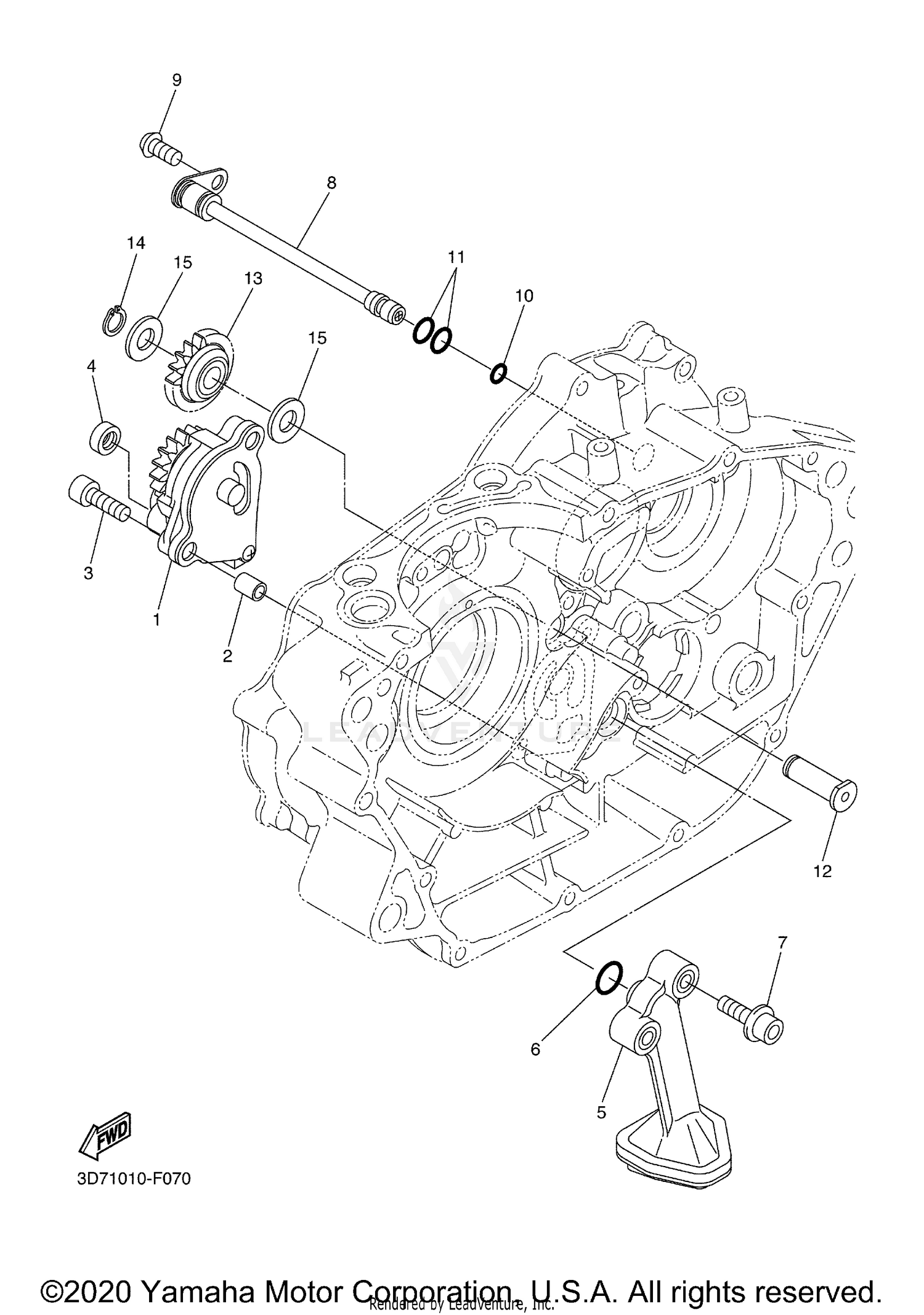

OIL PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3D7-13300-00-00 | OIL PUMP ASSY Price: $178.99 |
| 2 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 3 | 90110-06138-00 | BOLT This part replaces 91312-06030-00. Price: $6.49 |
| 4 | 90430-08178-00 | GASKET Price: $6.49 |
| 5 | 3D7-13410-00-00 | STRAINER HOUSING ASSY Price: $55.99 |
| 6 | 93210-12648-00 | O-RING Price: $10.49 |
| 7 | 90110-06172-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06173-00. Price: $10.49 |
| 8 | 3D7-13171-00-00 | PIPE, DELIVERY 2 Price: $69.99 |
| 9 | 90149-06081-00 | SCREW This part replaces 90149-06082-00. Price: $9.49 |
| 10 | 93210-07540-00 | O-RING This part replaces 93210-06564-00. Price: $7.49 |
| 11 | 93210-09350-00 | O-RING This part replaces 93210-09754-00. Price: $7.49 |
| 12 | 3D7-13342-00-00 | SHAFT, IDLE GEAR Price: $23.99 |
| 13 | 3D7-13341-00-00 | GEAR, OIL PUMP IDLE Price: $38.99 |
| 14 | 99009-10400-00 | CIRCLIP Price: $5.49 |
