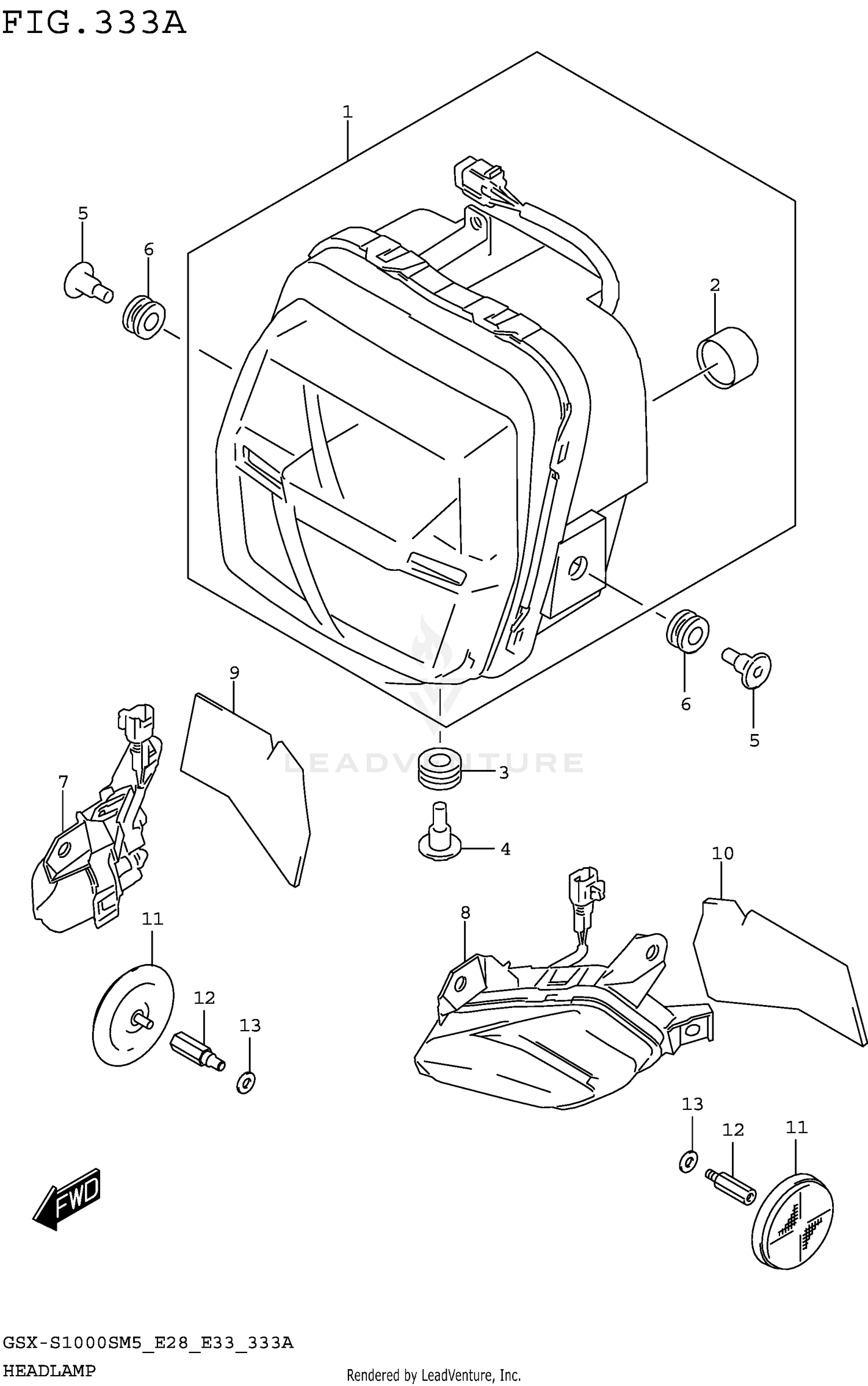

HEADLAMP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35100-07L02 | HEADLAMP ASSY Price: Call Us |
| 3 | 09320-10078 | CUSHION (10X20X10) Price: $5.14 |
| 4 | 09139-06118 | SCREW (6X22.5) Price: $4.12 |
| 5 | 09139-06206 | SCREW (6X20) Price: $4.04 |
| 6 | 09320-09501 | CUSHION (9X18X10) Price: $2.48 |
| 7 | 36101-07L00 | LAMP ASSY, FRONT POSITION RH Price: $279.57 |
| 8 | 36102-07L00 | LAMP ASSY, FRONT POSITION LH Price: $279.57 |
| 9 | 36121-07L00 | CUSHION, POSITION LAMP RH Price: $9.01 |
| 10 | 36122-07L00 | CUSHION, POSITION LAMP LH Price: $9.01 |
| 11 | 35950-13K01 | REFLEX REFLECTOR ASSY, FR SID Price: $15.40 |
| 12 | 09119-06109 | BOLT Price: $13.95 |
