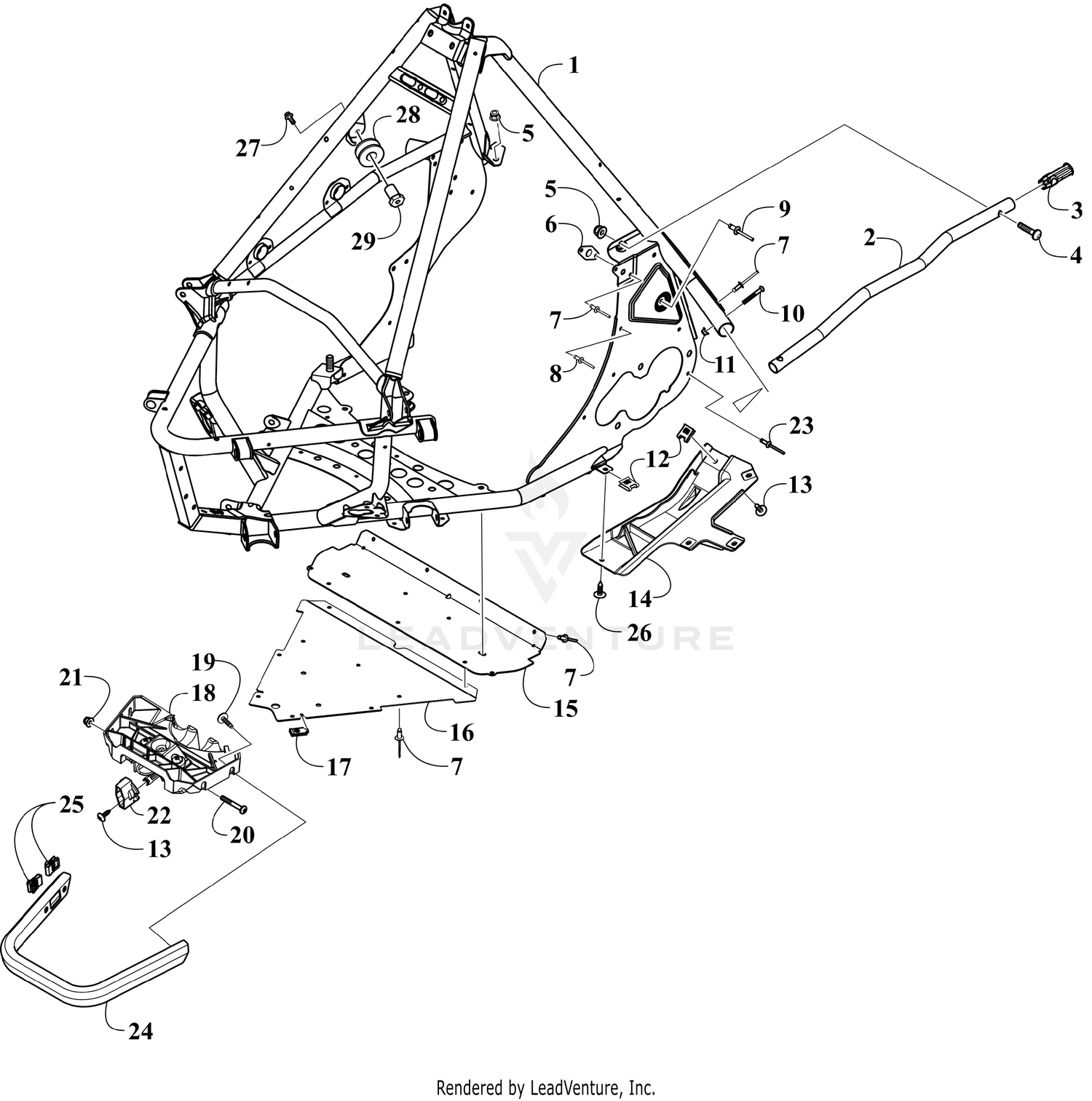

CHASSIS - FRONT FRAME [111270]

Ref	Part Number	Description
1	616-00066	Frame, Main - Black Price: $1,101.95
2	4707-483	Tube, Support - Frame - Black - Left Price: $28.95
3	2607-250	Insert, Support Tube Price: $2.99
4	2623-026	Screw, Machine Price: $1.80
5	8427-802	Nut, Lock Price: $0.58
6	0608-631	Plate, Retaining Price: $30.95
7	8060-686	Rivet - Zinc Price: $0.46
8	8060-706	Rivet Price: $0.46
9	1623-241	Rivet Price: $2.05
10	8468-535	Screw, Machine Price: $1.07
11	8427-502	Nut, Lock Price: $1.07
12	1623-939	Nut, U Price: $1.30
13	2623-163	Screw, Self-Tapping Price: $1.45
14	2607-066	Protector, Track - Drive - Right Price: $15.95
14	2607-067	Protector, Track - Drive - Left Price: $15.95
15	2607-097	Bellypan, Center - Stamped Price: $13.28
16	2607-114	Bellypan, Center - Stamped - Front Price: $46.95
17	1623-052	Clip, U-Nut Price: $1.08
18	6716-498	Latch, Hood - Assembly Price: $69.95
19	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
20	8468-645	Screw, Machine Price: $1.32
21	8427-603	Nut, Lock Price: $0.35
22	1616-268	Handle, Hood Latch Price: $3.00
23	8060-682	Rivet Price: $0.24
25	0423-577	Clip, U-Nut Price: $0.46
26	2623-166	Screw, Self-Tapping Price: $1.66
27	8413-617	Screw, Cap Price: $1.32
28	5606-160	Pulley, Recoil Price: $35.95
