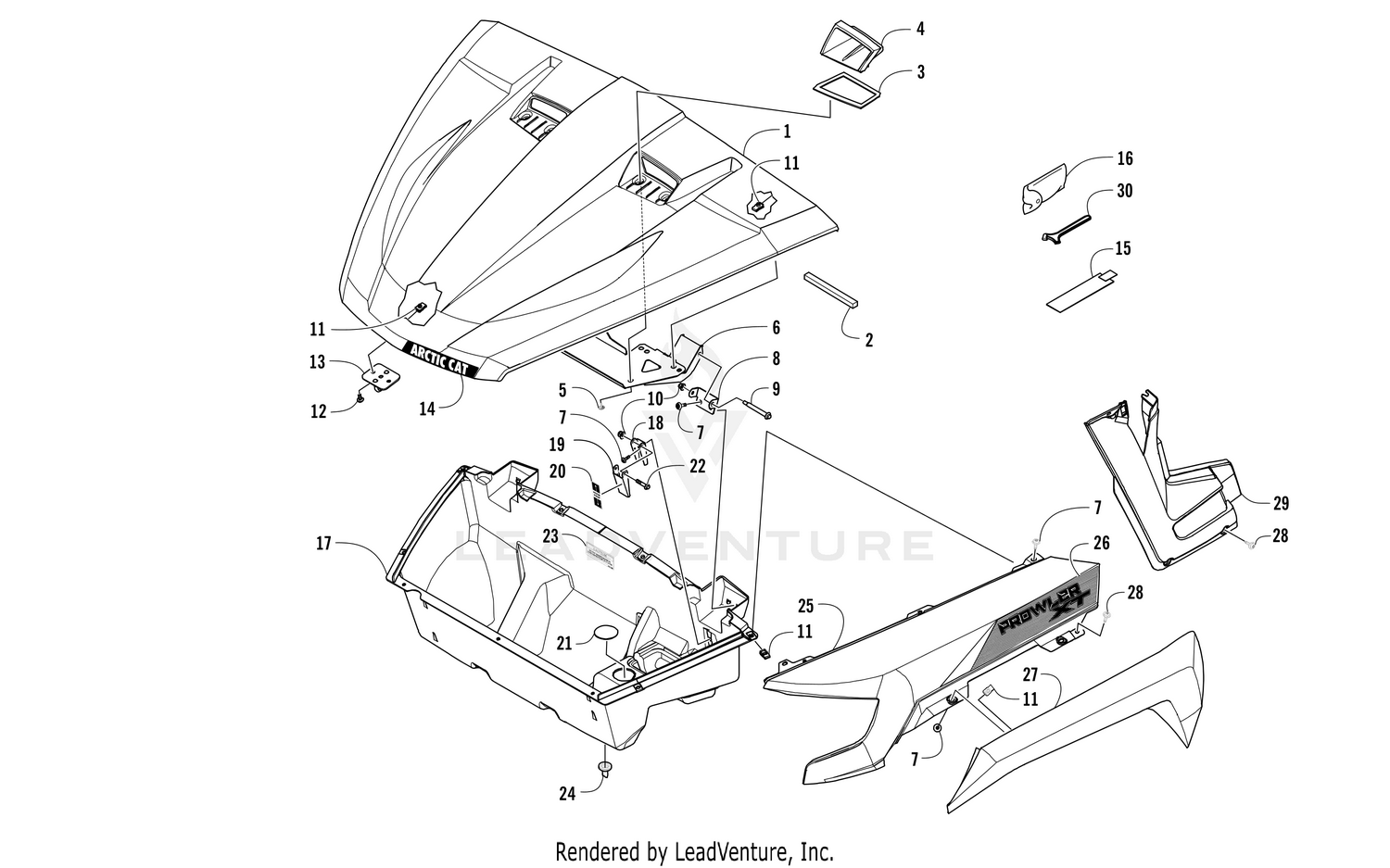

| Ref | Part Number | Description |
| 1 |
5506-976 |
Hood-Assembly - Red Price: $530.95 |
| 2 |
4406-886 |
Seal, Hood Price: $7.85 |
| 3 |
5406-014 |
Seal, Scoop - Right Price: $4.08 |
| 3 |
5406-015 |
Seal, Scoop - Left Price: $4.08 |
| 4 |
4406-620 |
Scoop, Hood - Right Price: $18.80 |
| 4 |
4406-621 |
Scoop, Hood - Left Price: $18.80 |
| 5 |
0623-797 |
Screw, Self-Tapping Price: $0.42 |
| 6 |
7506-173 |
Hinge, Hood Price: $177.95 |
| 7 |
0423-609 |
Screw, Machine Not Available Price: |
| 8 |
4406-828 |
Bracket, Hinge Pivot Price: $4.44 |
| 9 |
1423-289 |
SCREW,SHOULDER M6 X 1.0(8D X 60L) Price: $9.64 |
| 10 |
8427-602 |
Nut, Hex Price: $0.23 |
| 11 |
0423-577 |
Clip, U-Nut Price: $0.46 |
| 12 |
8477-616 |
Screw, Machine Price: $0.71 |
| 13 |
5506-906 |
Hook, Hood Latch Price: $21.96 |
| 14 |
4411-714 |
Decal, "Arctic Cat" Price: $3.76 |
| 15 |
0707-582 |
RETAINER, DRIVE BELT-VELCRO Price: $17.92 |
| 16 |
2516-863 |
Kit, Tool Price: $67.99 |
| 17 |
4406-615 |
Box, Storage - Front Price: $140.95 |
| 18 |
4406-696 |
Bracket, Lock Lever Price: $4.09 |
| 19 |
4406-829 |
Lock, Lever - Hood Price: $5.13 |
| 20 |
4411-970 |
Decal, Hood Prop Price: $5.23 |
| 21 |
0623-600 |
Plug Price: $5.09 |
| 22 |
1423-288 |
SCREW,SHOULDER M6 X 1.0(8D X 35L) Price: $20.16 |
| 23 |
4411-553 |
Decal, Caution - Load Capacity (25 lb) Price: $3.76 |
| 24 |
0470-442 |
VALVE, AIR CLEANER Price: $14.25 |
| 25 |
5506-952 |
Fender, Inner Front - Right - Red Price: $196.51 |
| 25 |
5506-953 |
Fender, Inner Front- Left - Red Price: $210.95 |
| 26 |
5411-652 |
Decal, Inner Front- Side - Right - Red Price: $47.95 |
| 26 |
5411-653 |
Decal, Inner Front - Side - Left - Red Price: $46.95 |
| 27 |
5506-954 |
Fender, Outer Front - Right - Red Price: $168.95 |
| 27 |
5506-955 |
Fender, Outer Front - Left - Red Price: $168.95 |
| 28 |
1423-198 |
SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK Price: $1.08 |
| 29 |
4406-610 |
Panel, Side - Right Price: $48.95 |
| 29 |
4406-611 |
Panel, Side - Left Price: $48.95 |
