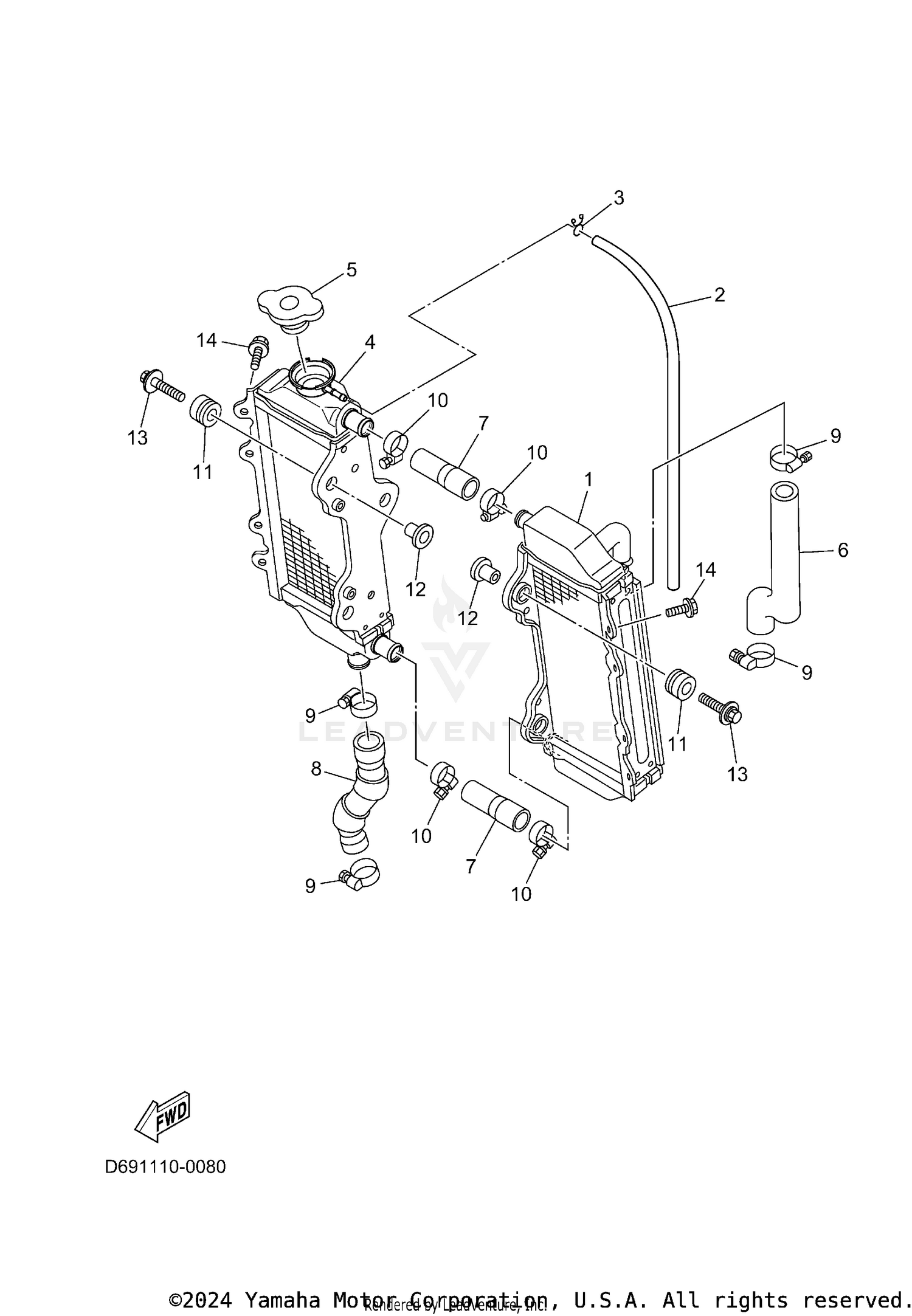

RADIATOR & HOSE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | D69-1240A-00-00 | RADIATOR ASSY Price: $194.99 |
| 2 | BHR-12463-00-00 | PIPE, BREATHER Price: $6.49 |
| 3 | 90467-08003-00 | CLIP, SCISSOR Price: $11.49 |
| 4 | D69-12461-00-00 | RADIATOR COMP Price: $194.99 |
| 5 | 5SL-12462-01-00 | CAP, RADIATOR This part replaces 5SL-12462-00-00. Price: $35.99 |
| 6 | BCR-12481-00-00 | PIPE 1 Price: $16.49 |
| 7 | D69-12482-00-00 | PIPE 2 Price: $8.49 |
| 8 | 1P8-12484-00-00 | PIPE 4 Price: $24.99 |
| 9 | 90450-28001-00 | HOSE CLAMP ASSY Price: $16.49 |
| 10 | 90450-22M14-00 | HOSE CLAMP ASSY This part replaces 90450-25001-00. Price: $16.99 |
| 11 | 90480-15528-00 | GROMMET Price: $9.49 |
| 12 | 90387-06065-00 | COLLAR Price: $13.49 |
| 13 | 90119-06262-00 | BOLT, WITH WASHER Price: $9.49 |
