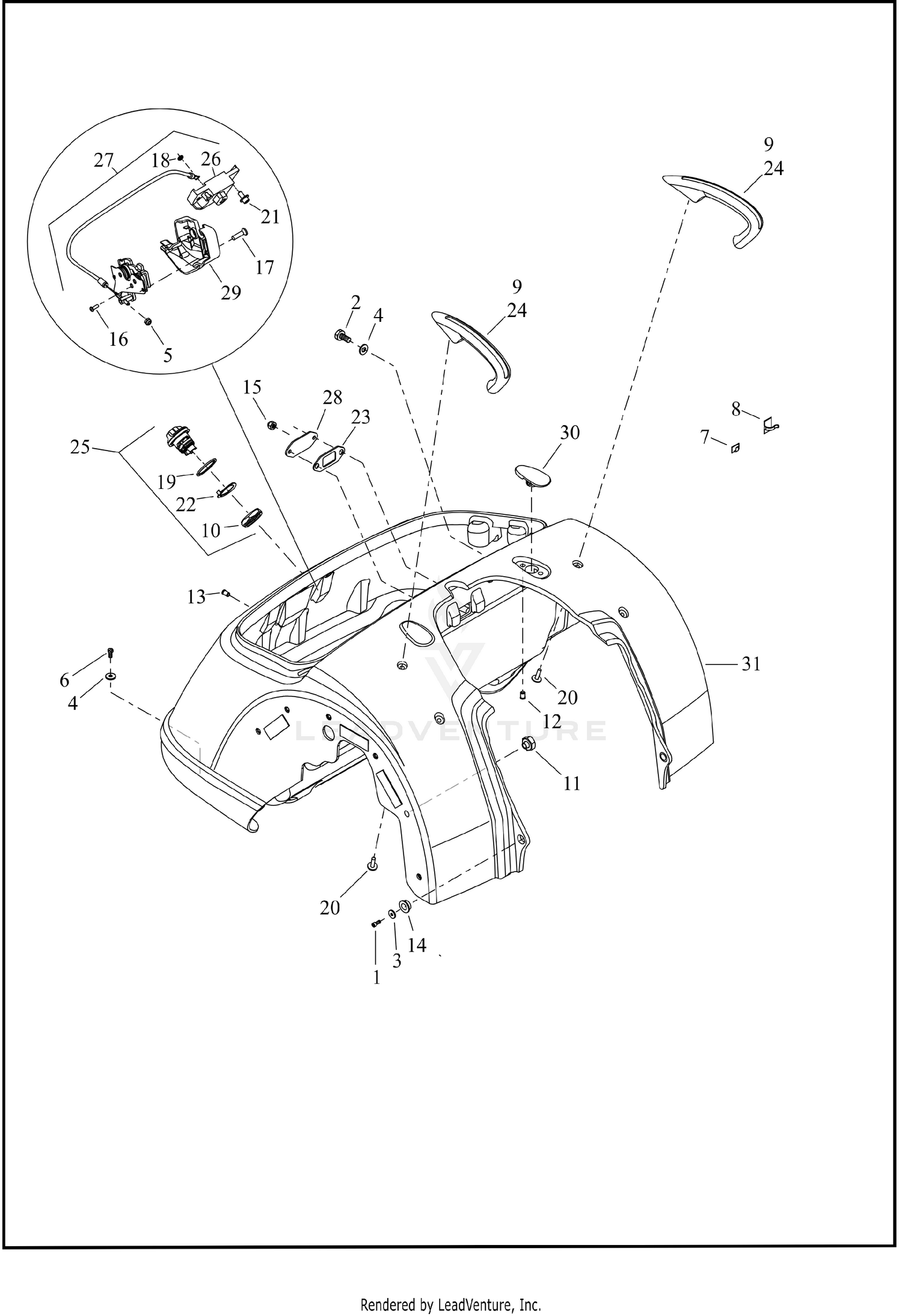

BODY ASSEMBLY - FLTRT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2708A | SCREW,HEX SCKT HD/LOCK Price: $1.82 |
| 2 | 3445 | SCREW HX CAP-PATCH Price: $0.59 |
| 3 | 6116 | WASHER,X Price: $0.59 |
| 4 | 6645 | WASHER Price: $1.22 |
| 5 | 7624 | NUT,HEX LOCK Price: $1.22 |
| 6 | 8369 | SCREW,HEX CAP Price: $4.71 |
| 10 | 90300103 | NUT,FLAT,1X12 UNF Price: $3.73 |
| 15 | 90844-80 | NUT,ACORN Price: $2.45 |
| 16 | 10200220 | SCREW,TORX PAN Price: $0.55 |
| 17 | 10200338 | SCREW,X Price: $1.42 |
| 18 | 12200102 | RETAINING RING Price: $2.35 |
| 20 | 12600105 | HDW,MISC,X Price: $3.12 |
| 21 | 12600106 | HDW,MISC,X Price: $2.68 |
